查看完整课程大家好，这里是 Lucifer三思而后行，专注于提升数据库运维效率。
本章目标：掌握本章核心知识点 前置要求：完成前序章节学习 预计时长：60 分钟
上两周，偶然看到小墨发布的 墨天轮智能巡检v2.3发布，适配Oracle PDB并支持12c-23ai，想起之前也使用过白求恩。于是，抱着好奇的心态，看了一下新版更新了哪些功能。

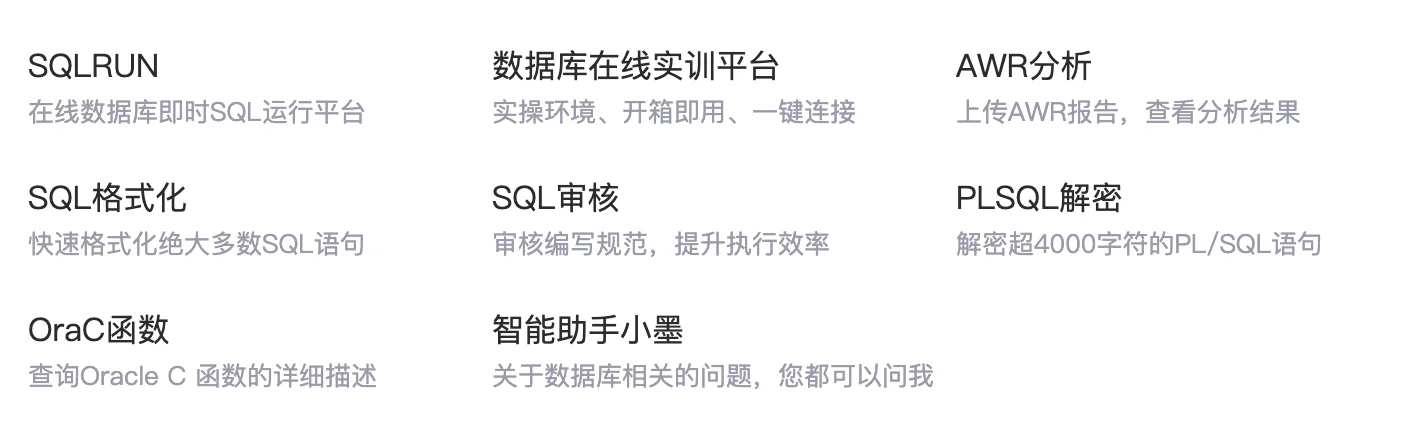

Oracle 数据库智能巡检是从 2018 年就立项的，很快就在墨天轮社区上线开通了这个功能。据说至今已经为大家生成了 1800 多份巡检报告。除了智能巡检外，还推出了 SQL 格式化、SQL 静态审核、PL/SQL 解密、AWR 分析、数据库实训环境、数据库 SQL 运行平台，数据库 AI 智能问答助手。
最近墨天轮智能巡检发布了新版本，新增特性如下：
CDB_ 视图采集、并适配 10g、11g 老版本优化调整：
修复BUG：
智能巡检工具下载十分简单，打开 墨天轮智能巡检 即可跳转：
支持 Oracle、PostgreSQL 和 MySQL 三种类型的数据库：

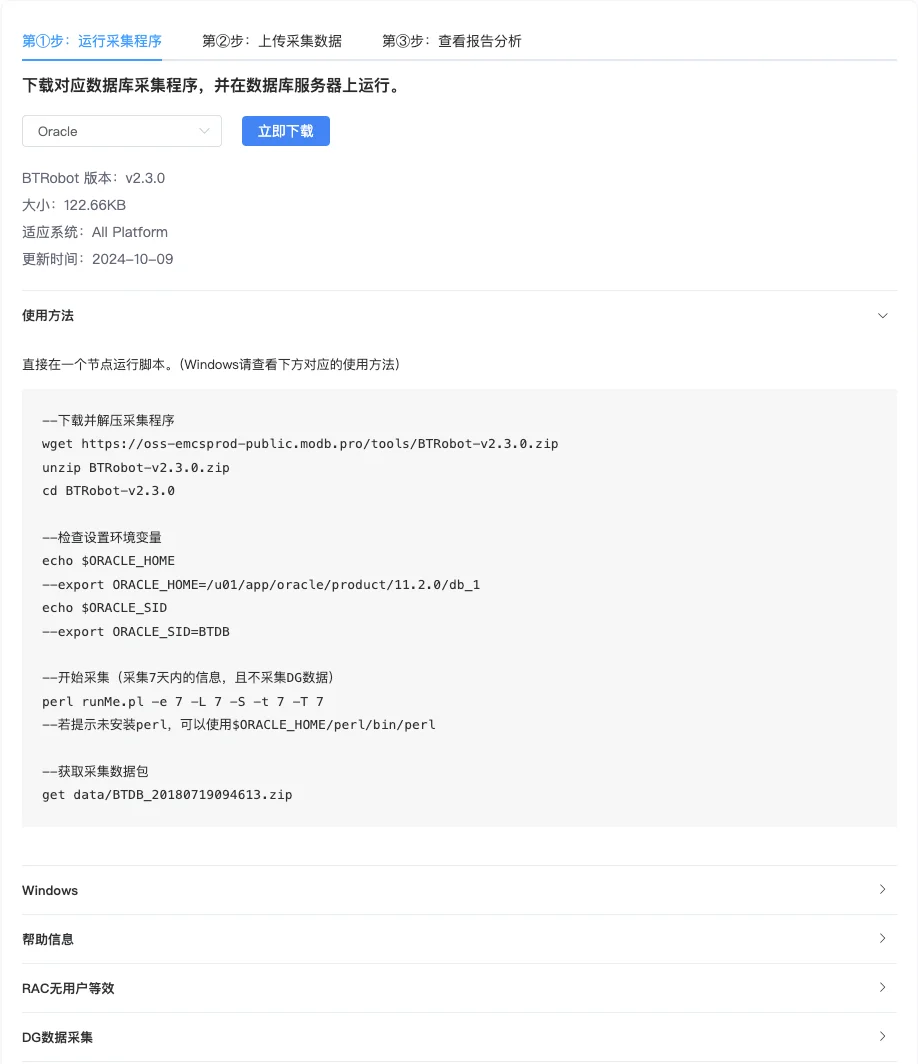

这里我以 Oracle 为例，下载对应的采集程序：BTRobot-v2.3.0.zip，如果主机可以联网，还可以使用 wget 直接获取：
1wget https://oss-emcsprod-public.modb.pro/tools/BTRobot-v2.3.0.zip下载完成后，直接上传到对应的数据库主机即可。
在开始操作前，需要先解压采集程序包：
1## root 用户授权2[root@oracle11g:/root]# chown oracle:oinstall /home/oracle/BTRobot-v2.3.0.zi34## oracle 用户解压5[oracle@oracle11g:/home/oracle]$ unzip -q BTRobot-v2.3.0.zip67## 进入解压文件夹8[oracle@oracle11g:/home/oracle]$ cd BTRobot-v2.3.09[oracle@oracle11g:/home/oracle/BTRobot-v2.3.0]$ ls10conf data lib ReadMe_CN.txt ReadMe_EN.txt runMe.pl执行巡检命令前，需要先检查一下数据库的环境变量是否设置：
1## 检查设置环境变量，如果没有设置，需要先设置环境变量2[oracle@oracle11g:/home/oracle]$ echo $ORACLE_HOME3/u01/app/oracle/product/11.2.0/db4[oracle@oracle11g:/home/oracle]$ echo $ORACLE_SID5lucifer67## 确保 perl 命令存在8[oracle@oracle11g:/home/oracle/BTRobot-v2.3.0]$ type perl9perl is /u01/app/oracle/product/11.2.0/db/perl/bin/perl执行采集：
1## 默认 -S 不会采集 DG 信息，若需采集 DG 信息，请去掉 -S 参数，并在 DG 库按照提示执行语句2[oracle@oracle11g:/home/oracle/BTRobot-v2.3.0]$ perl runMe.pl -e 7 -L 7 -S -t 7 -T 7311:53:38 runMe: Running in Local Mode411:53:38 runMe: Library [/u01/app/oracle/product/11.2.0/db/lib32:/u01/app/oracle/product/11.2.0/db/lib:.]511:53:38 runMe: Perl Lib [/u01/app/oracle/product/11.2.0/db/perl/lib:/u01/app/oracle/product/11.2.0/db/perl/lib/site_perl:./lib:/u01/app/oracle/product/11.2.0/db/perl/lib]611:53:38 runMe: Get Perl [/u01/app/oracle/product/11.2.0/db/perl/bin/perl]711:53:38 parseArgs: Parse Arguments811:53:38 parseArgs: OPTION: OS Error Collect Day [7]911:53:38 parseArgs: OPTION: Log History Limit [7]1011:53:38 parseArgs: OPTION: not Collect DG Data1111:53:38 parseArgs: OPTION: Alert Collect Day [7]1211:53:38 parseArgs: OPTION: Listener Collect Day [7]1311:53:38 checkENV: OS Type : [linux]1411:53:38 checkENV: OS Hostname : [oracle11g]1511:53:38 checkENV: OS HostIP : [192.168.6.60]1611:53:38 checkENV: OS Login User (ENV:USER): [oracle]1711:53:38 checkENV: Check Running Environments1811:53:38 checkENV: Script Version: [2.3.0]1911:53:38 checkENV: Oracle SID: [lucifer]2011:53:38 checkENV: Oracle Home: [/u01/app/oracle/product/11.2.0/db]2111:53:38 checkENV: Library Path: [/u01/app/oracle/product/11.2.0/db/lib32:/u01/app/oracle/product/11.2.0/db/lib]2211:53:38 checkENV: Oracle Version [11]2311:53:38 getBasic: Test DB Logging2411:53:38 connDB: Get DB Character Set [UTF8], Session Reconnected2511:53:38 getBasic: Check DB Privilege for [sys]2611:53:39 getBasic: Get DB Basic Information2711:53:39 getBasic: DBID: [4034009431]2811:53:39 getBasic: DB Name: [LUCIFER]2911:53:39 getBasic: Unique Name: [lucifer]3011:53:39 getBasic: Role: [PRIMARY]3111:53:39 getBasic: Time: [20241023115339]3211:53:39 getBasic: Language: [AMERICAN_AMERICA.AL32UTF8]3311:53:39 getBasic: OS Time: [2024-10-16 11:53:39]3411:53:39 getBasic: Alert Time: [2024-10-16 11:53:39]3511:53:39 getBasic: Listener Time: [2024-10-16 11:00:00]3611:53:39 getBasic: Minimum Snap: [956]3711:53:39 getBasic: Read OS-Instance Mapping from DB3811:53:39 getBasic: Instance Count: 13911:53:39 getBasic: OS-Inst mapping item (Single): [oracle11g] ==> [1.lucifer]4011:53:39 checkEncode: Set OS Character [UTF8]4111:53:39 checkEncode: Set Alert Character [UTF8]4211:53:39 checkEncode: Set Listener Character [UTF8]4311:53:39 checkDIR: Parse and Check Result Directory4411:53:39 checkDIR: Result Directory Set to [data/LUCIFER_20241023115339]4511:53:39 checkDIR: Check Free Space of Result Directory4611:53:39 checkDIR: Result Directory Free Space [76882 MB)], Meet Requirement4711:53:39 checkASM: no ASM instance found for Unix4811:53:39 checkSSH: for Non-RAC Database, No Need to Check SSH Equivalent4911:53:39 selfMonitor: Start Self-Monitor [7069]5011:53:39 Monitor: Monitor Get Parent Process [7069]5111:53:42 collectDB: Collect Data for [BX_MD_DB_SYSTEM]5211:53:42 getALoc: Get Alert Locations5311:53:42 getALoc: Get DB Alert [/u01/app/oracle/diag/rdbms/lucifer/lucifer/trace/alert_lucifer.log] for Node [oracle11g]5411:53:42 cltNodRes: Begin Node Resources Collection5511:53:42 openSocket: Open Socket to Collect Node Resources5611:53:42 openSocket: Started Listen on Port [12345]5711:53:42 cltNodRes: Starting Collection Robot on Local [oracle11g]5811:53:42 cltNodRes: Current Node IP Address [192.168.6.60]5911:53:42 cltNodRes: Do Nothing Mode [MANUAL]6011:53:42 cltNodRes: Loop to read node resource informations6111:53:42 openSocket: HOSTNAME -> Connected to Node [127.0.0.1]6211:53:42 NodeRobot: oracle11g -> Host Name [oracle11g]6311:53:42 NODE_PARAMS: oracle11g -> Node Parameters have been sent Remote6411:53:42 selfMonitor: oracle11g -> Start Self-Monitor [7081]6511:53:42 Monitor: oracle11g -> Monitor Get Parent Process [7081]6611:53:45 NodeRobot: oracle11g -> Collect Node Resources for [oracle11g]6711:53:45 Checker: oracle11g -> Check Passed for [oracle11g]6811:53:45 NodeRobot: oracle11g -> Node Check Passed in Primary Node6911:53:45 osMemory: oracle11g -> Begin Memory Collection7011:53:45 osMemory: oracle11g -> Complete Memory Collection7111:53:45 osInstance: oracle11g -> Begin Extra-Instance Collection7211:53:45 osInstance: oracle11g -> Search Extra-Instance for Linux/Unix7311:53:45 osInstance: oracle11g -> Extra-Instance List : lucifer7411:53:45 osInstance: oracle11g -> Checker for: [lucifer] [/u01/app/oracle/product/11.2.0/db]7511:53:45 osInstance: oracle11g -> Collection for: [lucifer] [/u01/app/oracle/product/11.2.0/db]7611:53:45 connDB: oracle11g -> Get DB Character Set [UTF8], Session Reconnected7711:53:45 collectDB: oracle11g -> Collect Data for [RD_DB_EXTINST]7811:53:45 sendFile: oracle11g -> Sending Result File [./nirvana_db_extInst.txt]7911:53:45 sendFile: oracle11g -> File Sending Completed8011:53:45 osInstance: oracle11g -> Complete Extra-Instance Collection8111:53:45 osError: oracle11g -> Begin OS Error Collection8211:53:45 Warn: oracle11g -> No Permision to Read Linux Error Log8311:53:45 osError: oracle11g -> Complete OS Error Collection8411:53:45 osCrontab: oracle11g -> Begin OS Crontab Collection8511:53:45 osCrontab: oracle11g -> Complete OS Crontab Collection8611:53:45 osAlert: oracle11g -> Begin Alert Collection8711:53:45 osAlert: oracle11g -> Collect Alert [/u01/app/oracle/diag/rdbms/lucifer/lucifer/trace/alert_lucifer.log] for Instance [lucifer]8811:53:45 osAlert: oracle11g -> Finding Position of [2024-10-16 11:53:39], File Size is [266177]8911:53:45 osAlert: oracle11g -> Read Alert from [256398], Size is [9.55 KB]9011:53:45 osAlert: oracle11g -> Expand Error Message Range9111:53:45 osAlert: oracle11g -> Read Alert Contents9211:53:45 osAlert: oracle11g -> Begin Transfer Trace [lucifer_j001_2586.trc]9311:53:45 osAlert: oracle11g -> Complete Alert Collection9411:53:45 osBasic: oracle11g -> Begin OS Information Collection9511:53:45 osBasic: oracle11g -> Complete OS Information Collection9611:53:45 osNIC: oracle11g -> Begin OS NIC Collection9711:53:45 osNIC: oracle11g -> Collect NIC Info by [ifconfig -a]9811:53:45 osNIC: oracle11g -> Complete OS NIC Collection9911:53:45 osParameter: oracle11g -> Begin OS Parameter Collection10011:53:45 osParameter: oracle11g -> Complete OS Parameter Collection10111:53:45 osFS: oracle11g -> Begin Disk Collection10211:53:45 osFS: oracle11g -> Complete Disk Collection10311:53:45 cltStatus: oracle11g -> Begin Listener Status Collection10411:53:45 cltStatus: oracle11g -> Get Running Listener Info10511:53:45 cltStatus: oracle11g -> Get Listener [LISTENER] PATH [/u01/app/oracle/product/11.2.0/db]10611:53:45 cltStatus: oracle11g -> Collect Listener Status10711:53:45 cltStatus: oracle11g -> Complete Listener Status Collection10811:53:45 osListener: oracle11g -> Begin Listener Collection10911:53:45 osListener: oracle11g -> Collect listener log [/u01/app/oracle/diag/tnslsnr/oracle11g/listener/trace/listener.log]11011:53:45 osListener: oracle11g -> Check File Encoding11111:53:45 osListener: oracle11g -> Check Result: Lines = [16405] Warns = [0]11211:53:45 osListener: oracle11g -> Finding Position of [2024-10-16 11:00:00], File Size is [650765]11311:53:45 osListener: oracle11g -> Read Log from [621424], Size is [28 KB]11411:53:45 osListener: oracle11g -> Reading Listener Log11511:53:45 osListener: oracle11g -> Complete Listener Collection11611:53:45 cltConfig: oracle11g -> Begin Oracle Network Config Collection11711:53:46 cltConfig: oracle11g -> Complete Oracle Network Config Collection11811:53:46 osHosts: oracle11g -> Begin OS Hosts Collection11911:53:46 osHosts: oracle11g -> Hosts File Location [/etc/hosts]12011:53:46 osHosts: oracle11g -> Complete OS Hosts Collection12111:53:46 osOPatch: oracle11g -> Begin Oracle Patch Collection12211:53:48 osOPatch: oracle11g -> Complete Oracle Patch Collection12311:53:48 COMPLETE: oracle11g -> Collection Completed12411:53:48 Monitor: oracle11g -> Stop Monitor Process [7082]12511:53:48 cltNodRes: Complete Node Resources Collection12611:53:48 cltDGDat: Collect DG Data12711:53:48 cltDGDat: User Request not Collect DG Data12811:53:48 collectDB: Use SQL Statement for DB Version [11]12911:53:48 collectDB: Collect Data for [RD_DB_TFILE]13011:53:48 collectDB: Collect Data for [RD_DB_AWR_TIMEMODEL]13111:53:48 collectDB: Collect Data for [RD_DB_LOGFILE]13211:53:48 collectDB: Collect Data for [RD_DB_USER]13311:53:48 collectDB: Use SQL Statement for DB Version [11]13411:53:48 collectDB: Collect Data for [RD_DB_TS]13511:53:48 collectDB: Collect Data for [RD_DB_OBJ]13611:53:48 collectDB: Collect Data for [RD_DB_AWR_SYSSTAT]13711:53:48 collectDB: Use SQL Statement for DB Version [11]13811:53:48 collectDB: Collect Data for [RD_DB_CONTAINER]13911:53:48 collectDB: Collect Data for [RD_DB_AWR_INSTANCE]14011:53:48 collectDB: Collect Data for [RD_DB_ASMDSK]14111:53:48 collectDB: Use SQL Statement for DB Version [11]14211:53:48 collectDB: Collect Data for [RD_DB_INST]14311:53:48 collectDB: Collect Data for [RD_DB_BAKSET]14411:53:49 collectDB: Collect Data for [RD_DB_ROLE]14511:53:49 collectDB: Use SQL Statement for DB Version [11]14611:53:49 collectDB: Collect Data for [RD_DB_PROPS]14711:53:49 collectDB: Collect Data for [RD_DB_REGISTRY]14811:53:49 collectDB: Collect Data for [RD_DB_DICTSTAT]14911:53:49 collectDB: Collect Data for [RD_DB_JOB]15011:53:49 collectDB: Collect Data for [RD_DB_LINKS]15111:53:49 collectDB: Collect Data for [RD_DB_AWR_RESLIMIT]15211:53:49 collectDB: Collect Data for [RD_DB_SYSUSER]15311:53:49 collectDB: Collect Data for [RD_DB_SPPAR]15411:53:49 collectDB: Use SQL Statement for DB Version [11]15511:53:49 collectDB: Collect Data for [RD_DB_DFILE]15611:53:49 collectDB: Collect Data for [RD_DB_AWR_SGA]15711:53:49 collectDB: Collect Data for [RD_DB_AWR_SNAPSHOT]15811:53:49 collectDB: Collect Data for [RD_DB_SYSPRIV]15911:53:49 collectDB: Collect Data for [RD_DB_AWR_CONTROL]16011:53:49 collectDB: Collect Data for [RD_DB_TRIGGER]16111:53:49 collectDB: Collect Data for [RD_DB_AWR_OSSTAT]16211:53:49 collectDB: Use SQL Statement for DB Version [11]16311:53:49 collectDB: Collect Data for [RD_DB_SCHEDULER]16411:53:49 collectDB: Collect Data for [RD_DB_PAR]16511:53:49 collectDB: Collect Data for [RD_DB_BAKFILE]16611:53:49 collectDB: Collect Data for [RD_DB_BAKSPFILE]16711:53:49 collectDB: Collect Data for [RD_DB_ROLEPRIV]16811:53:49 collectDB: Collect Data for [RD_DB_SCN]16911:53:49 collectDB: Collect Data for [RD_DB_AWR_TOPEVENT]17011:53:49 collectDB: Collect Data for [RD_DB_PROFILE]17111:53:49 collectDB: Collect Data for [RD_DB_LOGHIST]17211:53:49 collectDB: Collect Data for [RD_DB_DSKGRP]17311:53:49 collectDB: Collect Data for [RD_DB_REGHIST]17411:53:49 collectDB: Collect Data for [RD_DB_BAKARCH]17511:53:49 collectDB: Use SQL Statement for DB Version [11]17611:53:49 collectDB: Collect Data for [RD_DB_SEGSUMM_SIZE]17711:53:50 collectDB: Collect Data for [RD_DB_TOPSEGS]17811:53:50 collectDB: Use SQL Statement for DB Version [11]17911:53:50 collectDB: Collect Data for [RD_DB_INFO]18011:53:50 collectDB: Collect Data for [RD_DB_LOG]18111:53:50 cltAWRSqlS: Collect AWR SQL Statistics18211:53:50 cltAWRSqlT: Collect AWR SQL Text18311:53:50 cltAWRSqlP: Collect AWR SQL Plan18411:53:50 collectDB: Collect Data for [RD_DB_AWR_SQLPLAN]18511:53:50 collectDB: Collect Data for [RD_DB_AWR_SQLPLAN]18611:53:51 cltAWRSqlO: Collect AWR SQL Objects18711:53:51 cltAWRSqlO: Collect Table-Related Informations18811:53:51 cltAWRSqlO: Collect Table for [APEX_030200], Size [1]18911:53:51 collectDB: Collect Data for [RD_DB_TABLES]19011:53:51 collectDB: Collect Data for [RD_DB_COLUMNS]19111:53:51 collectDB: Collect Data for [RD_DB_TABPART]19211:53:51 collectDB: Collect Data for [RD_DB_TABSUBPART]19311:53:51 cltAWRSqlO: Collect Table for [CTXSYS], Size [1]19411:53:51 collectDB: Collect Data for [RD_DB_TABLES]19511:53:51 collectDB: Collect Data for [RD_DB_COLUMNS]19611:53:51 collectDB: Collect Data for [RD_DB_TABPART]19711:53:51 collectDB: Collect Data for [RD_DB_TABSUBPART]19811:53:51 cltAWRSqlO: Collect Table for [SYSTEM], Size [2]19911:53:51 collectDB: Collect Data for [RD_DB_TABLES]20011:53:51 collectDB: Collect Data for [RD_DB_COLUMNS]20111:53:51 collectDB: Collect Data for [RD_DB_TABPART]20211:53:51 collectDB: Collect Data for [RD_DB_TABSUBPART]20311:53:51 cltAWRSqlO: Collect Table for [DBSNMP], Size [3]20411:53:51 collectDB: Collect Data for [RD_DB_TABLES]20511:53:51 collectDB: Collect Data for [RD_DB_COLUMNS]20611:53:51 collectDB: Collect Data for [RD_DB_TABPART]20711:53:51 collectDB: Collect Data for [RD_DB_TABSUBPART]20811:53:51 cltAWRSqlO: Collect Index-Related Informations20911:53:51 cltAWRSqlO: Collect Index for [FLOWS_FILES], Size [1]21011:53:51 collectDB: Collect Data for [RD_DB_INDEXES]21111:53:51 collectDB: Collect Data for [RD_DB_INDCOL]21211:53:51 collectDB: Collect Data for [RD_DB_INDPART]21311:53:51 collectDB: Collect Data for [RD_DB_INDSUBPART]21411:53:51 collectDB: Collect Data for [RD_DB_INDEXP]21511:53:51 cltAWRSqlO: Collect Index for [APEX_030200], Size [3]21611:53:51 collectDB: Collect Data for [RD_DB_INDEXES]21711:53:51 collectDB: Collect Data for [RD_DB_INDCOL]21811:53:51 collectDB: Collect Data for [RD_DB_INDPART]21911:53:51 collectDB: Collect Data for [RD_DB_INDSUBPART]22011:53:51 collectDB: Collect Data for [RD_DB_INDEXP]22111:53:51 cltAWRSqlO: Collect Index for [CTXSYS], Size [2]22211:53:51 collectDB: Collect Data for [RD_DB_INDEXES]22311:53:51 collectDB: Collect Data for [RD_DB_INDCOL]22411:53:51 collectDB: Collect Data for [RD_DB_INDPART]22511:53:51 collectDB: Collect Data for [RD_DB_INDSUBPART]22611:53:51 collectDB: Collect Data for [RD_DB_INDEXP]22711:53:51 cltAWRSqlO: Collect Index for [SYSTEM], Size [4]22811:53:51 collectDB: Collect Data for [RD_DB_INDEXES]22911:53:51 collectDB: Collect Data for [RD_DB_INDCOL]23011:53:51 collectDB: Collect Data for [RD_DB_INDPART]23111:53:51 collectDB: Collect Data for [RD_DB_INDSUBPART]23211:53:51 collectDB: Collect Data for [RD_DB_INDEXP]23311:53:51 cltAWRSqlO: Collect Index for [DBSNMP], Size [5]23411:53:51 collectDB: Collect Data for [RD_DB_INDEXES]23511:53:51 collectDB: Collect Data for [RD_DB_INDCOL]23611:53:51 collectDB: Collect Data for [RD_DB_INDPART]23711:53:51 collectDB: Collect Data for [RD_DB_INDSUBPART]23811:53:51 collectDB: Collect Data for [RD_DB_INDEXP]23911:53:51 cltAWRSqlO: Collect Object-Related Informations24011:53:51 cltAWRSqlO: Collect Object for [FLOWS_FILES], Size [1]24111:53:51 collectDB: Collect Data for [RD_DB_OBJECT]24211:53:51 collectDB: Collect Data for [RD_DB_SEGMENT]24311:53:51 collectDB: Collect Data for [RD_DB_PARTKEY]24411:53:51 collectDB: Collect Data for [RD_DB_SUBPARTKEY]24511:53:51 cltAWRSqlO: Collect Object for [APEX_030200], Size [4]24611:53:51 collectDB: Collect Data for [RD_DB_OBJECT]24711:53:51 collectDB: Collect Data for [RD_DB_SEGMENT]24811:53:51 collectDB: Collect Data for [RD_DB_PARTKEY]24911:53:51 collectDB: Collect Data for [RD_DB_SUBPARTKEY]25011:53:51 cltAWRSqlO: Collect Object for [CTXSYS], Size [3]25111:53:51 collectDB: Collect Data for [RD_DB_OBJECT]25211:53:52 collectDB: Collect Data for [RD_DB_SEGMENT]25311:53:52 collectDB: Collect Data for [RD_DB_PARTKEY]25411:53:52 collectDB: Collect Data for [RD_DB_SUBPARTKEY]25511:53:52 cltAWRSqlO: Collect Object for [SYSTEM], Size [6]25611:53:52 collectDB: Collect Data for [RD_DB_OBJECT]25711:53:52 collectDB: Collect Data for [RD_DB_SEGMENT]25811:53:52 collectDB: Collect Data for [RD_DB_PARTKEY]25911:53:52 collectDB: Collect Data for [RD_DB_SUBPARTKEY]26011:53:52 cltAWRSqlO: Collect Object for [DBSNMP], Size [8]26111:53:52 collectDB: Collect Data for [RD_DB_OBJECT]26211:53:52 collectDB: Collect Data for [RD_DB_SEGMENT]26311:53:52 collectDB: Collect Data for [RD_DB_PARTKEY]26411:53:52 collectDB: Collect Data for [RD_DB_SUBPARTKEY]26511:53:52 cltRACSta: Collect RAC crs_stat26611:53:52 cltRACSta: no CRS instance running26711:53:52 cltASMDat: Begin ASM-Related Data Collection26811:53:52 cltASMDat: No ASM Instance Found for Current DB System26911:53:52 cltASMDat: Completed ASM-Related Data Collection27011:53:52 cltTopAWR: Collect DB AWR Report27111:53:52 cltTopAWR: Get Top AWR [1 of 3]27211:53:56 cltTopAWR: Get Top AWR [2 of 3]27311:54:01 cltTopAWR: Get Top AWR [3 of 3]27411:54:05 cltTopAWR: Complete DB AWR Report Collection27511:54:05 cltSegStats: Collect AWR Segment Stats and Objects27611:54:05 collectDB: Collect Data for [RD_DB_AWR_SEGSTATS]27711:54:05 cltSegStats: Segment Obj Info Location [2/3/4]27811:54:05 cltSegStats: Collect Segment Object for Batch [1]27911:54:05 collectDB: Collect Data for [RD_DB_AWR_SEGOBJ]28011:54:05 cltSegStats: Collect Segment Object for Batch [2]28111:54:05 collectDB: Collect Data for [RD_DB_AWR_SEGOBJ]28211:54:05 cltSegStats: Complete AWR Segment Stats and Objects28311:54:05 cltSCNCompat: Collect SCN Compat Version28411:54:05 cltSCNCompat: Complete SCN Compat Version28511:54:05 postProcess: do Post Process28611:54:05 closeSocket: Close Socket on Port [12345]28711:54:05 postProcess: 28811:54:05 postProcess: +====================== [ Summary Information ] ======================+28911:54:05 postProcess: | Table Name File Name Size |29011:54:05 postProcess: | -------------------- ----------------------------------- -------- |29111:54:05 postProcess: | RD_DB_LINKS nirvana_db_links.txt 36 B |29211:54:05 postProcess: | RD_DB_CRSSTAT nirvana_db_crsstat.txt 49 B |29311:54:05 postProcess: | RD_DB_LSNR nirvana_db_lsnr.txt 51 B |29411:54:05 postProcess: | RD_DB_PARTKEY nirvana_db_partKey.txt 51 B |29511:54:05 postProcess: | RD_DB_SUBPARTKEY nirvana_db_subPartKey.txt 51 B |29611:54:05 postProcess: | RD_DB_SYSUSER nirvana_db_sysUser.txt 54 B |29711:54:05 postProcess: | RD_OS_ERR nirvana_os_err.txt 70 B |29811:54:05 postProcess: | RD_DB_DICTSTAT nirvana_db_dictStat.txt 74 B |29911:54:05 postProcess: | RD_DB_INDEXP nirvana_db_indExp.txt 80 B |30011:54:05 postProcess: | RD_OS_MEMSTAT nirvana_os_memStat.txt 94 B |30111:54:05 postProcess: | RD_DB_AWR_CONTROL nirvana_db_awr_control.txt 98 B |30211:54:05 postProcess: | RD_DB_SCN_COMPAT nirvana_db_scn_compat.txt 102 B |30311:54:05 postProcess: | RD_DB_SCN nirvana_db_SCN.txt 105 B |30411:54:05 postProcess: | BX_MD_DB_SYSTEM nirvana_md_database.txt 116 B |30511:54:05 postProcess: | RD_OS_CRONTAB nirvana_os_crontab.txt 135 B |30611:54:05 postProcess: | RD_DB_ALERT_TRACE nirvana_db_alert_trace.txt 161 B |30711:54:05 postProcess: | RD_DB_DSKGRP nirvana_db_dskGrp.txt 180 B |30811:54:05 postProcess: | RD_OS_HOSTS nirvana_os_hosts.txt 210 B |30911:54:05 postProcess: | RD_DB_BAKSPFILE nirvana_db_bakSPfile.txt 235 B |31011:54:05 postProcess: | RD_DB_TFILE nirvana_db_tFile.txt 257 B |31111:54:05 postProcess: | RD_OS_INFO nirvana_os_info.txt 271 B |31211:54:05 postProcess: | RD_DB_ASMDSK nirvana_db_asmDsk.txt 288 B |31311:54:05 postProcess: | RD_DB_REGHIST nirvana_db_regHist.txt 293 B |31411:54:05 postProcess: | RD_DB_INST nirvana_db_inst.txt 373 B |31511:54:05 postProcess: | RD_DB_AWR_INSTANCE nirvana_db_awr_instance.txt 378 B |31611:54:05 postProcess: | RD_DB_TABSUBPART nirvana_db_tabSubPart.txt 392 B |31711:54:05 postProcess: | RD_DB_TABPART nirvana_db_tabPart.txt 400 B |31811:54:05 postProcess: | RD_DB_CONTAINER nirvana_db_container.txt 401 B |31911:54:05 postProcess: | RD_OS_FS nirvana_os_FS.txt 412 B |32011:54:05 postProcess: | RD_DB_LOGHIST nirvana_db_logHist.txt 417 B |32111:54:05 postProcess: | RD_DB_INDSUBPART nirvana_db_indSubPart.txt 437 B |32211:54:05 postProcess: | RD_DB_LOGFILE nirvana_db_logFile.txt 456 B |32311:54:05 postProcess: | RD_DB_INDPART nirvana_db_indPart.txt 490 B |32411:54:05 postProcess: | RD_DB_AWR_REPORT nirvana_db_awr_report.txt 554 B |32511:54:05 postProcess: | RD_DB_EXTINST nirvana_db_extInst.txt 555 B |32611:54:05 postProcess: | RD_OS_PAR nirvana_os_par.txt 633 B |32711:54:05 postProcess: | RD_DB_SEGSUMM_SIZE nirvana_db_segSumm_size.txt 845 B |32811:54:05 postProcess: | RD_OS_ORANET nirvana_os_oraNet.txt 888 B |32911:54:05 postProcess: | RD_DB_DFILE nirvana_db_dFile.txt 917 B |33011:54:05 postProcess: | RD_DB_LOG nirvana_db_log.txt 965 B |33111:54:05 postProcess: | RD_OS_NIC nirvana_os_NIC.txt 1.084 KB |33211:54:05 postProcess: | RD_DB_ROLE nirvana_db_role.txt 1.223 KB |33311:54:05 postProcess: | RD_DB_TS nirvana_db_ts.txt 1.240 KB |33411:54:05 postProcess: | RD_DB_JOB nirvana_db_job.txt 1.257 KB |33511:54:05 postProcess: | RD_OS_RAW nirvana_os_raw.txt 1.368 KB |33611:54:05 postProcess: | RD_OS_LSN_STATUS nirvana_os_lsnStatus.txt 1.468 KB |33711:54:05 postProcess: | RD_DB_TOPSEGS nirvana_db_topsegs.txt 1.477 KB |33811:54:05 postProcess: | RD_DB_INFO nirvana_db_info.txt 1.517 KB |33911:54:05 postProcess: | RD_DB_PROFILE nirvana_db_profile.txt 1.805 KB |34011:54:05 postProcess: | RD_DB_SEGMENT nirvana_db_segment.txt 1.980 KB |34111:54:05 postProcess: | RD_DB_BAKARCH nirvana_db_bakArch.txt 2.035 KB |34211:54:05 postProcess: | RD_DB_BAKSET nirvana_db_bakSet.txt 2.127 KB |34311:54:05 postProcess: | RD_DB_PROPS nirvana_db_props.txt 2.136 KB |34411:54:05 postProcess: | RD_DB_INDCOL nirvana_db_indCol.txt 2.290 KB |34511:54:05 postProcess: | RD_DB_REGISTRY nirvana_db_registry.txt 2.353 KB |34611:54:05 postProcess: | BX_BATCH_STATUS nirvana_batch_status.txt 2.576 KB |34711:54:05 postProcess: | RD_DB_BAKFILE nirvana_db_bakFile.txt 2.646 KB |34811:54:05 postProcess: | RD_DB_TABLES nirvana_db_table.txt 2.907 KB |34911:54:05 postProcess: | RD_DB_SPPAR nirvana_db_spPar.txt 3.346 KB |35011:54:05 postProcess: | RD_DB_ROLEPRIV nirvana_db_rolePriv.txt 4.763 KB |35111:54:05 postProcess: | RD_DB_OBJ nirvana_db_obj.txt 4.796 KB |35211:54:05 postProcess: | RD_DB_OBJECT nirvana_db_obj.txt 4.796 KB |35311:54:05 postProcess: | RD_DB_TRIGGER nirvana_db_trigger.txt 5.755 KB |35411:54:05 postProcess: | RD_OS_FILESIZE nirvana_os_fileSize.txt 5.771 KB |35511:54:05 postProcess: | RD_DB_INDEXES nirvana_db_index.txt 5.883 KB |35611:54:05 postProcess: | RD_DB_USER nirvana_db_user.txt 9.420 KB |35711:54:05 postProcess: | RD_DB_AWR_SEGOBJ nirvana_db_awr_segObj.txt 10.31 KB |35811:54:05 postProcess: | RD_DB_AWR_SNAPSHOT nirvana_db_awr_snapshot.txt 11.22 KB |35911:54:05 postProcess: | BX_BATCH_CONTROL nirvana_batch_control.txt 14.25 KB |36011:54:05 postProcess: | RD_DB_AWR_RESLIMIT nirvana_db_awr_resLimit.txt 15.13 KB |36111:54:05 postProcess: | RD_DB_SCHEDULER nirvana_db_scheduler.txt 16.54 KB |36211:54:05 postProcess: | RD_DB_COLUMNS nirvana_db_column.txt 21.19 KB |36311:54:05 postProcess: | RD_DB_ALERT nirvana_db_alert.txt 22.57 KB |36411:54:05 postProcess: | RD_DB_SYSPRIV nirvana_db_sysPriv.txt 27.99 KB |36511:54:05 postProcess: | RD_DB_AWR_SEGSTATS nirvana_db_awr_segStats.txt 29.59 KB |36611:54:05 postProcess: | RD_DB_AWR_TOPEVENT nirvana_db_awr_topEvent.txt 39.44 KB |36711:54:05 postProcess: | RD_DB_AWR_OSSTAT nirvana_db_awr_osStat.txt 44.36 KB |36811:54:05 postProcess: | RD_DB_AWR_SYSSTAT nirvana_db_awr_sysstat.txt 53.58 KB |36911:54:05 postProcess: | RD_DB_AWR_TIMEMODEL nirvana_db_awr_timeModel.txt 55.09 KB |37011:54:05 postProcess: | RD_DB_PAR nirvana_db_par.txt 60.08 KB |37111:54:05 postProcess: | RD_DB_AWR_SGA nirvana_db_awr_sga.txt 70.05 KB |37211:54:05 postProcess: | RD_DB_AWR_SQLTEXT nirvana_db_awr_sqlText.txt 128.7 KB |37311:54:05 postProcess: | RD_DB_AWR_SQLSTAT nirvana_db_awr_sqlStat.txt 221.3 KB |37411:54:05 postProcess: | RD_DB_AWR_SQLPLAN nirvana_db_awr_sqlPlan.txt 604.5 KB |37511:54:05 postProcess: +=====================================================================+37611:54:06 postProcess: Stop Monitor Process [7078]377378Collection Tasks all Completed, Result File:379 [ Bethune ] --> data/LUCIFER_20241023115339.zip采集完成后，生成一个巡检文件：LUCIFER_20241023115339.zip：
1[oracle@oracle11g:/home/oracle/BTRobot-v2.3.0/data]$ ll2total 4563-rw-r--r-- 1 oracle oinstall 466674 Oct 23 11:54 LUCIFER_20241023115339.zip在当前目录的 data 文件夹下，下载巡检文件到本地主机。
巡检文件需要上传到墨天轮智能巡检工具进行报告分析和生成：

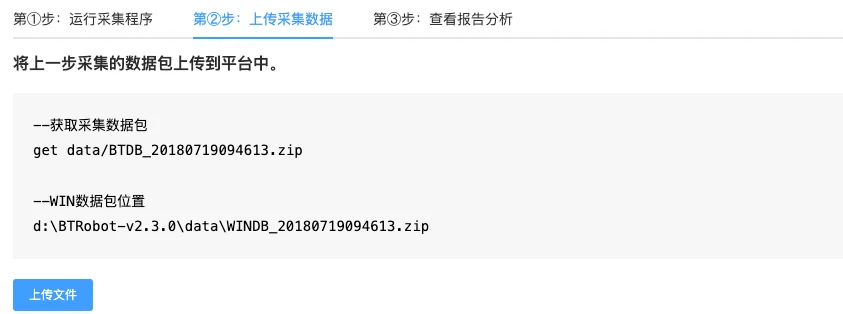

点击上传文件，上传巡检文件：

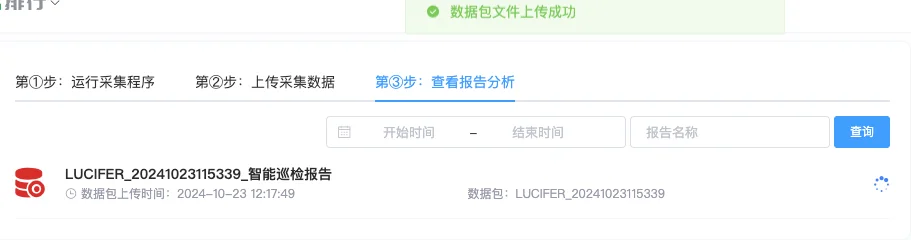

上传成功后，会自动跳转到报告分析和生成页面。

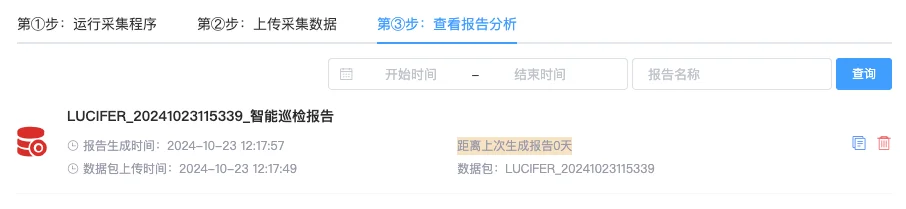

等待一会儿，报告就可以生成了：

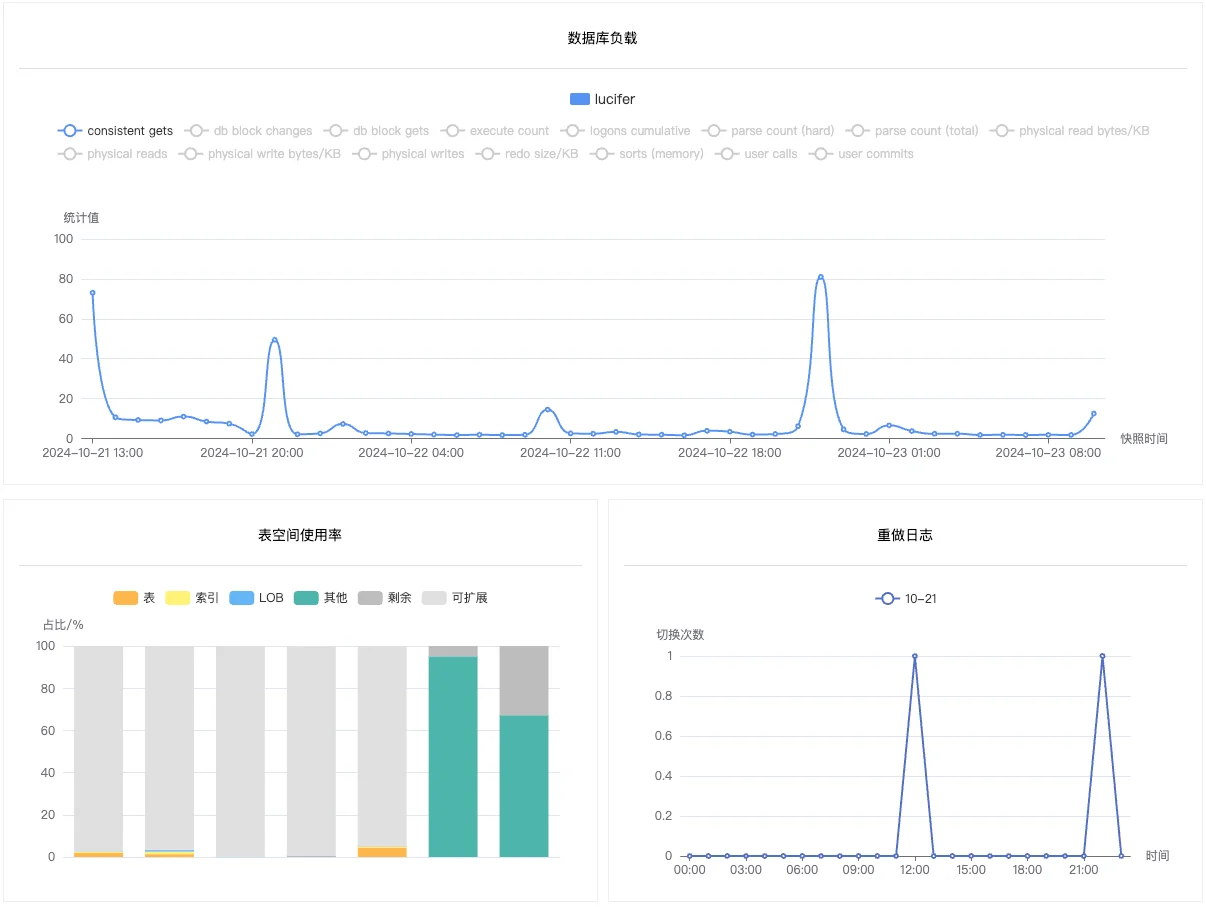

点击查看报告就可以预览：

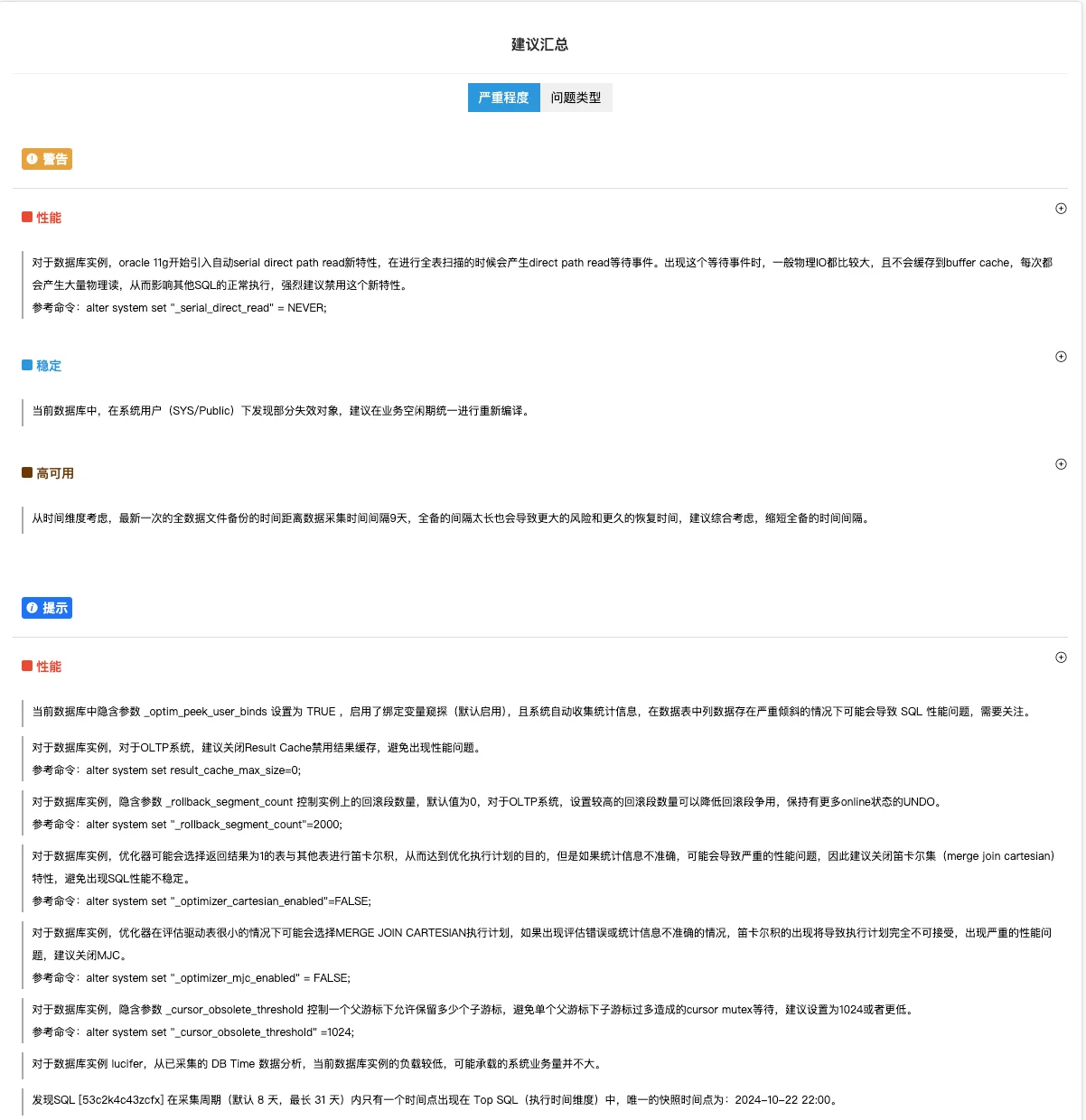

会给出一些数据库建议：
报告是 HTML 格式，目前仅支持在线预览，没有提供下载按钮。
墨天轮当初定的的愿景“乐知乐享，同心共济”就是要面向 DBA 及数据库从业者构建一个学习、分享的社区，大家互帮互助共同成功。
作为一个免费的智能巡检工具，已经非常不错了，建议大家都可以玩玩~
