大家好，这里是 Lucifer三思而后行，专注于提升数据库运维效率。 @TOC目录 DG GAP 顾名思义就是：DG不同步，当备库不能接受到一个或多个主库的归档日志文件时候，就发生了 GAP。 <font color='orage'那么，如果遇到GAP如何修复呢？且听我细细道来~</font DG GAP 主要分为以下两类情况： 1、主库归档日志存在，可以通过配置 Fetch Archive Lo
系统学习 Oracle DBA
开通会员 ¥128/月起
查看完整课程大家好，这里是 Lucifer三思而后行，专注于提升数据库运维效率。
本章目标：掌握本章核心知识点 前置要求：完成前序章节学习 预计时长：60 分钟
DG GAP 顾名思义就是：DG不同步，当备库不能接受到一个或多个主库的归档日志文件时候，就发生了 GAP。
那么，如果遇到GAP如何修复呢？且听我细细道来~
DG GAP 主要分为以下两类情况：
1、主库归档日志存在，可以通过配置 Fetch Archive Log(FAL) 参数，自动解决归档 GAP。 2、主库归档日志丢失，需要
人工干预来修复。
不同 Oracle 版本的 GAP 修复方式也不尽相同，下面分别介绍不同版本的方式！
11G 的处理步骤：
a.在主库上创建一个备库的控制文件 b.以备库的当前SCN号为起点，在主库上做一个增量备份 c.将增量备份拷贝到备库上 d.使用新的控制文件将备库启动到mount状态 e.将增量备份注册到RMAN的catalog，取消备库的恢复应用，恢复增量备份 f.开启备库的恢复进程
12C 的新特性（RECOVER … FROM SERVICE）
18C 的新特性（RECOVER STANDBY DATABASE FROM SERVICE）
Oracle随着版本的升级，逐渐将步骤缩减，进行封装，18C之后可谓是达到了所谓的一键刷新，恢复DG同步。
下面我们通过实验来进行演示如何修复：
安装测试环境可以使用博主编写的 Oracle 一键安装脚本，同时支持单机和 RAC 集群模式！
更多更详细的脚本使用方式可以订阅专栏：Oracle一键安装脚本。
首先，模拟备库断电，主库切几个最新的归档，然后手工删掉，重新开启DG同步。
备库停止DG同步进程：
1sqlplus / as sysdba2ALTER DATABASE RECOVER MANAGED STANDBY DATABASE CANCEL;3shutdown immediate主库切换多次归档：
1sqlplus / as sysdba2alter system switch logfile;主库删除最近几个归档日志：
1rm 1_34_1070147137.arc 2rm 1_33_1070147137.arc备库开启同步进程：
1startup2ALTER DATABASE RECOVER MANAGED STANDBY DATABASE USING CURRENT LOGFILE DISCONNECT FROM SESSION;查看GAP：
1sqlplus / as sysdba2SELECT * FROM V$ARCHIVE_GAP;3THREAD# LOW_SEQUENCE# HIGH_SEQUENCE#4---------- ------------- --------------5 1 32 3467SELECT max(sequence#) from v$archived_log where applied='YES';8MAX(SEQUENCE#)9--------------1031📢 注意： 当前DG数据库已存在GAP，GAP日志为：32---34。
1alter database create standby controlfile as '/tmp/standby.ctl';备库查询当前 scn 号：
1sqlplus / as sysdba2select to_char(current_scn) from v$database;3TO_CHAR(CURRENT_SCN)4----------------------------------------51086639确认主备GAP期间是否新增数据文件：
1sqlplus / as sysdba2select file# from v$datafile where creation_change# > =1086639;主库根据备库scn号进行增量备份：
1rman target /2run{3allocate channel c1 type disk;4allocate channel c2 type disk;5backup INCREMENTAL from scn 1086639 database format '/tmp/incre_%U';6release channel c1;7release channel c2;8}📢 注意： 如果存在新增数据文件，备库恢复时需要先restore新添加的数据文件。
主库拷贝增量备份和控制文件你至备库：
1scp incre_0* oracle@orcl_stby:/home/oracle2scp standby.ctl oracle@orcl_stby:/home/oracle📢 注意： 确认备库的磁盘空间是否足够存放。
备库关闭数据库实例，开启至nomount状态：
1sqlplus / as sysdba2shutdown immediate3startup nomount备库恢复新的控制文件：
1rman target /2restore controlfile from '/home/oracle/standby.ctl';备库开启到mount状态：
1alter database mount;确认备库已关闭DG同步进程：
1sqlplus / as sysdba2ALTER DATABASE RECOVER MANAGED STANDBY DATABASE CANCEL;备库rman注册增量备份文件：
1rman target /2catalog start with '/home/oracle/';3YES备库开启恢复增量备份：
1recover database noredo;备库开启日志同步进程：
1sqlplus / as sysdba2alter database open read only;3ALTER DATABASE RECOVER MANAGED STANDBY DATABASE USING CURRENT LOGFILE DISCONNECT FROM SESSION;主库重新激活同步：
1sqlplus / as sysdba2ALTER SYSTEM SET LOG_ARCHIVE_DEST_STATE_2=defer;3ALTER SYSTEM SET LOG_ARCHIVE_DEST_STATE_2=enable;查询是否存在GAP，确认主备是否同步：
1sqlplus / as sysdba2SELECT * FROM V$ARCHIVE_GAP;3SELECT max(sequence#) from v$archived_log where applied='YES';4SELECT PROCESS, STATUS, THREAD#, SEQUENCE#, BLOCK#, BLOCKS FROM V$MANAGED_STANDBY;至此，DG GAP已被修复，以上方式为常规修复方式，各个版本都通用。
首先，模拟备库断电，主库切几个最新的归档，然后手工删掉，重新开启DG同步。
模拟GAP期间，有数据文件添加的情况：
1##主库添加数据文件2alter tablespace TEST add datafile '/oradata/ORCL/test02.dbf' size 100M autoextend off;📢 注意： 当前DG数据库已存在GAP，GAP日志为：30---31 。
备库记录当前 scn 号：
1sqlplus / as sysdba2SELECT CURRENT_SCN FROM V$DATABASE;3CURRENT_SCN4-----------52600487采用rman的新功能，recover standby using service，通过RMAN连接到target备库，然后用主库的service执行恢复备库命令。
语法：
RECOVER DATABASE FROM SERVICE < PRIMARY DB SERVICE NAME > NOREDO USING COMPRESSED BACKUPSET;
📢 注意： 确认主库的TNS已配置，这里的< PRIMARY DB SERVICE NAME >即 TNSNAME。
备库启动到nomount状态：
1sqlplus / as sysdba2shutdown immediate3startup nomount备库通过from service恢复控制文件：
1rman target /2restore standby controlfile from service orcl;备库开启到mount状态：
1sqlplus / as sysdba2alter database mount;检查主备GAP期间是否添加数据文件：
1sqlplus / as sysdba2select file# from v$datafile where creation_change# > =2600487;34FILE#5----------613restore 新添加的数据文件：
1rman target /2run3{4SET NEWNAME FOR DATABASE TO '/oradata/ORCL_STBY/%f_%U';5RESTORE DATAFILE 13 FROM SERVICE orcl;6}由于主备的数据文件目录不一致，需要修改controlfile中数据文件位置：
1rman target /2catalog start with '/oradata/ORCL_STBY';3YES4SWITCH DATABASE TO COPY;将备库文件管理方式改为手动：
1sqlplus / as sysdba2alter system set standby_file_management=MANUAL;重命名 tempfile && logfile：
1sqlplus / as sysdba2##logfile3alter database clear logfile group 1;4alter database clear logfile group 2;5alter database clear logfile group 3;6alter database clear logfile group 4;7alter database clear logfile group 5;8alter database clear logfile group 6;9alter database clear logfile group 7;10alter database rename file '/oradata/ORCL/redo03.log' to '/oradata/ORCL_STBY/redo03.log';11alter database rename file '/oradata/ORCL/redo02.log' to '/oradata/ORCL_STBY/redo02.log';12alter database rename file '/oradata/ORCL/redo01.log' to '/oradata/ORCL_STBY/redo01.log';13alter database rename file '/oradata/ORCL/standby_redo04.log' to '/oradata/ORCL_STBY/standby_redo04.log';14alter database rename file '/oradata/ORCL/standby_redo05.log' to '/oradata/ORCL_STBY/standby_redo05.log';15alter database rename file '/oradata/ORCL/standby_redo06.log' to '/oradata/ORCL_STBY/standby_redo06.log';16alter database rename file '/oradata/ORCL/standby_redo07.log' to '/oradata/ORCL_STBY/standby_redo07.log';17##tempfile18alter database rename file '/oradata/ORCL/temp01.dbf' to '/oradata/ORCL_STBY/temp01.dbf';19alter database rename file '/oradata/ORCL/pdbseed/temp012021-04-11_06-13-50-844-AM.dbf' to '/oradata/ORCL_STBY/pdbseed/temp012021-04-11_06-13-50-844-AM.dbf';20alter database rename file '/oradata/ORCL/BFA6BEE45A1E3605E053AC01A8C0DD20/datafile/o1_mf_temp_j749f5fy_.dbf' to '/oradata/ORCL_STBY/BFA6BEE45A1E3605E053AC01A8C0DD20/datafile/o1_mf_temp_j749f5fy_.dbf';备库重命名完后再改为自动：
1sqlplus / as sysdba2alter system set standby_file_management=AUTO;恢复主备GAP：

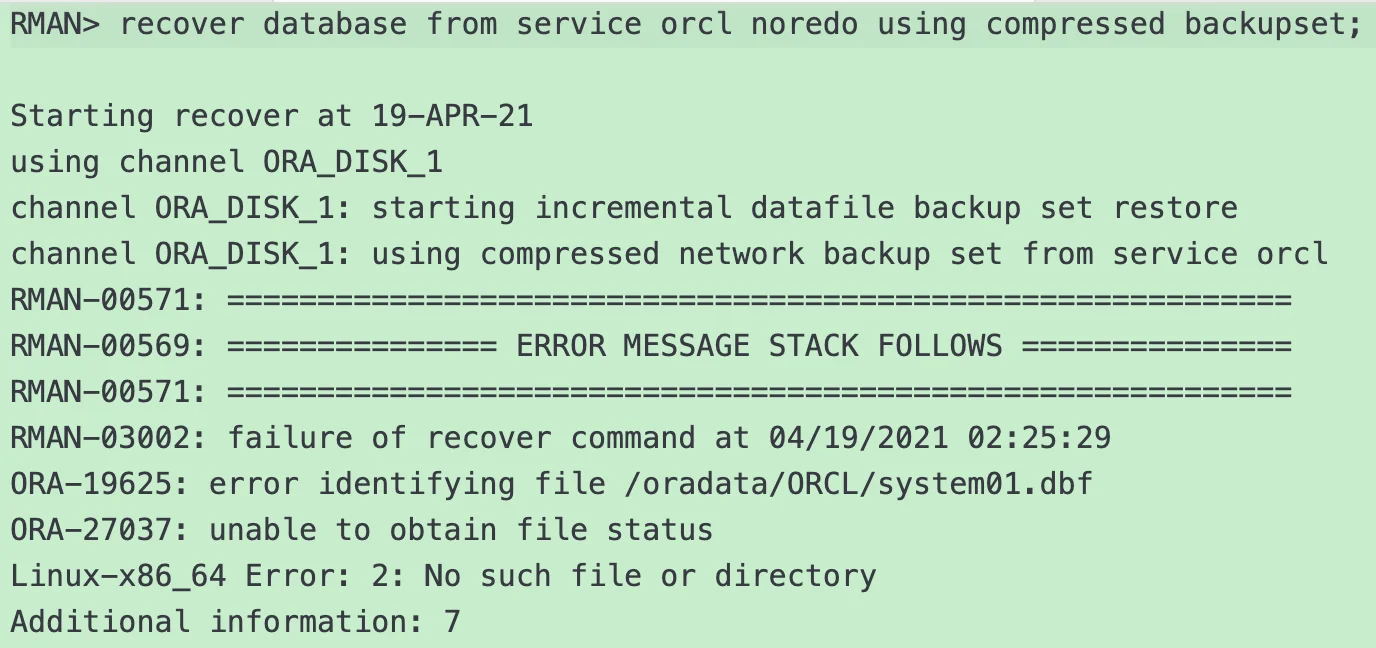

1recover database from service orcl noredo using compressed backupset;📢 注意： 如果主备库文件目录不一致，则需要catalog切换控制文件中路径，否则报错：
1sqlplus / as sysdba2col HXFNM for a1003set line2224select HXFIL File_num,substr(HXFNM,1,40) HXFNM,fhscn from x$kcvfh;1sqlplus / as sysdba2ALTER SYSTEM ARCHIVE LOG CURRENT;3ALTER SYSTEM SWITCH LOGFILE;1sqlplus / as sysdba2alter database open;3alter pluggable database all open;4ALTER DATABASE RECOVER MANAGED STANDBY DATABASE USING CURRENT LOGFILE DISCONNECT FROM SESSION;1sqlplus / as sysdba2set line2223col member for a604select t1.group#,t1.thread#,t1.bytes/1024/1024,t1.status,t2.member from gv$standby_log t1,gv$logfile t2 where t1.group#=t2.group#;1sqlplus test/test@pdb012insert into test values (999);3commit;1alter session set container=pdb01;2select * from test.test;3ID4----------51627999至此，GAP已修复完成，可以发现，12C这个新特性，将一些步骤进行了省略和封装，进一步减少了我们的操作步骤，但是内部的原理仍然是一致的。
18C 新特性是在 12C 的基础上，将 RECOVER STANDBY DATABASE 命令与 FROM SERVICE 子句一起使用，以通过对主数据库进行的更改来刷新物理备用数据库。备库可以直接在开启状态进行刷新。
语法：
RECOVER STANDBY DATABASE FROM SERVICE primary_db;
首先，模拟备库断电，主库切几个最新的归档，然后手工删掉，重新开启DG同步。
模拟GAP期间，有数据文件添加的情况：
1##主库添加数据文件2alter tablespace TEST add datafile '/oradata/ORCL/test02.dbf' size 100M autoextend off;📢 注意： 当前 DG 数据库已存在 GAP，GAP 日志为：69---70。
下面演示一下，如何使用一行命令在线修复DG GAP：
备库取消日志应用：
1sqlplus / as sysdba2ALTER DATABASE RECOVER MANAGED STANDBY DATABASE CANCEL;备库执行修复命令，开始在线刷新备库：
1rman target /2RMAN> RECOVER STANDBY DATABASE FROM SERVICE orcl;34Starting recover at 19-APR-215using target database control file instead of recovery catalog6Oracle instance started78Total System Global Area3355441944 bytes910Fixed Size 9141016 bytes11Variable Size671088640 bytes12Database Buffers2667577344 bytes13Redo Buffers 7634944 bytes1415contents of Memory Script:16{17 restore standby controlfile from service 'orcl';18 alter database mount standby database;19}20executing Memory Script2122Starting restore at 19-APR-2123allocated channel: ORA_DISK_124channel ORA_DISK_1: SID=502 device type=DISK2526channel ORA_DISK_1: starting datafile backup set restore27channel ORA_DISK_1: using network backup set from service orcl28channel ORA_DISK_1: restoring control file29channel ORA_DISK_1: restore complete, elapsed time: 00:00:0230output file name=/oradata/ORCL_STBY/control01.ctl31output file name=/oradata/ORCL_STBY/control02.ctl32Finished restore at 19-APR-213334released channel: ORA_DISK_135Statement processed36Executing: alter system set standby_file_management=manual3738contents of Memory Script:39{40set newname for tempfile 1 to 41 "/oradata/ORCL_STBY/temp01.dbf";42set newname for tempfile 2 to 43 "/oradata/ORCL_STBY/pdbseed/temp012021-04-11_06-13-50-844-AM.dbf";44set newname for tempfile 3 to 45 "/oradata/ORCL_STBY/BFA6BEE45A1E3605E053AC01A8C0DD20/datafile/o1_mf_temp_j749f5fy_.dbf";46 switch tempfile all;47set newname for datafile 1 to 48 "/oradata/ORCL_STBY/system01.dbf";49set newname for datafile 3 to 50 "/oradata/ORCL_STBY/sysaux01.dbf";51set newname for datafile 4 to 52 "/oradata/ORCL_STBY/undotbs01.dbf";53set newname for datafile 5 to 54 "/oradata/ORCL_STBY/pdbseed/system01.dbf";55set newname for datafile 6 to 56 "/oradata/ORCL_STBY/pdbseed/sysaux01.dbf";57set newname for datafile 7 to 58 "/oradata/ORCL_STBY/users01.dbf";59set newname for datafile 8 to 60 "/oradata/ORCL_STBY/pdbseed/undotbs01.dbf";61set newname for datafile 9 to 62 "/oradata/ORCL_STBY/PDB01/o1_mf_system_j749f5d5_.dbf";63set newname for datafile 10 to 64 "/oradata/ORCL_STBY/PDB01/o1_mf_sysaux_j749f5fw_.dbf";65set newname for datafile 11 to 66 "/oradata/ORCL_STBY/PDB01/o1_mf_undotbs1_j749f5fx_.dbf";67set newname for datafile 12 to 68 "/oradata/ORCL_STBY/test01.dbf";69set newname for datafile 14 to 70 "/oradata/ORCL/test02.dbf";71 restore from service 'orcl' datafile7214;73 catalog datafilecopy "/oradata/ORCL_STBY/system01.dbf", 74 "/oradata/ORCL_STBY/sysaux01.dbf", 75 "/oradata/ORCL_STBY/undotbs01.dbf", 76 "/oradata/ORCL_STBY/pdbseed/system01.dbf", 77 "/oradata/ORCL_STBY/pdbseed/sysaux01.dbf", 78 "/oradata/ORCL_STBY/users01.dbf", 79 "/oradata/ORCL_STBY/pdbseed/undotbs01.dbf", 80 "/oradata/ORCL_STBY/PDB01/o1_mf_system_j749f5d5_.dbf", 81 "/oradata/ORCL_STBY/PDB01/o1_mf_sysaux_j749f5fw_.dbf", 82 "/oradata/ORCL_STBY/PDB01/o1_mf_undotbs1_j749f5fx_.dbf", 83 "/oradata/ORCL_STBY/test01.dbf", 84 "/oradata/ORCL/test02.dbf";85 switch datafile all;86}87executing Memory Script8889executing command: SET NEWNAME9091executing command: SET NEWNAME9293executing command: SET NEWNAME9495renamed tempfile 1 to /oradata/ORCL_STBY/temp01.dbf in control file96renamed tempfile 2 to /oradata/ORCL_STBY/pdbseed/temp012021-04-11_06-13-50-844-AM.dbf in control file97renamed tempfile 3 to /oradata/ORCL_STBY/BFA6BEE45A1E3605E053AC01A8C0DD20/datafile/o1_mf_temp_j749f5fy_.dbf in control file9899executing command: SET NEWNAME100101executing command: SET NEWNAME102103executing command: SET NEWNAME104105executing command: SET NEWNAME106107executing command: SET NEWNAME108109executing command: SET NEWNAME110111executing command: SET NEWNAME112113executing command: SET NEWNAME114115executing command: SET NEWNAME116117executing command: SET NEWNAME118119executing command: SET NEWNAME120121executing command: SET NEWNAME122123Starting restore at 19-APR-21124allocated channel: ORA_DISK_1125channel ORA_DISK_1: SID=504 device type=DISK126127channel ORA_DISK_1: starting datafile backup set restore128channel ORA_DISK_1: using network backup set from service orcl129channel ORA_DISK_1: specifying datafile(s) to restore from backup set130channel ORA_DISK_1: restoring datafile 00014 to /oradata/ORCL/test02.dbf131channel ORA_DISK_1: restore complete, elapsed time: 00:00:03132Finished restore at 19-APR-21133134cataloged datafile copy135datafile copy file name=/oradata/ORCL_STBY/system01.dbf RECID=4 STAMP=1070263316136cataloged datafile copy137datafile copy file name=/oradata/ORCL_STBY/sysaux01.dbf RECID=5 STAMP=1070263317138cataloged datafile copy139datafile copy file name=/oradata/ORCL_STBY/undotbs01.dbf RECID=6 STAMP=1070263317140cataloged datafile copy141datafile copy file name=/oradata/ORCL_STBY/pdbseed/system01.dbf RECID=7 STAMP=1070263317142cataloged datafile copy143datafile copy file name=/oradata/ORCL_STBY/pdbseed/sysaux01.dbf RECID=8 STAMP=1070263318144cataloged datafile copy145datafile copy file name=/oradata/ORCL_STBY/users01.dbf RECID=9 STAMP=1070263318146cataloged datafile copy147datafile copy file name=/oradata/ORCL_STBY/pdbseed/undotbs01.dbf RECID=10 STAMP=1070263318148cataloged datafile copy149datafile copy file name=/oradata/ORCL_STBY/PDB01/o1_mf_system_j749f5d5_.dbf RECID=11 STAMP=1070263318150cataloged datafile copy151datafile copy file name=/oradata/ORCL_STBY/PDB01/o1_mf_sysaux_j749f5fw_.dbf RECID=12 STAMP=1070263318152cataloged datafile copy153datafile copy file name=/oradata/ORCL_STBY/PDB01/o1_mf_undotbs1_j749f5fx_.dbf RECID=13 STAMP=1070263318154cataloged datafile copy155datafile copy file name=/oradata/ORCL_STBY/test01.dbf RECID=14 STAMP=1070263318156cataloged datafile copy157datafile copy file name=/oradata/ORCL/test02.dbf RECID=15 STAMP=1070263318158159datafile 14 switched to datafile copy160input datafile copy RECID=15 STAMP=1070263318 file name=/oradata/ORCL/test02.dbf161datafile 1 switched to datafile copy162input datafile copy RECID=4 STAMP=1070263316 file name=/oradata/ORCL_STBY/system01.dbf163datafile 3 switched to datafile copy164input datafile copy RECID=5 STAMP=1070263317 file name=/oradata/ORCL_STBY/sysaux01.dbf165datafile 4 switched to datafile copy166input datafile copy RECID=6 STAMP=1070263317 file name=/oradata/ORCL_STBY/undotbs01.dbf167datafile 5 switched to datafile copy168input datafile copy RECID=7 STAMP=1070263317 file name=/oradata/ORCL_STBY/pdbseed/system01.dbf169datafile 6 switched to datafile copy170input datafile copy RECID=8 STAMP=1070263318 file name=/oradata/ORCL_STBY/pdbseed/sysaux01.dbf171datafile 7 switched to datafile copy172input datafile copy RECID=9 STAMP=1070263318 file name=/oradata/ORCL_STBY/users01.dbf173datafile 8 switched to datafile copy174input datafile copy RECID=10 STAMP=1070263318 file name=/oradata/ORCL_STBY/pdbseed/undotbs01.dbf175datafile 9 switched to datafile copy176input datafile copy RECID=11 STAMP=1070263318 file name=/oradata/ORCL_STBY/PDB01/o1_mf_system_j749f5d5_.dbf177datafile 10 switched to datafile copy178input datafile copy RECID=12 STAMP=1070263318 file name=/oradata/ORCL_STBY/PDB01/o1_mf_sysaux_j749f5fw_.dbf179datafile 11 switched to datafile copy180input datafile copy RECID=13 STAMP=1070263318 file name=/oradata/ORCL_STBY/PDB01/o1_mf_undotbs1_j749f5fx_.dbf181datafile 12 switched to datafile copy182input datafile copy RECID=14 STAMP=1070263318 file name=/oradata/ORCL_STBY/test01.dbf183Executing: alter database rename file '/oradata/ORCL/redo01.log' to '/oradata/ORCL_STBY/redo01.log'184Executing: alter database rename file '/oradata/ORCL/redo02.log' to '/oradata/ORCL_STBY/redo02.log'185Executing: alter database rename file '/oradata/ORCL/redo03.log' to '/oradata/ORCL_STBY/redo03.log'186187contents of Memory Script:188{189 recover database from service 'orcl';190}191executing Memory Script192193Starting recover at 19-APR-21194using channel ORA_DISK_1195skipping datafile 5; already restored to SCN 2155383196skipping datafile 6; already restored to SCN 2155383197skipping datafile 8; already restored to SCN 2155383198skipping datafile 14; already restored to SCN 2658548199channel ORA_DISK_1: starting incremental datafile backup set restore200channel ORA_DISK_1: using network backup set from service orcl201destination for restore of datafile 00001: /oradata/ORCL_STBY/system01.dbf202channel ORA_DISK_1: restore complete, elapsed time: 00:00:01203channel ORA_DISK_1: starting incremental datafile backup set restore204channel ORA_DISK_1: using network backup set from service orcl205destination for restore of datafile 00003: /oradata/ORCL_STBY/sysaux01.dbf206channel ORA_DISK_1: restore complete, elapsed time: 00:00:01207channel ORA_DISK_1: starting incremental datafile backup set restore208channel ORA_DISK_1: using network backup set from service orcl209destination for restore of datafile 00004: /oradata/ORCL_STBY/undotbs01.dbf210channel ORA_DISK_1: restore complete, elapsed time: 00:00:01211channel ORA_DISK_1: starting incremental datafile backup set restore212channel ORA_DISK_1: using network backup set from service orcl213destination for restore of datafile 00007: /oradata/ORCL_STBY/users01.dbf214channel ORA_DISK_1: restore complete, elapsed time: 00:00:01215channel ORA_DISK_1: starting incremental datafile backup set restore216channel ORA_DISK_1: using network backup set from service orcl217destination for restore of datafile 00009: /oradata/ORCL_STBY/PDB01/o1_mf_system_j749f5d5_.dbf218channel ORA_DISK_1: restore complete, elapsed time: 00:00:01219channel ORA_DISK_1: starting incremental datafile backup set restore220channel ORA_DISK_1: using network backup set from service orcl221destination for restore of datafile 00010: /oradata/ORCL_STBY/PDB01/o1_mf_sysaux_j749f5fw_.dbf222channel ORA_DISK_1: restore complete, elapsed time: 00:00:01223channel ORA_DISK_1: starting incremental datafile backup set restore224channel ORA_DISK_1: using network backup set from service orcl225destination for restore of datafile 00011: /oradata/ORCL_STBY/PDB01/o1_mf_undotbs1_j749f5fx_.dbf226channel ORA_DISK_1: restore complete, elapsed time: 00:00:02227channel ORA_DISK_1: starting incremental datafile backup set restore228channel ORA_DISK_1: using network backup set from service orcl229destination for restore of datafile 00012: /oradata/ORCL_STBY/test01.dbf230channel ORA_DISK_1: restore complete, elapsed time: 00:00:01231232starting media recovery233234media recovery complete, elapsed time: 00:00:00235Finished recover at 19-APR-21236Executing: alter system set standby_file_management=auto237Finished recover at 19-APR-21方便大家查看，于是记录恢复全过程，通过以上执行过程，可以看到：
发现刷新过后，备库redo log路径已修改，standby log路径未修改，因此手动修改。
查询备库的日志文件路径：
1sqlplus / as sysdba2SQL> select member from v$logfile;34MEMBER5--------------------------------------------------------------------------------6/oradata/ORCL_STBY/redo03.log7/oradata/ORCL_STBY/redo02.log8/oradata/ORCL_STBY/redo01.log9/oradata/ORCL/standby_redo04.log10/oradata/ORCL/standby_redo05.log11/oradata/ORCL/standby_redo06.log12/oradata/ORCL/standby_redo07.log关闭备库文件自动管理：
1sqlplus / as sysdba2alter system set standby_file_management=MANUAL;清理standby log：
1sqlplus / as sysdba2alter database clear logfile group 4;3alter database clear logfile group 5;4alter database clear logfile group 6;5alter database clear logfile group 7;修改standby log路径：
1sqlplus / as sysdba2alter database rename file '/oradata/ORCL/standby_redo04.log' to '/oradata/ORCL_STBY/standby_redo04.log';3alter database rename file '/oradata/ORCL/standby_redo05.log' to '/oradata/ORCL_STBY/standby_redo05.log';4alter database rename file '/oradata/ORCL/standby_redo06.log' to '/oradata/ORCL_STBY/standby_redo06.log';5alter database rename file '/oradata/ORCL/standby_redo07.log' to '/oradata/ORCL_STBY/standby_redo07.log';修改完后打开备库文件自动管理：
1sqlplus / as sysdba2alter system set standby_file_management=AUTO;检查主备scn是否一致：
1sqlplus / as sysdba2col HXFNM for a1003set line2224select HXFIL File_num,substr(HXFNM,1,40) HXFNM,fhscn from x$kcvfh;主库切几次归档：
1sqlplus / as sysdba2ALTER SYSTEM ARCHIVE LOG CURRENT;3ALTER SYSTEM SWITCH LOGFILE;开启备库应用日志：
1sqlplus / as sysdba2alter database open;3alter pluggable database all open;4ALTER DATABASE RECOVER MANAGED STANDBY DATABASE USING CURRENT LOGFILE DISCONNECT FROM SESSION;查看备库同步是否正常：
1sqlplus / as sysdba2set line2223col member for a604select t1.group#,t1.thread#,t1.bytes/1024/1024,t1.status,t2.member from gv$standby_log t1,gv$logfile t2 where t1.group#=t2.group#;主库插入数据：
1sqlplus test/test@pdb012insert into test values (999);3commit;备库查询是否实时同步：
1sqlplus / as sysdba2alter session set container=pdb01;3select * from test.test;4ID5----------61728999至此，18C的GAP也已修复，可以看到Oracle随着版本升级，越来越自动化的操作，意味着运维自动化的未来。
