EMCC 13.5 完整安装详细版

大家好，这里是公众号 DBA学习之路，分享一些学习数据库路上的知识和经验。 @TOC目录角色主机名IP操作系统数据库版本物理内存磁盘空间 -------------- EMCC 服务端emcc192.168.6.66r

2024年2月21日阅读—点赞—收藏—

database

DBA 实战课程系统学习 Oracle DBA查看完整课程

大家好，这里是公众号 DBA学习之路，分享一些学习数据库路上的知识和经验。

主机信息

角色	主机名	IP	操作系统	数据库版本	物理内存	磁盘空间
EMCC 服务端	emcc	192.168.6.66	rhel7.9	19c	32G	500G

硬件要求

每个OMS的最低CPU、RAM、堆大小和硬盘空间要求（一般选择小型安装）：

-	评估或简单安装	高级安装（小型）	高级安装（中型）	高级安装（大型）
部署规模	评估或简单	小型	中型	大型
配置	1 OMS，<100个目标，<10个代理，<3个并发用户会话	1 OMS，<1000个目标，<100个代理，<10个并发用户会话	2 OMSes，>=1000但<10,000个目标，>=100但<1000个代理，>=10但<25个并发用户会话	2 OMSes，>=10,000个目标，>=1000个代理，>=25但<=50个并发用户会话
CPU核心/主机(可与其他进程共享)	2	4	6	12
内存(使用JVMD引擎)	10 GB	10 GB	12 GB	24 GB
硬盘空间 (包括Oracle软件库和JVMD引擎)	28 GB	28 GB	28 GB	28 GB
临时目录硬盘空间	14 GB	14 GB	14 GB	14 GB
Oracle WebLogic Server JVM堆大小	1 GB	1.7 GB	4 GB	8 GB

注意：EMCC 服务端物理内存至少 10G（建议 16G 以上），磁盘空间 500G 往上。

管理存储库的最低CPU、RAM和硬盘空间要求：

-	评估或简单安装	高级安装（小型）	高级安装（中型）	高级安装（大型）
部署规模	-	小型	中型	大型
配置	1个OMS，<100个目标，<10个代理，<3个并发用户会话	1个OMS，<1000个目标，<100个代理，<10个并发用户会话	2个OMS，>=1000但<10,000个目标，>=100但<1000个代理，>=10但<25个并发用户会话	> 2个OMS，>=10,000个目标，>=1000个代理，>=25但<=50个并发用户会话
CPU核心/主机	-	4	6	12
RAM	-	7 GB	10 GB	18 GB
硬盘空间	23 GB (SYSTEM: 600 MB, MGMT_TABLESPACE: 15 GB, MGMT_ECM_DEPOT_TS: 1 GB, MGMT_AD4J_TS: 3 GB, TEMP: 3 GB, ARCHIVE LOG OFF)	147 GB (SYSTEM: 600 MB, MGMT_TABLESPACE: 100 GB, MGMT_ECM_DEPOT_TS: 1 GB, MGMT_AD4J_TS: 10 GB, TEMP: 10 GB, ARCHIVE LOG AREA: 25 GB)	455 GB (SYSTEM: 600 MB, MGMT_TABLESPACE: 300 GB, MGMT_ECM_DEPOT_TS: 4 GB, MGMT_AD4J_TS: 30 GB, TEMP: 20 GB, ARCHIVE LOG AREA: 100 GB)	649 GB (SYSTEM: 600 MB, MGMT_TABLESPACE: 400 GB, MGMT_ECM_DEPOT_TS: 8 GB, MGMT_AD4J_TS: 50 GB, TEMP: 40 GB, ARCHIVE LOG AREA: 150 GB)

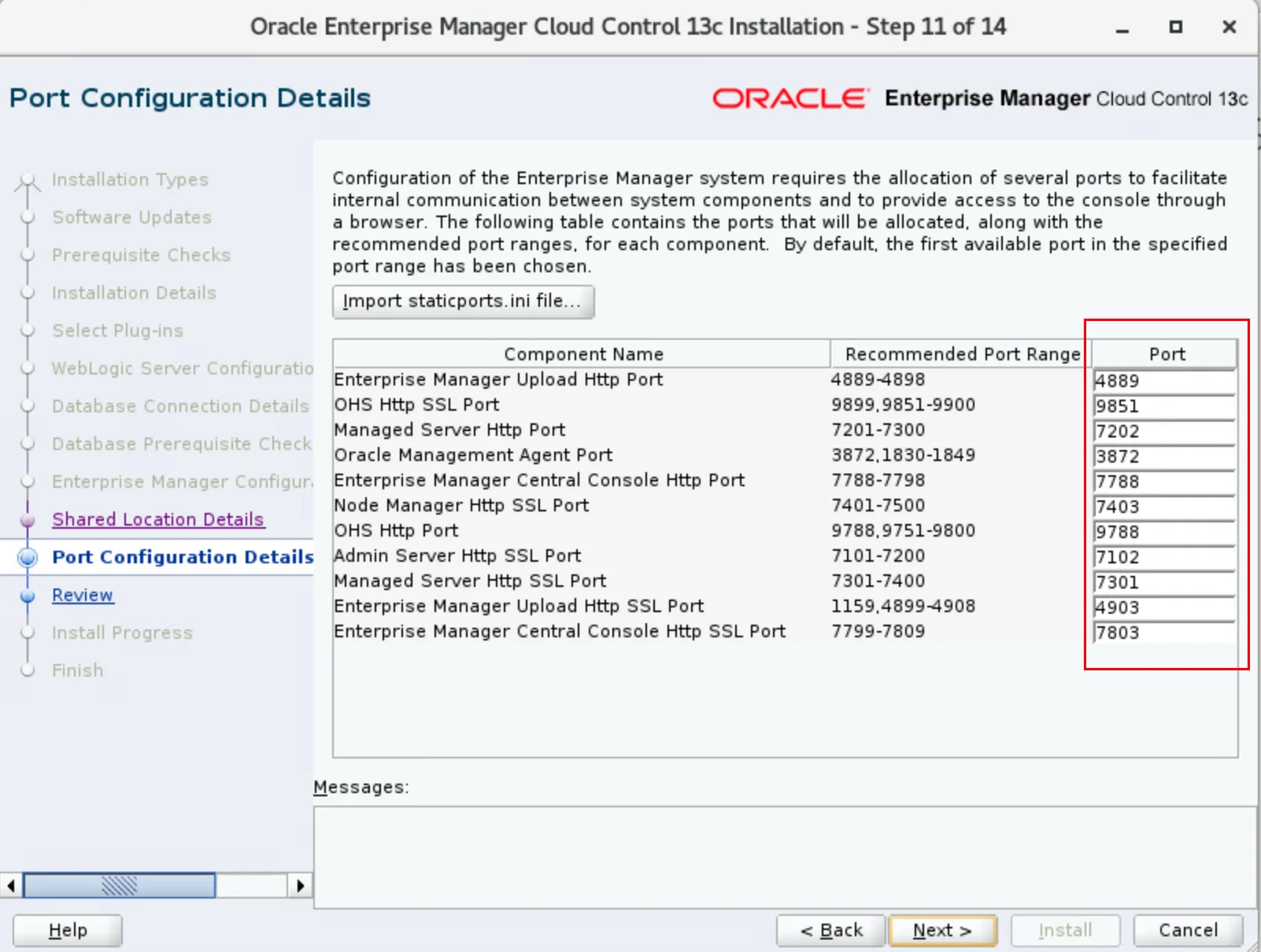

EMCC 需要开放端口

Component Name	Recommended Port Range	Port
Enterprise Manager Upload Http Port	4889-4898	4889
OHS Http SSL Port	9899, 9851-9900	9851
Managed Server Http Port	7201-7300	7202
Oracle Managagement Agent Port	3872,1830-1849	3872
Enterprise Manager Central Console Http Port	7788-7798	7788
Node Manager Http SSL Port	7401-7500	7403
OHS Http Port	9788,9751-9800	9788
Admin Server Http SsL Port	710l-7200	7102
Managed Server Http SSL Port	7301-7400	7301
Enterprise Manager Upload Http SSL Port	1159,4899-4908	4903
Enterprise Manager Central Console Http SsL Port	7799-7809	7803

建议补丁

	Document	Description	Patch Download
OMS - RU	Document 2996599.1	13.5.0 Enterprise Manager Cloud Control Base Platform Monthly Release Update (RU) 19 Patch 35861059	omspatcher Upgrade required (See README)
Agent-RU	Document 2996590.1	Enterprise Manager Cloud Control Management Agent 13.5 Release Update (RU) 19 Bug List Patch35861076	agentpatcher Upgrade required (See README)

Patch 35861059 EM 13.5 RU 19 or later

对于 35861059 EM 13.5 RU 19 或之后的版本，以下三个补丁需要先安装：

Patch 35430934 MERGE REQUEST ON TOP OF 12.2.1.4.0 FOR BUGS 32720458 33607709
Patch 34153238 HTTPS PROXY CONFIGURATION IS NOT USED WHEN PROTOCOL IS CONFIGURED TO TCP
Patch 31657681 THREADS CONTEND FOR LOCK IN LOADFILEBASEDKEYSTORE WHEN OPENING TLS/SSL ENABLED JDBC CONNECTIONS

安装包上传

安装包下载参考：《EMCC 13.5 安装介质完整下载（包含 DB安装包+DB RU+EMCC安装包+OMS RU+AGENT RU）》

✨ 偷懒的请直接跳转墨天轮资源下载:EMCC 13.5 安装介质完整下载（包含 DB安装包+DB RU+EMCC安装包+OMS RU+AGENT RU）

Bash

1mkdir /soft
2cd /soft
3
4## Oracle 安装软件包
5LINUX.X64_193000_db_home.zip
6
7## Oracle 软件补丁包
8p35943157_190000_Linux-x86-64.zip
9p6880880_190000_Linux-x86-64.zip
10
11## EMCC DB TEMPLATE
1219_11_0_0_0_Database_Template_for_EM13_5_0_0_0_Linux_x64.zip
13
14## EMCC 安装包
15em13500_linux64.bin
16em13500_linux64-2.zip
17em13500_linux64-3.zip
18em13500_linux64-4.zip
19em13500_linux64-5.zip
20
21## EMCC 补丁包
22## OMS
23p19999993_135000_Generic.zip
24p35861059_135000_Generic.zip
25## OMS BUG
26p28186730_1394214_Generic.zip
27p35430934_122140_Generic.zip
28p34153238_122140_Generic.zip
29p31657681_191000_Generic.zip
30## AGENT
31p33355570_135000_Generic.zip
32p35861076_135000_Generic.zip
33## WLS
34p36155700_122140_Generic.zip

Oracle 数据库软件安装

Oracle 一键安装脚本（全程无需人工干预）：（脚本包括 ORALCE PSU/OJVM 等补丁自动安装）

⭐️ 脚本下载地址：Shell脚本安装Oracle数据库

脚本第三代支持 N 节点一键安装，不限制节点数！

使用一键安装脚本执行安装 19C Oracle 软件：

Bash

1## root 用户下执行即可
2cd /soft
3mount /dev/cdrom /mnt
4chmod +x OracleShellInstall
5./OracleShellInstall -lf ens192 `# local ip ifname`\
6-n emcc `# hostname`\
7-op oracle `# oracle password`\
8-d /u01 `# software base dir`\
9-ord /oradata `# data dir`\
10-o emcc `# dbname`\
11-dp oracle `# sys/system password`\
12-ds AL32UTF8 `# database character`\
13-ns AL16UTF16 `# national character`\
14-opa 35943157 `# oracle PSU/RU`\
15-ud Y `# only install db software`
16
17   ███████                             ██          ████████ ██               ██  ██ ██                    ██              ██  ██
18  ██░░░░░██                           ░██         ██░░░░░░ ░██              ░██ ░██░██                   ░██             ░██ ░██
19 ██     ░░██ ██████  ██████    █████  ░██  █████ ░██       ░██       █████  ░██ ░██░██ ███████   ██████ ██████  ██████   ░██ ░██
20░██      ░██░░██░░█ ░░░░░░██  ██░░░██ ░██ ██░░░██░█████████░██████  ██░░░██ ░██ ░██░██░░██░░░██ ██░░░░ ░░░██░  ░░░░░░██  ░██ ░██
21░██      ░██ ░██ ░   ███████ ░██  ░░  ░██░███████░░░░░░░░██░██░░░██░███████ ░██ ░██░██ ░██  ░██░░█████   ░██    ███████  ░██ ░██
22░░██     ██  ░██    ██░░░░██ ░██   ██ ░██░██░░░░        ░██░██  ░██░██░░░░  ░██ ░██░██ ░██  ░██ ░░░░░██  ░██   ██░░░░██  ░██ ░██
23 ░░███████  ░███   ░░████████░░█████  ███░░██████ ████████ ░██  ░██░░██████ ███ ███░██ ███  ░██ ██████   ░░██ ░░████████ ███ ███
24  ░░░░░░░   ░░░     ░░░░░░░░  ░░░░░  ░░░  ░░░░░░ ░░░░░░░░  ░░   ░░  ░░░░░░ ░░░ ░░░ ░░ ░░░   ░░ ░░░░░░     ░░   ░░░░░░░░ ░░░ ░░░
25
26
27请选择安装模式 [单机(si)/单机ASM(sa)/集群(rac)] : si
28
29数据库安装模式: single
30
31请选择数据库版本 [11203/11/12/19/21] : 19
32
33数据库版本:     19
34
35#==============================================================#
36配置本地 YUM 源
37#==============================================================#
38
39[server]
40name=server
41baseurl=file:///mnt
42enabled=1
43gpgcheck=0
44
45#==============================================================#
46禁用防火墙
47#==============================================================#
48
49● firewalld.service - firewalld - dynamic firewall daemon
50   Loaded: loaded (/usr/lib/systemd/system/firewalld.service; disabled; vendor preset: enabled)
51   Active: inactive (dead)
52     Docs: man:firewalld(1)
53
54Feb 26 13:10:49 emcc systemd[1]: Starting firewalld - dynamic firewall daemon...
55Feb 26 13:10:52 emcc systemd[1]: Started firewalld - dynamic firewall daemon.
56Feb 26 13:10:53 emcc firewalld[955]: WARNING: AllowZoneDrifting is enabled. This is considered an insecure configuration option. It will be removed in a future release. Please consider disabling it now.
57Feb 26 17:23:02 emcc systemd[1]: Stopping firewalld - dynamic firewall daemon...
58Feb 26 17:23:03 emcc systemd[1]: Stopped firewalld - dynamic firewall daemon.
59
60#==============================================================#
61禁用 SELinux
62#==============================================================#
63
64SELinux status:                 enabled
65SELinuxfs mount:                /sys/fs/selinux
66SELinux root directory:         /etc/selinux
67Loaded policy name:             targeted
68Current mode:                   permissive
69Mode from config file:          disabled
70Policy MLS status:              enabled
71Policy deny_unknown status:     allowed
72Max kernel policy version:      31
73
74#==============================================================#
75YUM 静默安装依赖包
76#==============================================================#
77
78bc-1.06.95-13.el7.x86_64
79binutils-2.27-44.base.el7.x86_64
80compat-libcap1-1.10-7.el7.x86_64
81gcc-4.8.5-44.el7.x86_64
82gcc-c++-4.8.5-44.el7.x86_64
83elfutils-libelf-0.176-5.el7.x86_64
84elfutils-libelf-devel-0.176-5.el7.x86_64
85glibc-2.17-317.el7.x86_64
86glibc-devel-2.17-317.el7.x86_64
87libaio-0.3.109-13.el7.x86_64
88libaio-devel-0.3.109-13.el7.x86_64
89libgcc-4.8.5-44.el7.x86_64
90libstdc++-4.8.5-44.el7.x86_64
91libstdc++-devel-4.8.5-44.el7.x86_64
92libxcb-1.13-1.el7.x86_64
93libX11-1.6.7-2.el7.x86_64
94libXau-1.0.8-2.1.el7.x86_64
95libXi-1.7.9-1.el7.x86_64
96libXrender-0.9.10-1.el7.x86_64
97make-3.82-24.el7.x86_64
98net-tools-2.0-0.25.20131004git.el7.x86_64
99smartmontools-7.0-2.el7.x86_64
100sysstat-10.1.5-19.el7.x86_64
101e2fsprogs-1.42.9-19.el7.x86_64
102e2fsprogs-libs-1.42.9-19.el7.x86_64
103unzip-6.0-21.el7.x86_64
104openssh-clients-7.4p1-21.el7.x86_64
105readline-6.2-11.el7.x86_64
106readline-devel-6.2-11.el7.x86_64
107psmisc-22.20-17.el7.x86_64
108ksh-20120801-142.el7.x86_64
109nfs-utils-1.3.0-0.68.el7.x86_64
110tar-1.26-35.el7.x86_64
111device-mapper-multipath-0.4.9-133.el7.x86_64
112avahi-0.6.31-20.el7.x86_64
113ntp-4.2.6p5-29.el7_8.2.x86_64
114chrony-3.4-1.el7.x86_64
115libXtst-1.2.3-1.el7.x86_64
116libXrender-devel-0.9.10-1.el7.x86_64
117fontconfig-devel-2.13.0-4.3.el7.x86_64
118policycoreutils-2.5-34.el7.x86_64
119policycoreutils-python-2.5-34.el7.x86_64
120
121#==============================================================#
122配置主机名
123#==============================================================#
124
125emcc
126
127#==============================================================#
128配置 /etc/hosts 文件
129#==============================================================#
130
131127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4
132::1         localhost localhost.localdomain localhost6 localhost6.localdomain6
133
134## OracleBegin
135## Public IP
136192.168.6.66    emcc
137
138#==============================================================#
139创建用户和组
140#==============================================================#
141
142oracle 用户：
143
144uid=54321(oracle) gid=54321(oinstall) groups=54321(oinstall),54322(dba),54323(oper),54324(backupdba),54325(dgdba),54326(kmdba),54330(racdba)
145
146
147#==============================================================#
148配置 Avahi-daemon 服务
149#==============================================================#
150
151● avahi-daemon.service - Avahi mDNS/DNS-SD Stack
152   Loaded: loaded (/usr/lib/systemd/system/avahi-daemon.service; disabled; vendor preset: enabled)
153   Active: inactive (dead)
154
155Feb 26 13:10:55 emcc avahi-daemon[912]: Registering new address record for fe80::766:6bcf:8bd4:c26e on ens192.*.
156Feb 26 13:10:55 emcc avahi-daemon[912]: Joining mDNS multicast group on interface ens192.IPv4 with address 192.168.6.66.
157Feb 26 13:10:55 emcc avahi-daemon[912]: New relevant interface ens192.IPv4 for mDNS.
158Feb 26 13:10:55 emcc avahi-daemon[912]: Registering new address record for 192.168.6.66 on ens192.IPv4.
159Feb 26 13:10:59 emcc avahi-daemon[912]: Joining mDNS multicast group on interface virbr0.IPv4 with address 192.168.122.1.
160Feb 26 13:10:59 emcc avahi-daemon[912]: New relevant interface virbr0.IPv4 for mDNS.
161Feb 26 13:10:59 emcc avahi-daemon[912]: Registering new address record for 192.168.122.1 on virbr0.IPv4.
162Feb 26 17:23:46 emcc avahi-daemon[912]: Got SIGTERM, quitting.
163Feb 26 17:23:46 emcc systemd[1]: Stopping Avahi mDNS/DNS-SD Stack...
164Feb 26 17:23:46 emcc systemd[1]: Stopped Avahi mDNS/DNS-SD Stack.
165
166#==============================================================#
167配置透明大页 && NUMA && 磁盘 IO 调度器
168#==============================================================#
169
170args="ro rd.lvm.lv=rhel/root rd.lvm.lv=rhel/swap rhgb quiet LANG=en_US.UTF-8 numa=off transparent_hugepage=never elevator=deadline"
171-rd.lvm.lv=rhel/root
172-args="ro
173args="ro rd.lvm.lv=rhel/root rd.lvm.lv=rhel/swap rhgb quiet numa=off transparent_hugepage=never elevator=deadline"
174-elevator=deadline"
175-transparent_hugepage=never
176
177#==============================================================#
178配置 sysctl.conf
179#==============================================================#
180
181fs.aio-max-nr = 1048576
182fs.file-max = 6815744
183kernel.shmall = 8236430
184kernel.shmmax = 33736421375
185kernel.shmmni = 4096
186kernel.sem = 250 32000 100 128
187net.ipv4.ip_local_port_range = 9000 65500
188net.core.rmem_default = 262144
189net.core.rmem_max = 4194304
190net.core.wmem_default = 262144
191net.core.wmem_max = 1048576
192vm.min_free_kbytes = 131782
193net.ipv4.conf.ens192.rp_filter = 1
194vm.swappiness = 10
195kernel.panic_on_oops = 1
196kernel.randomize_va_space = 2
197kernel.numa_balancing = 0
198
199#==============================================================#
200配置 nsysctl.conf
201#==============================================================#
202
203NOZEROCONF=yes
204
205#==============================================================#
206配置 RemoveIPC
207#==============================================================#
208
209[Login]
210RemoveIPC=no
211
212#==============================================================#
213配置 /etc/security/limits.conf 和 /etc/pam.d/login
214#==============================================================#
215
216查看 /etc/security/limits.conf：
217
218oracle soft nofile 1024
219oracle hard nofile 65536
220oracle soft stack 10240
221oracle hard stack 32768
222oracle soft nproc 2047
223oracle hard nproc 16384
224oracle hard memlock unlimited
225oracle soft memlock unlimited
226
227查看 /etc/pam.d/login 文件：
228
229auth [user_unknown=ignore success=ok ignore=ignore default=bad] pam_securetty.so
230auth       substack     system-auth
231auth       include      postlogin
232account    required     pam_nologin.so
233account    include      system-auth
234password   include      system-auth
235session    required     pam_selinux.so close
236session    required     pam_loginuid.so
237session    optional     pam_console.so
238session    required     pam_selinux.so open
239session    required     pam_namespace.so
240session    optional     pam_keyinit.so force revoke
241session    include      system-auth
242session    include      postlogin
243-session   optional     pam_ck_connector.so
244session required pam_limits.so
245session required /lib64/security/pam_limits.so
246
247#==============================================================#
248配置 /dev/shm
249#==============================================================#
250
251/dev/mapper/rhel-root   /                       xfs     defaults        0 0
252UUID=903148b2-0a13-4241-bfe1-05bf3096b2a3 /boot                   xfs     defaults        0 0
253/dev/mapper/rhel-swap   swap                    swap    defaults        0 0
254/swapfile none swap sw 0 0
255tmpfs /dev/shm tmpfs size=32945724k 0 0
256
257#==============================================================#
258安装 rlwrap 插件
259#==============================================================#
260
261成功安装 rlwrap： rlwrap 0.44
262
263#==============================================================#
264Root 用户环境变量
265#==============================================================#
266
267if [ -f ~/.bashrc ]; then
268        . ~/.bashrc
269fi
270PATH=$PATH:$HOME/bin
271export PATH
272alias so='su - oracle'
273export PS1="[`whoami`@`hostname`:"'$PWD]$ '
274
275#==============================================================#
276Oracle 用户环境变量
277#==============================================================#
278
279if [ -f ~/.bashrc ]; then
280        . ~/.bashrc
281fi
282PATH=$PATH:$HOME/.local/bin:$HOME/bin
283export PATH
284umask 022
285export TMP=/tmp
286export TMPDIR=$TMP
287export NLS_LANG=AMERICAN_AMERICA.AL32UTF8
288export ORACLE_BASE=/u01/app/oracle
289export ORACLE_HOME=/u01/app/oracle/product/19.3.0/db
290export ORACLE_TERM=xterm
291export TNS_ADMIN=$ORACLE_HOME/network/admin
292export LD_LIBRARY_PATH=$ORACLE_HOME/lib:/lib:/usr/lib
293export ORACLE_SID=emcc
294export PATH=/usr/sbin:$PATH
295export PATH=$ORACLE_HOME/bin:$ORACLE_HOME/OPatch:$ORACLE_HOME/perl/bin:$PATH
296export PERL5LIB=$ORACLE_HOME/perl/lib
297alias sas='sqlplus / as sysdba'
298alias awr='sqlplus / as sysdba @?/rdbms/admin/awrrpt'
299alias ash='sqlplus / as sysdba @?/rdbms/admin/ashrpt'
300alias alert='vi $ORACLE_BASE/diag/rdbms/*/$ORACLE_SID/trace/alert_$ORACLE_SID.log'
301export PS1="[`whoami`@`hostname`:"'$PWD]$ '
302alias sqlplus='rlwrap sqlplus'
303alias rman='rlwrap rman'
304alias adrci='rlwrap adrci'
305
306#==============================================================#
307静默解压 Oracle 软件包
308#==============================================================#
309
310正在静默解压缩 Oracle 软件包，请稍等：
311
312.---- -. -. .  .   .        .
313( .',----- - - ' '      '                                         __
314 \_/      ;--:-          __--------------------___  ____=========_||___
315__U__n_^_''__[.  ooo___  | |_!_||_!_||_!_||_!_| |   |..|_i_|..|_i_|..|
316c(_ ..(_ ..(_ ..( /,,,,,,] | |___||___||___||___| |   |                |
317,_\___________'_|,L______],|______________________|_i,!________________!_i
318/;_(@)(@)==(@)(@)   (o)(o)      (o)^(o)--(o)^(o)          (o)(o)-(o)(o)
319""~"""~"""~"""~"""~"""~"""~"""~"""~"""~"""~"""~"""~"""~"""~"""~"""~"""~"""~"""~"'""
320
321
322静默解压 Oracle 软件安装包： /soft/LINUX.X64_193000_db_home.zip
323
324静默解压 OPatch 软件补丁包： /soft/p6880880_*.zip
325
326静默解压 Oracle 软件补丁包： /soft/p35943157*.zip
327
328#==============================================================#
329Oracle 安装静默文件
330#==============================================================#
331
332oracle.install.option=INSTALL_DB_SWONLY
333UNIX_GROUP_NAME=oinstall
334INVENTORY_LOCATION=/u01/app/oraInventory
335ORACLE_BASE=/u01/app/oracle
336oracle.install.db.InstallEdition=EE
337oracle.install.db.DBA_GROUP=dba
338oracle.install.db.OPER_GROUP=oper
339oracle.install.db.OSBACKUPDBA_GROUP=backupdba
340oracle.install.db.OSDGDBA_GROUP=dgdba
341oracle.install.db.OSKMDBA_GROUP=kmdba
342oracle.install.db.OSRACDBA_GROUP=racdba
343oracle.install.db.rootconfig.executeRootScript=false
344oracle.install.db.rootconfig.configMethod=
345oracle.install.responseFileVersion=/oracle/install/rspfmt_dbinstall_response_schema_v19.0.0
346
347#==============================================================#
348静默安装数据库软件
349#==============================================================#
350
351Preparing the home to patch...
352Applying the patch /soft/35943157...
353Successfully applied the patch.
354The log can be found at: /tmp/InstallActions2024-02-26_05-25-50PM/installerPatchActions_2024-02-26_05-25-50PM.log
355Launching Oracle Database Setup Wizard...
356
357[WARNING] [INS-13014] Target environment does not meet some optional requirements.
358   CAUSE: Some of the optional prerequisites are not met. See logs for details. installActions2024-02-26_05-25-50PM.log
359   ACTION: Identify the list of failed prerequisite checks from the log: installActions2024-02-26_05-25-50PM.log. Then either from the log file or from installation manual find the appropriate configuration to meet the prerequisites and fix it manually.
360The response file for this session can be found at:
361 /u01/app/oracle/product/19.3.0/db/install/response/db_2024-02-26_05-25-50PM.rsp
362
363You can find the log of this install session at:
364 /tmp/InstallActions2024-02-26_05-25-50PM/installActions2024-02-26_05-25-50PM.log
365
366As a root user, execute the following script(s):
367        1. /u01/app/oraInventory/orainstRoot.sh
368        2. /u01/app/oracle/product/19.3.0/db/root.sh
369
370Execute /u01/app/oraInventory/orainstRoot.sh on the following nodes:
371[emcc]
372Execute /u01/app/oracle/product/19.3.0/db/root.sh on the following nodes:
373[emcc]
374
375
376Successfully Setup Software with warning(s).
377Moved the install session logs to:
378 /u01/app/oraInventory/logs/InstallActions2024-02-26_05-25-50PM
379
380#==============================================================#
381执行 root 脚本
382#==============================================================#
383
384Changing permissions of /u01/app/oraInventory.
385Adding read,write permissions for group.
386Removing read,write,execute permissions for world.
387
388Changing groupname of /u01/app/oraInventory to oinstall.
389The execution of the script is complete.
390Check /u01/app/oracle/product/19.3.0/db/install/root_emcc_2024-02-26_17-35-44-735619943.log for the output of root script
391
392#==============================================================#
393Oracle 软件版本
394#==============================================================#
395
396
397SQL*Plus: Release 19.0.0.0.0 - Production
398Version 19.22.0.0.0
399
400
401#==============================================================#
402Oracle 补丁信息
403#==============================================================#
404
40535943157;Database Release Update : 19.22.0.0.240116 (35943157)
40629585399;OCW RELEASE UPDATE 19.3.0.0.0 (29585399)
407
408OPatch succeeded.
409
410
411#==============================================================#
412配置监听
413#==============================================================#
414
415
416Parsing command line arguments:
417    Parameter "silent" = true
418    Parameter "responsefile" = /u01/app/oracle/product/19.3.0/db/assistants/netca/netca.rsp
419Done parsing command line arguments.
420Oracle Net Services Configuration:
421Profile configuration complete.
422Oracle Net Listener Startup:
423    Running Listener Control:
424      /u01/app/oracle/product/19.3.0/db/bin/lsnrctl start LISTENER
425    Listener Control complete.
426    Listener started successfully.
427Listener configuration complete.
428Oracle Net Services configuration successful. The exit code is 0
429
430检查监听状态：
431
432
433LSNRCTL for Linux: Version 19.0.0.0.0 - Production on 26-FEB-2024 17:35:54
434
435Copyright (c) 1991, 2023, Oracle.  All rights reserved.
436
437Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=emcc)(PORT=1521)))
438STATUS of the LISTENER
439------------------------
440Alias                     LISTENER
441Version                   TNSLSNR for Linux: Version 19.0.0.0.0 - Production
442Start Date                26-FEB-2024 17:35:54
443Uptime                    0 days 0 hr. 0 min. 0 sec
444Trace Level               off
445Security                  ON: Local OS Authentication
446SNMP                      OFF
447Listener Parameter File   /u01/app/oracle/product/19.3.0/db/network/admin/listener.ora
448Listener Log File         /u01/app/oracle/diag/tnslsnr/emcc/listener/alert/log.xml
449Listening Endpoints Summary...
450  (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=emcc)(PORT=1521)))
451  (DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=EXTPROC1521)))
452The listener supports no services
453The command completed successfully
454
455恭喜！Oracle 单机安装成功，现在是否重启主机：[Y/N]

默认使用专业版脚本。脚本下载：ora100.com/shell-install

创建 Oracle EMCC TEMPLATE 数据库

Bash

1## 解压模板
2[oracle@emcc:/home/oracle]$ unzip -q /soft/19_11_0_0_0_Database_Template_for_EM13_5_0_0_0_Linux_x64.zip -d $ORACLE_HOME/assistants/dbca/templates
3[oracle@emcc:/home/oracle]$ cd $ORACLE_HOME/assistants/dbca/templates
4[oracle@emcc:/u01/app/oracle/product/19.3.0/db/assistants/dbca/templates]$ ll
5total 916436
6-rw-r-----. 1 oracle oinstall  10928128 Apr 23  2021 19_11_0_0_0_Database_Template_for_EM13_5_0_0_0.ctl
7-rw-r-----. 1 oracle oinstall 547594240 Apr 23  2021 19_11_0_0_0_Database_Template_for_EM13_5_0_0_0.dfb
8-rw-r--r--. 1 oracle oinstall      6002 Jul  2  2021 19_11_0_0_0_Database_Template_for_EM13_5_0_0_0_Large_deployment.dbc
9-rw-r--r--. 1 oracle oinstall      5999 Jul  2  2021 19_11_0_0_0_Database_Template_for_EM13_5_0_0_0_Medium_deployment.dbc
10-rw-r--r--. 1 oracle oinstall      5998 Jul  2  2021 19_11_0_0_0_Database_Template_for_EM13_5_0_0_0_Small_deployment.dbc
11-rw-r-----. 1 oracle oinstall      4888 Apr 17  2019 Data_Warehouse.dbc
12-rw-r-----. 1 oracle oinstall      4768 Apr 17  2019 General_Purpose.dbc
13-rw-r-----. 1 oracle oinstall     10772 Apr  6  2019 New_Database.dbt
14-rw-r-----. 1 oracle oinstall  86548480 Apr 17  2019 pdbseed.dfb
15-rw-r-----. 1 oracle oinstall      6611 Apr 17  2019 pdbseed.xml
16-rw-r-----. 1 oracle oinstall  18726912 Apr 17  2019 Seed_Database.ctl
17-rw-r-----. 1 oracle oinstall 274554880 Apr 17  2019 Seed_Database.dfb
18-rw-r--r--. 1 oracle oinstall      3092 Jul  2  2021 set_repo_param_19_11_0_0_0_Database_SQL_for_EM13_5_0_0_0_Large_deployment.sql
19-rw-r--r--. 1 oracle oinstall      3095 Jul  2  2021 set_repo_param_19_11_0_0_0_Database_SQL_for_EM13_5_0_0_0_Medium_deployment.sql
20-rw-r--r--. 1 oracle oinstall      2980 Jul  2  2021 set_repo_param_19_11_0_0_0_Database_SQL_for_EM13_5_0_0_0_Small_deployment.sql
21-rw-r--r--. 1 oracle oinstall      1777 Jul  1  2021 shpool_19_11_0_0_0_Database_SQL_for_EM13_5_0_0_0.sql
22
23## 启动监听
24[oracle@emcc:/home/oracle]$ lsnrctl start

DBCA 建库

Bash

1## 使用 dbca 图形化建库

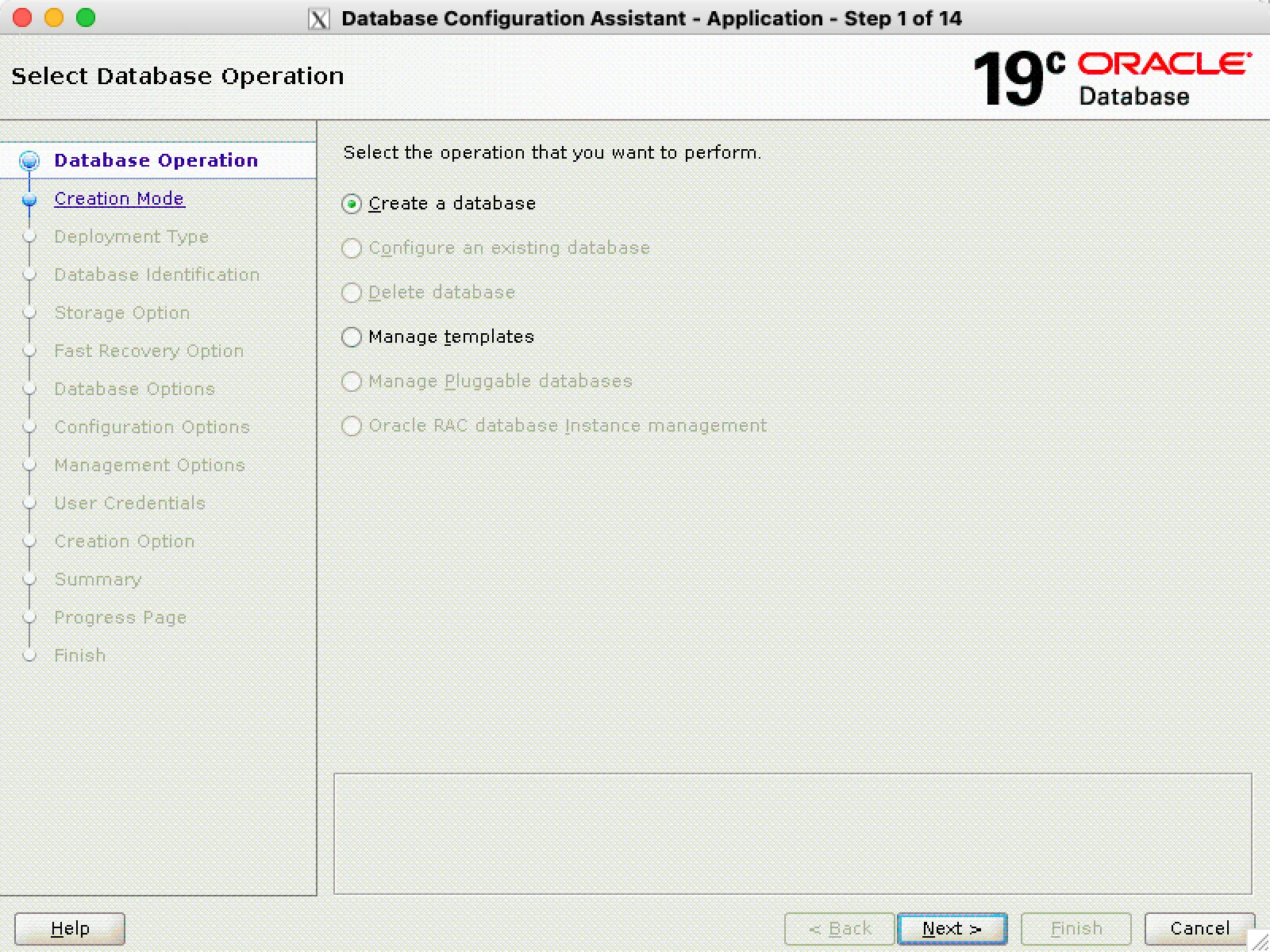

2[oracle@emcc:/home/oracle]$ dbca

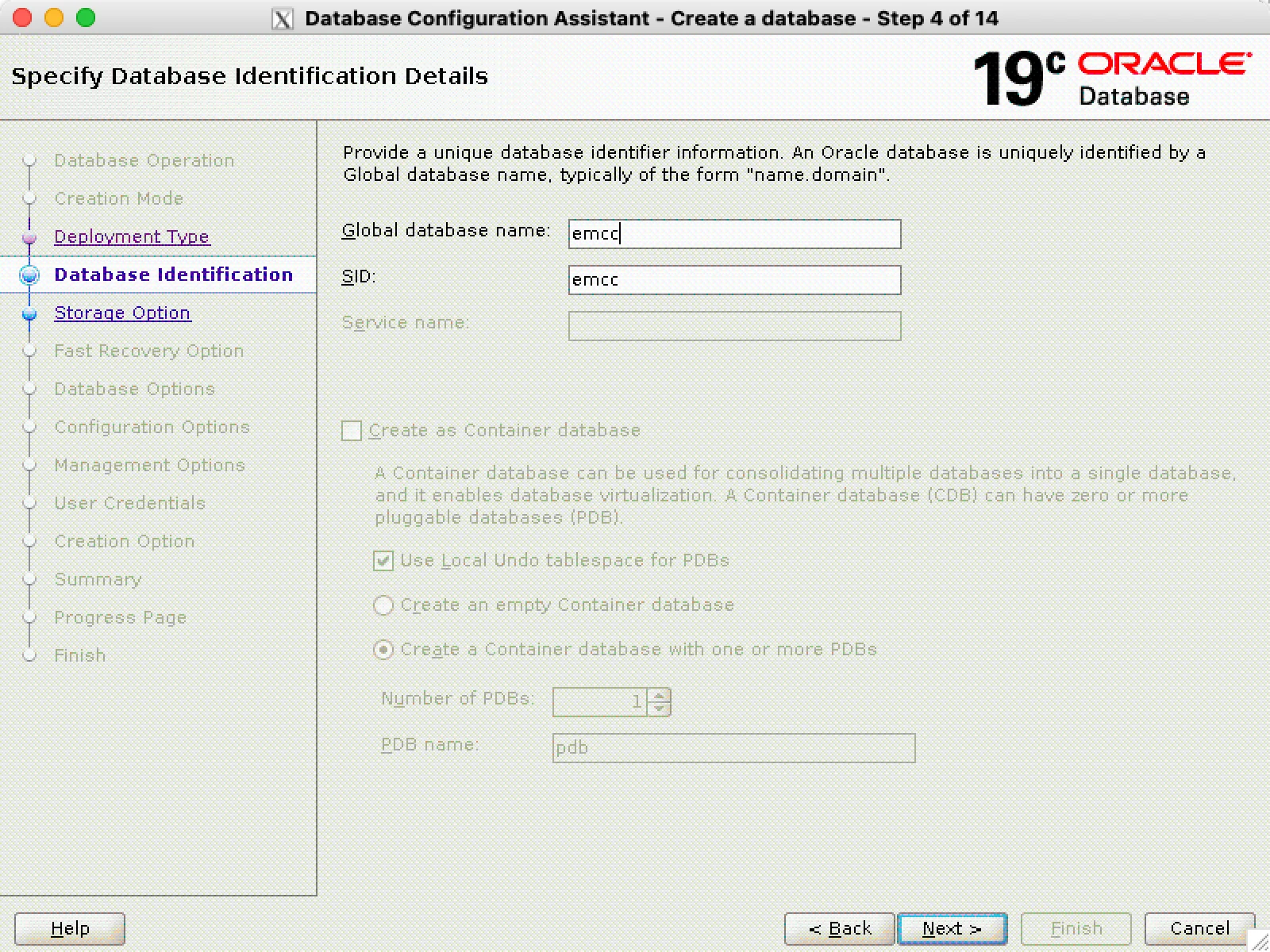

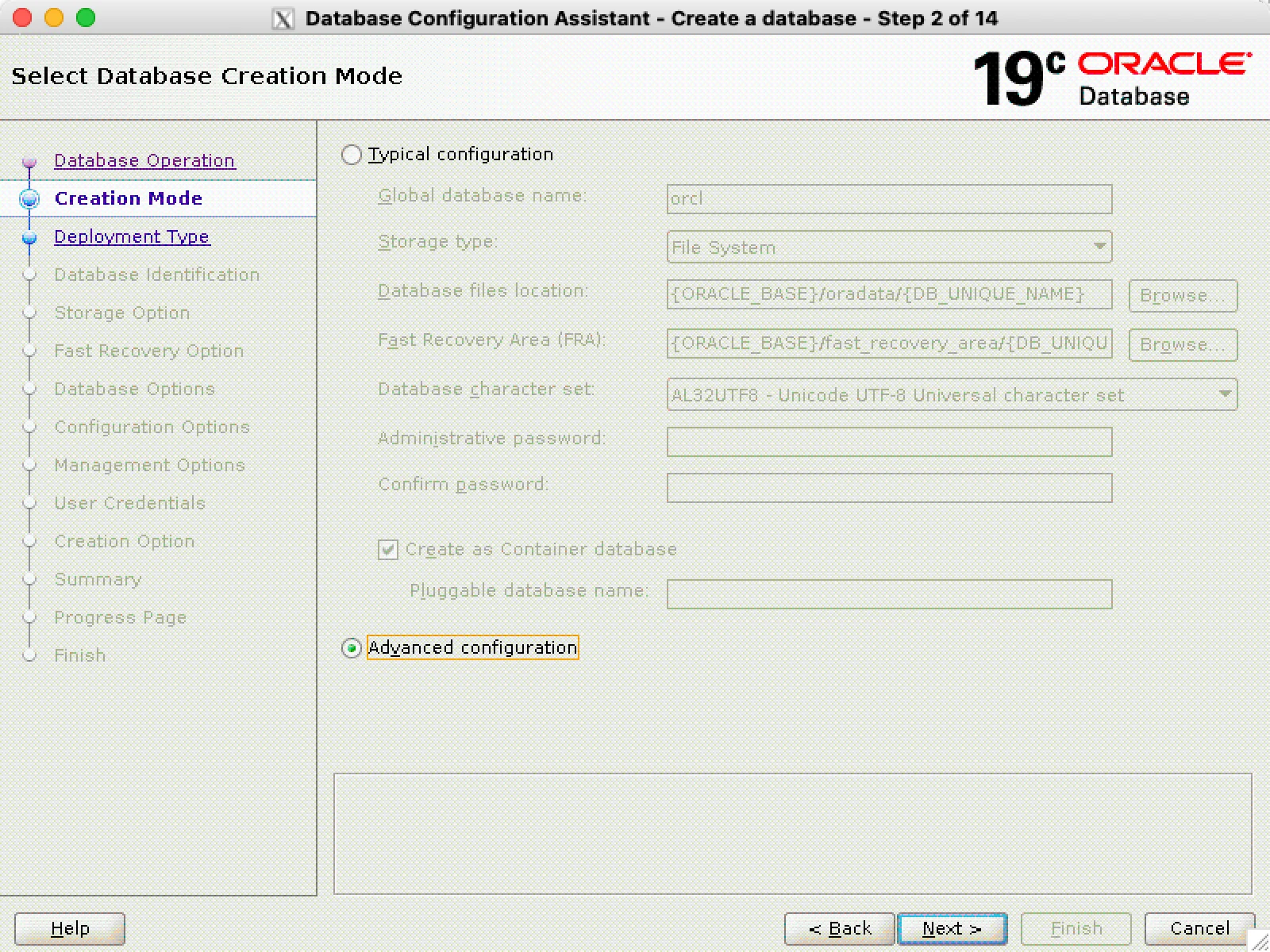

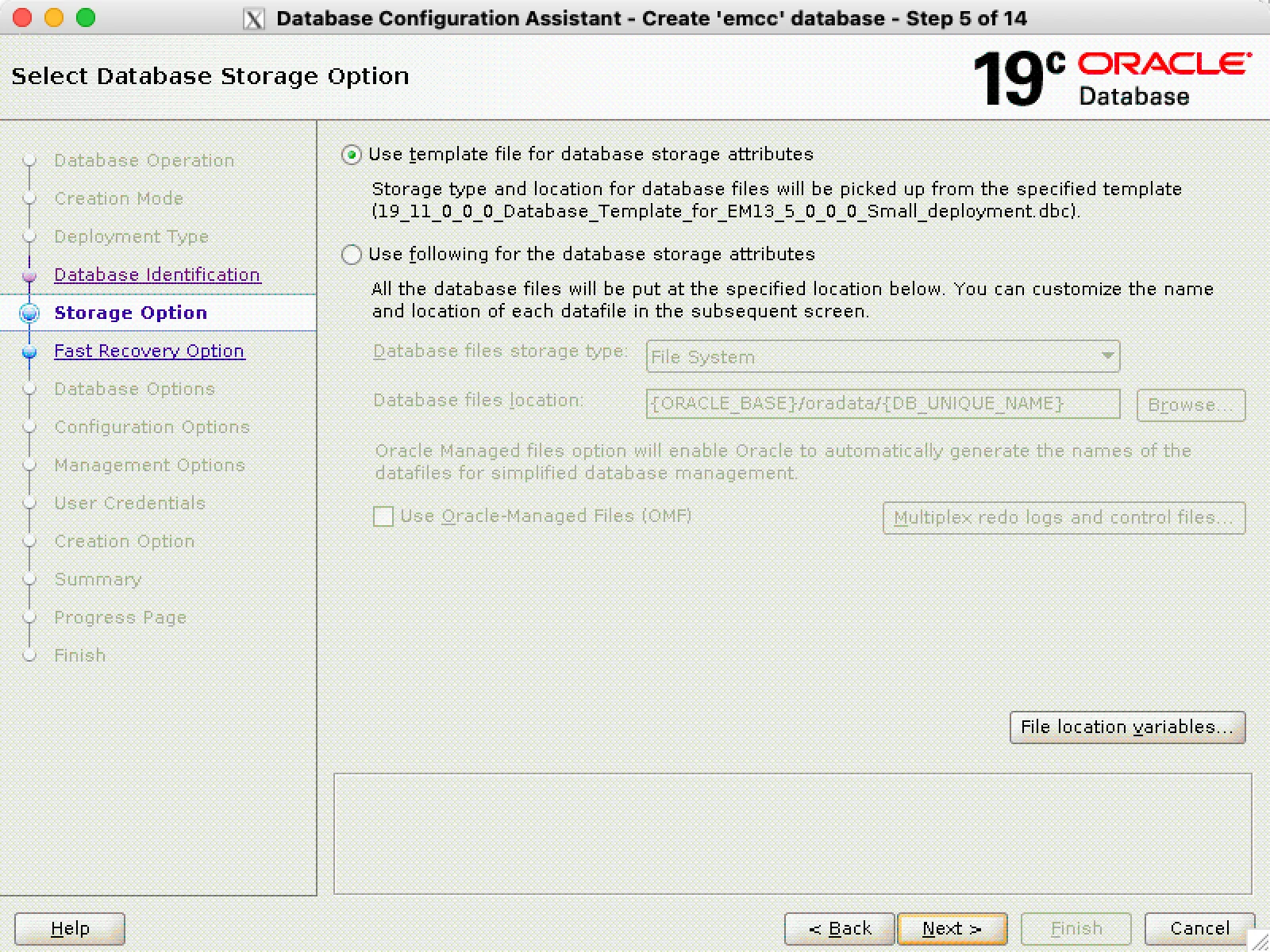

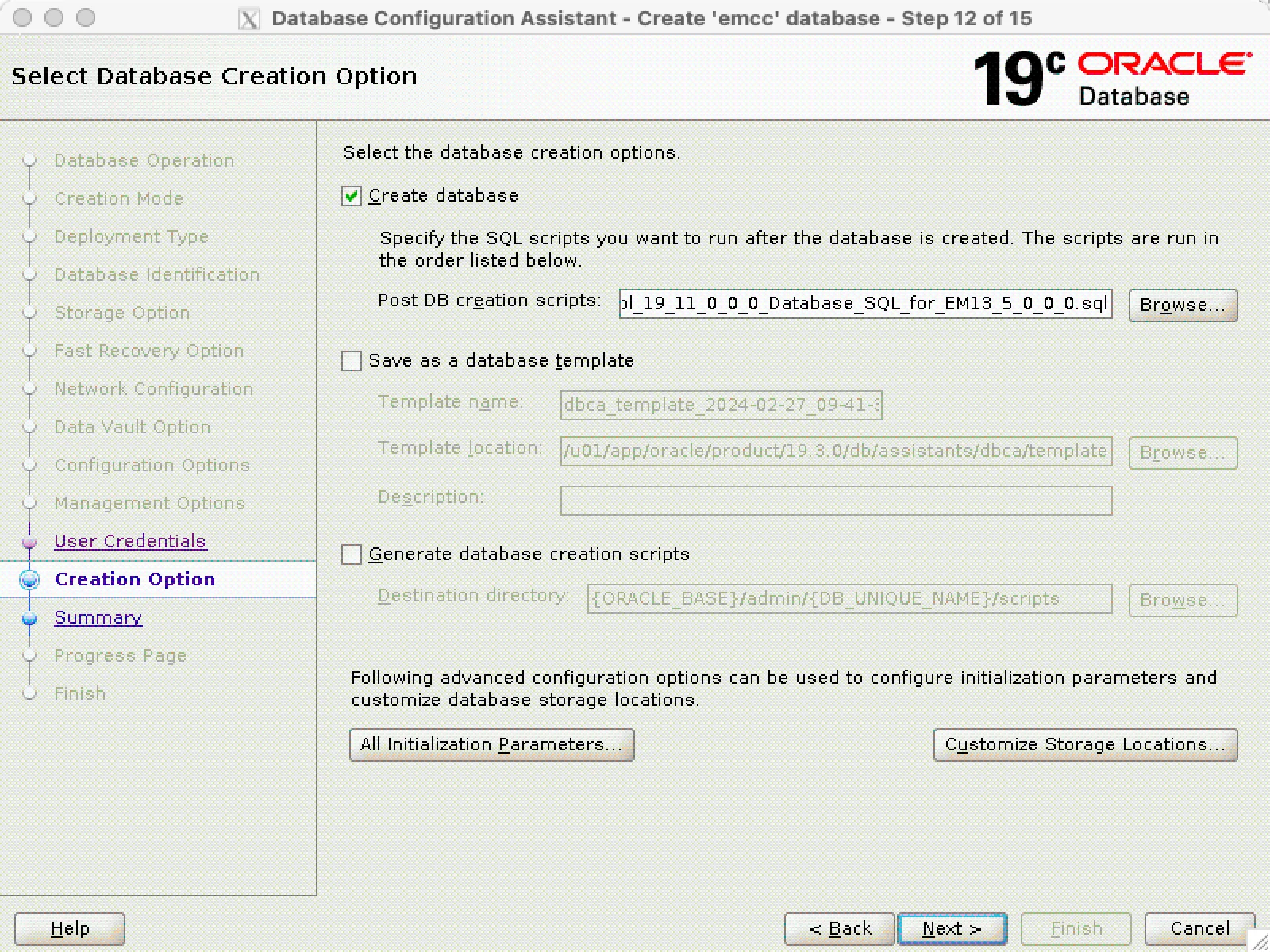

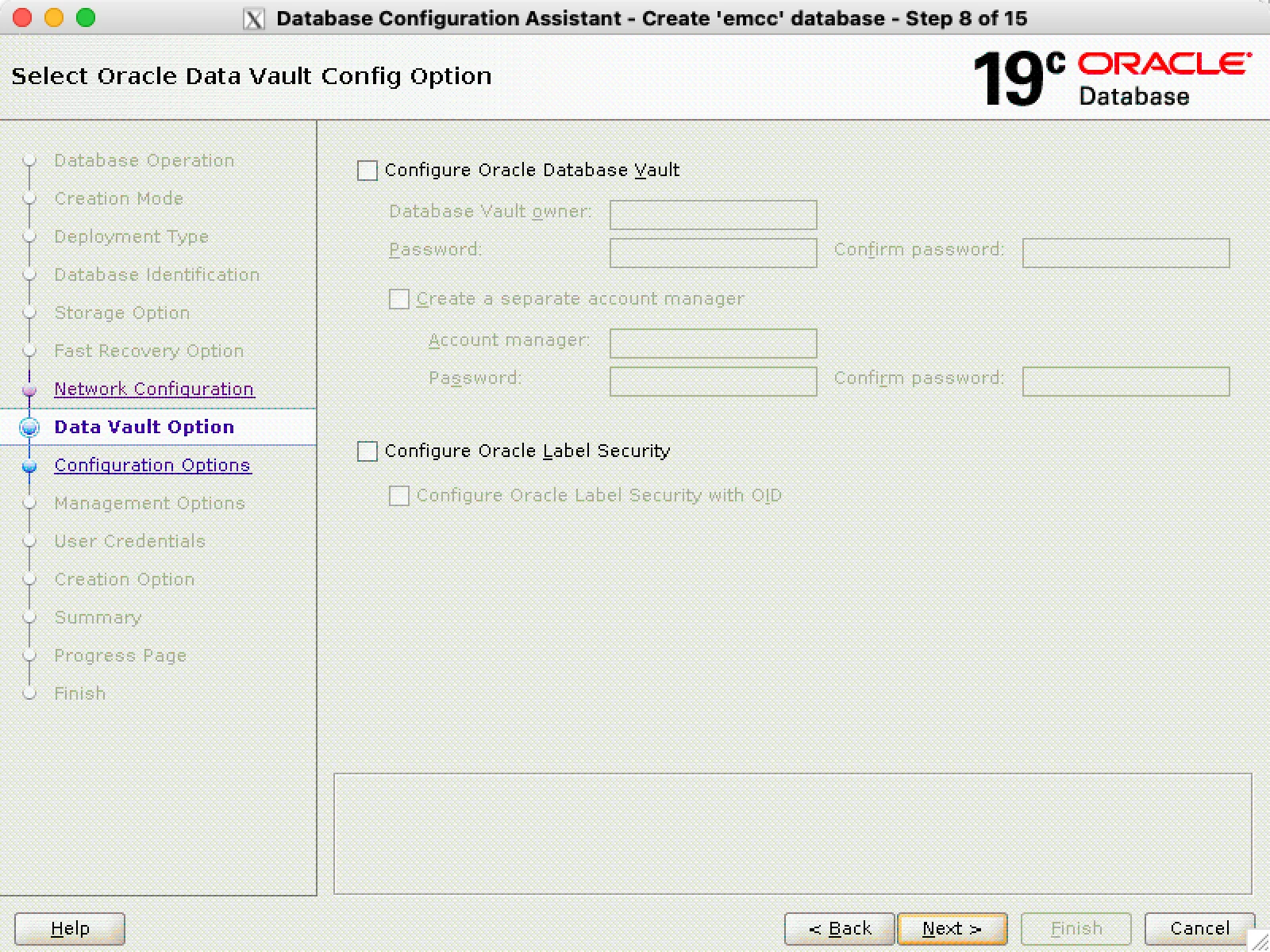

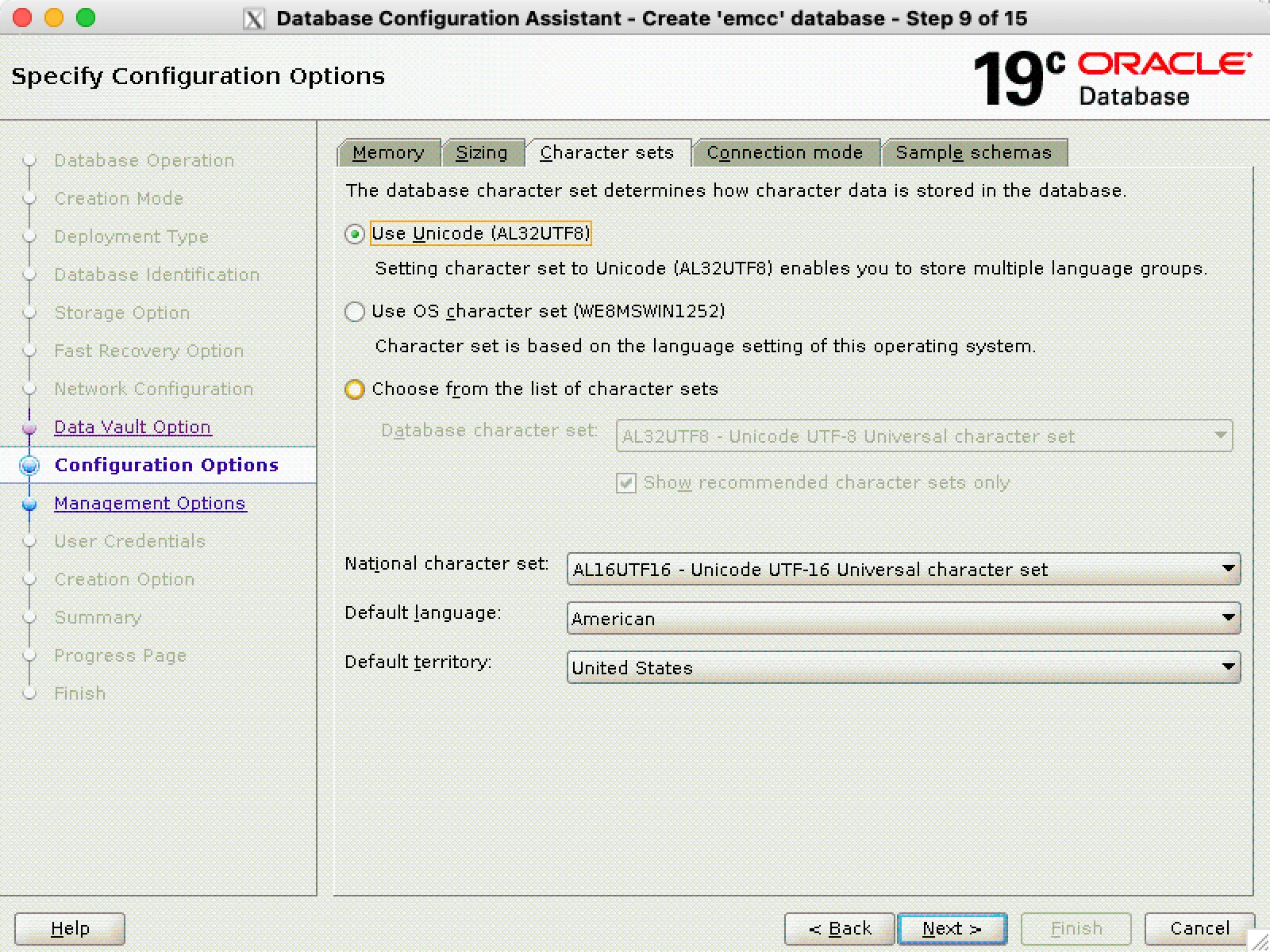

以下为图形化建库过程：

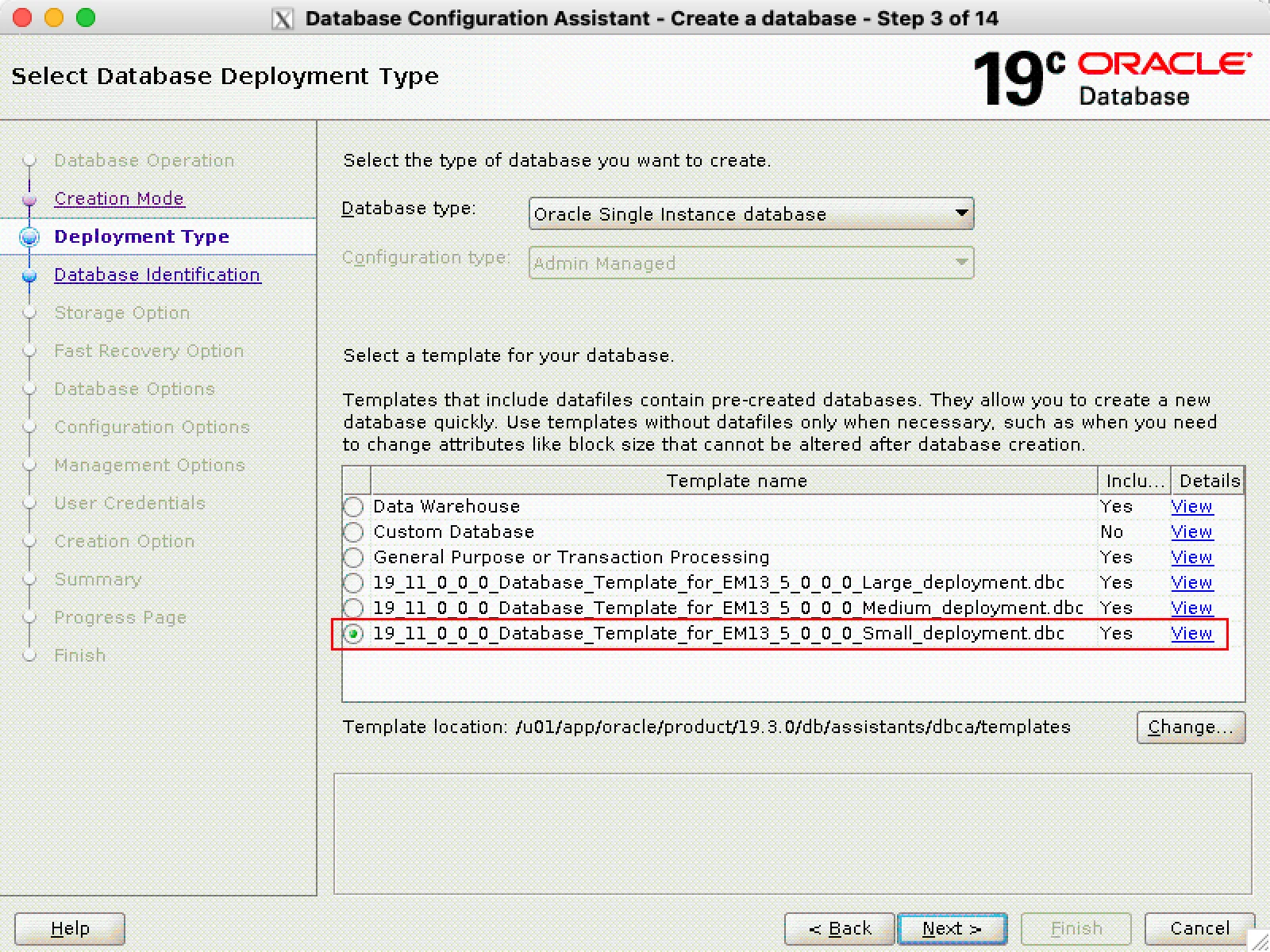

这里选择上面我们解压的模板（根据所需选择，这里我选择 Small）：

建议不开启归档，减少后续运维事项：

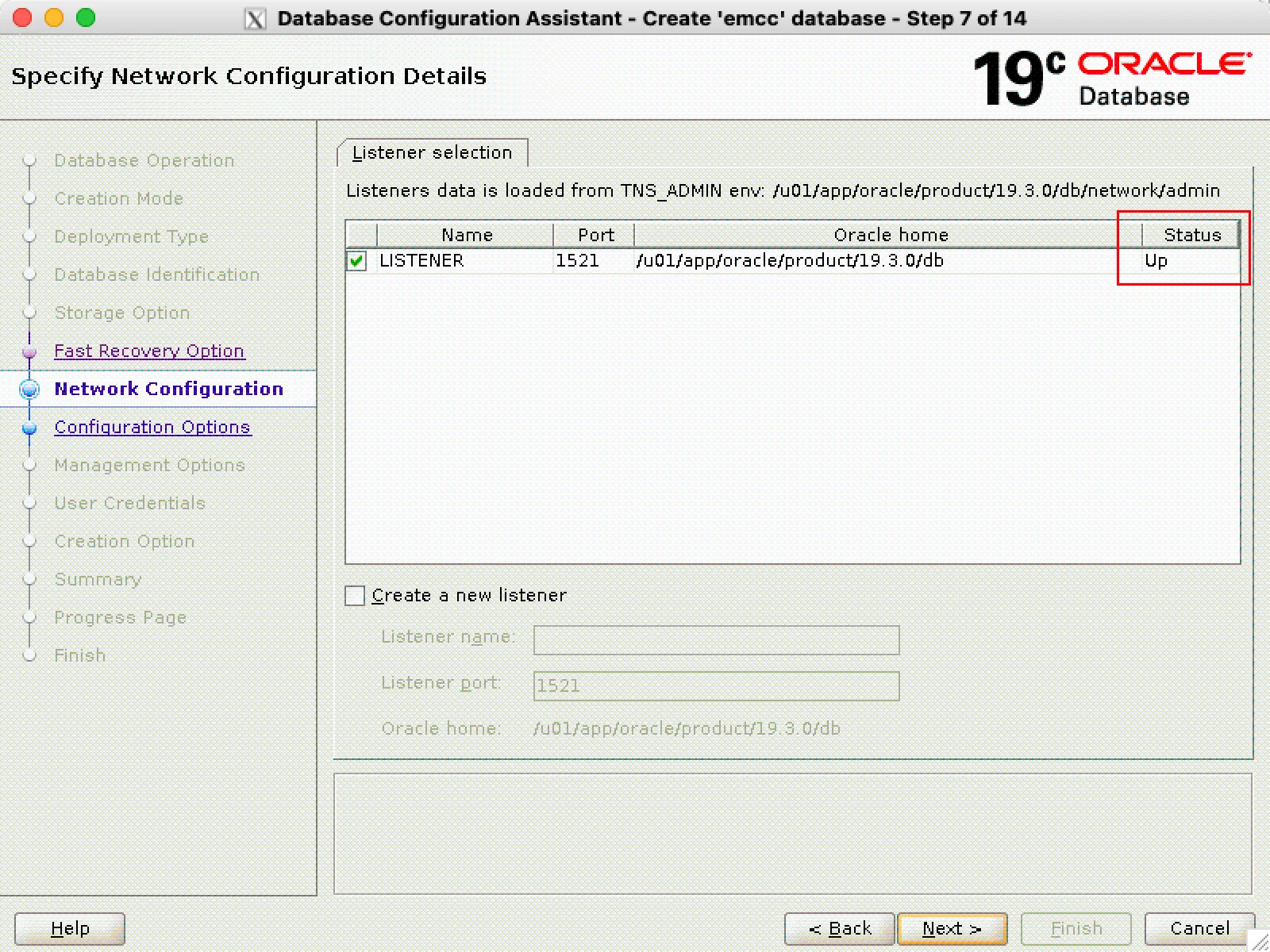

注意监听状态需要提前开启，否则会报错：

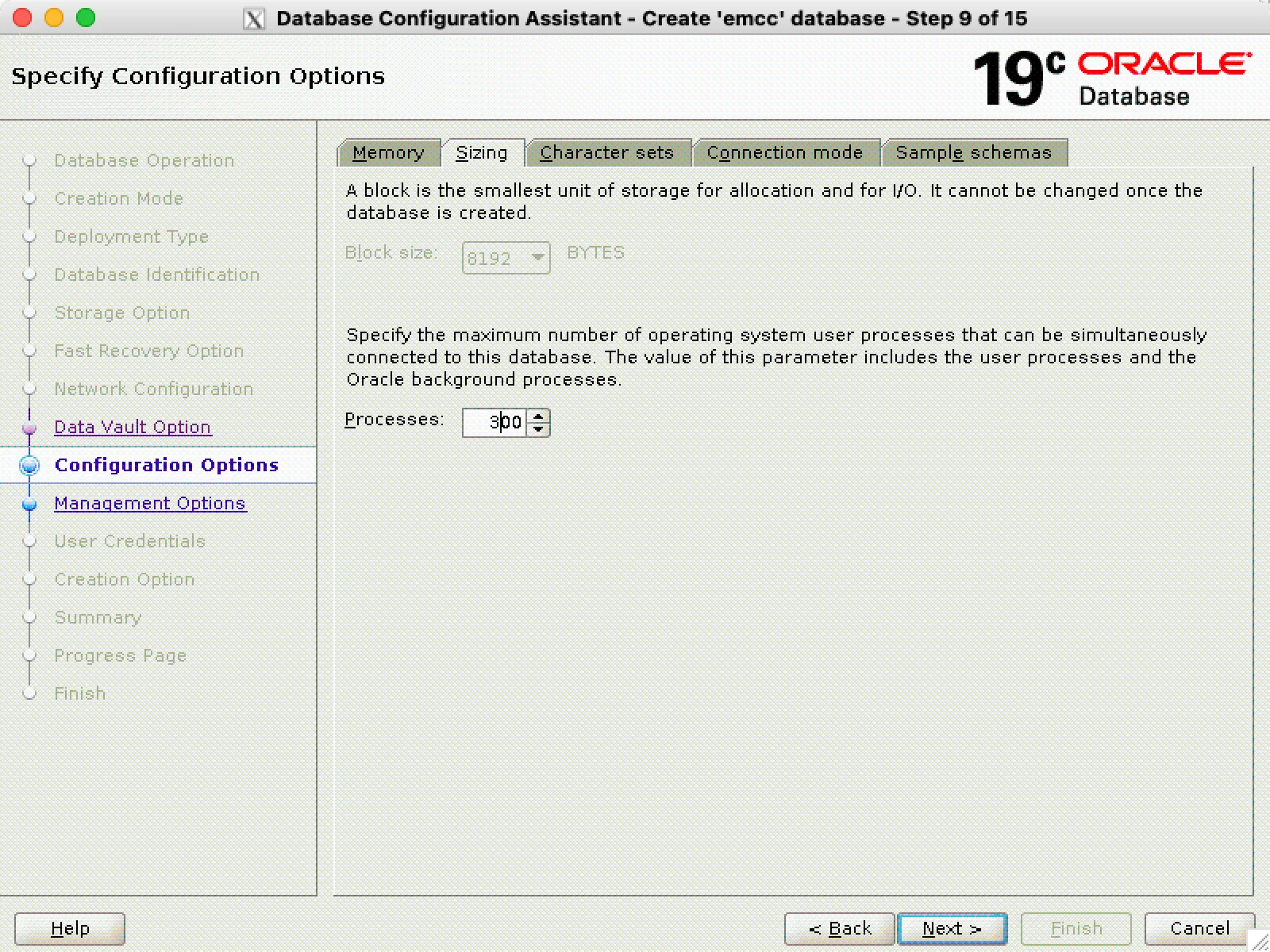

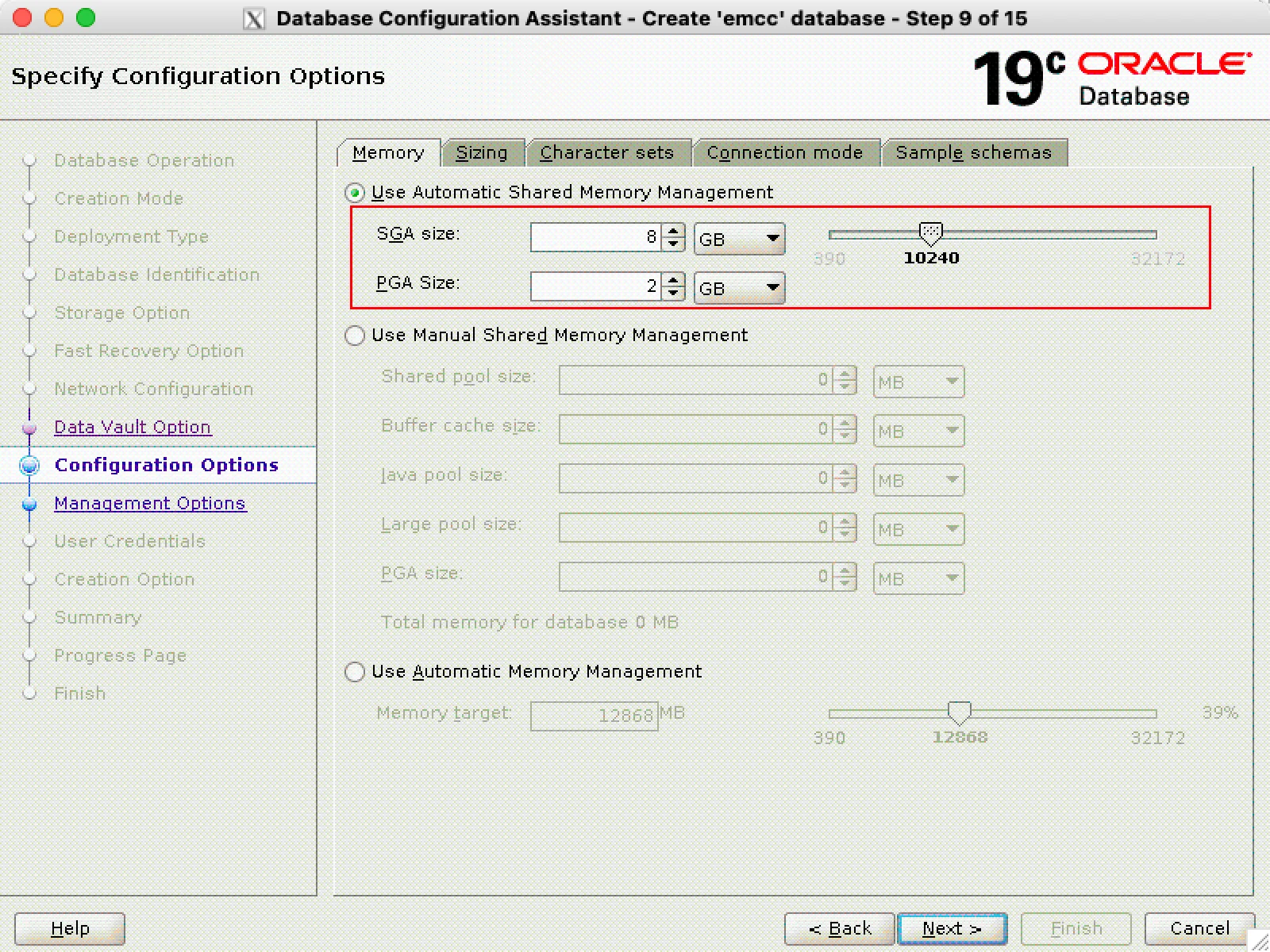

19C 数据库内存尽量设置在 8G 以上：

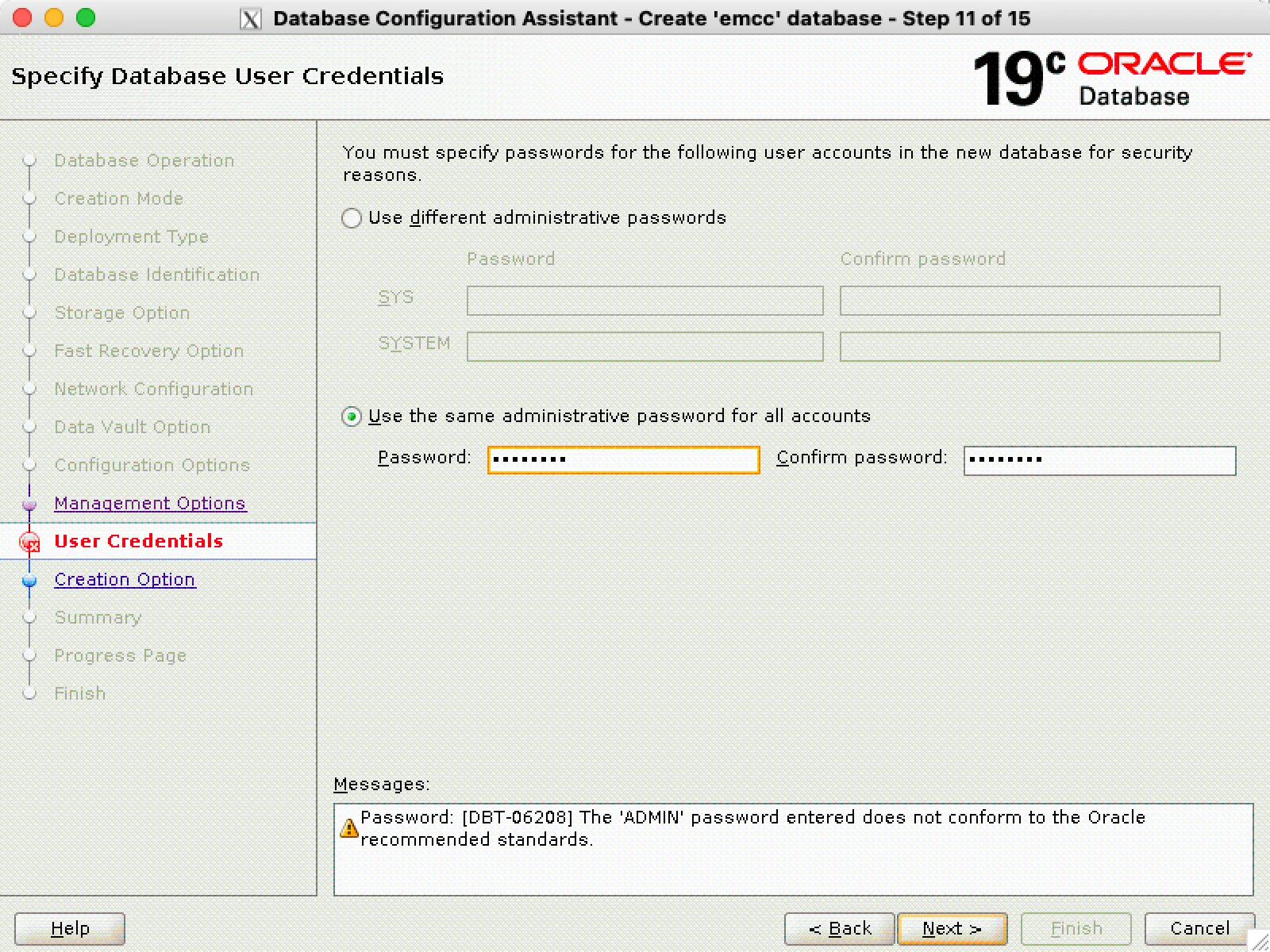

密码不符合复杂度也没关系，点击 YES 就行：

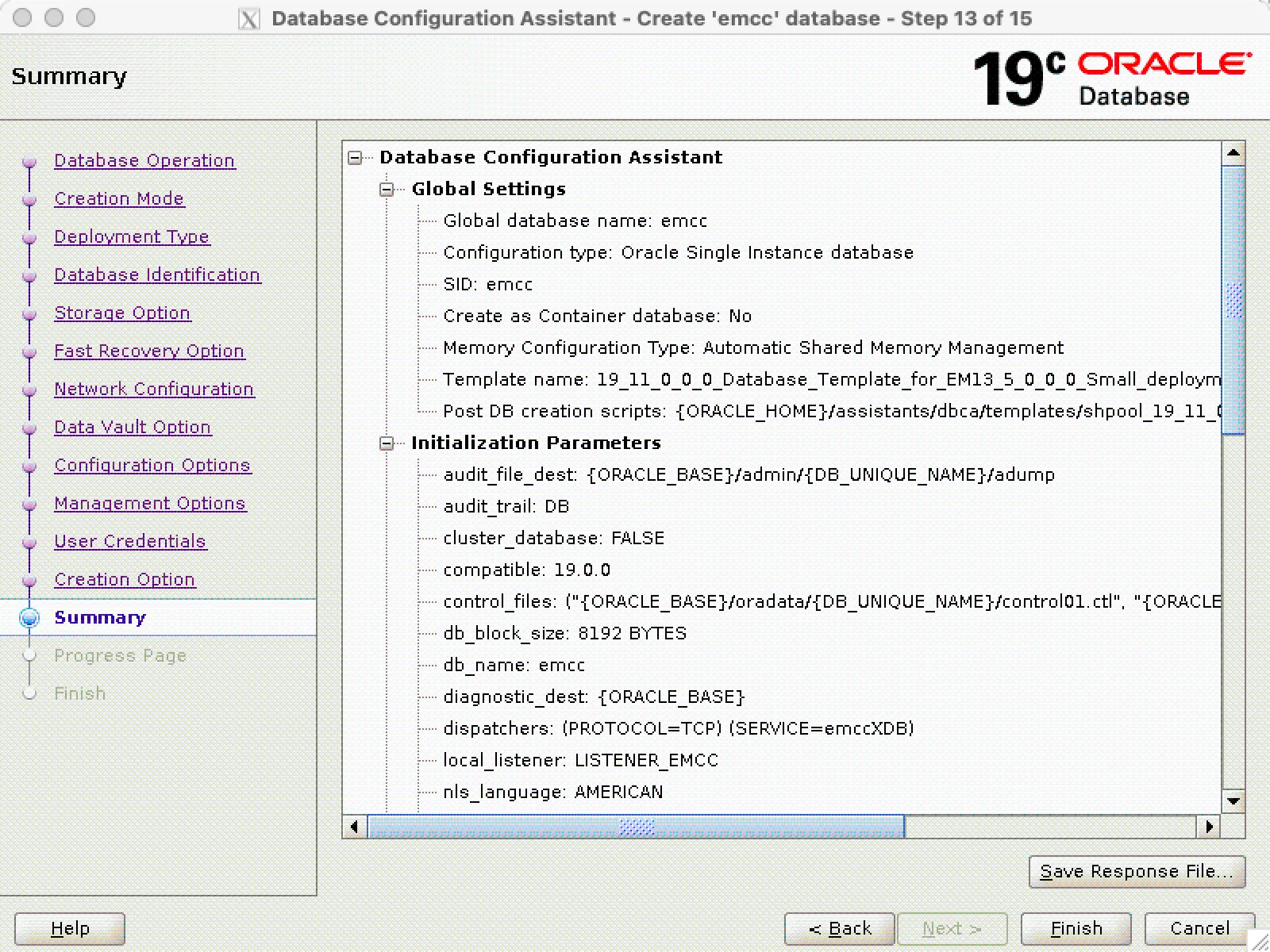

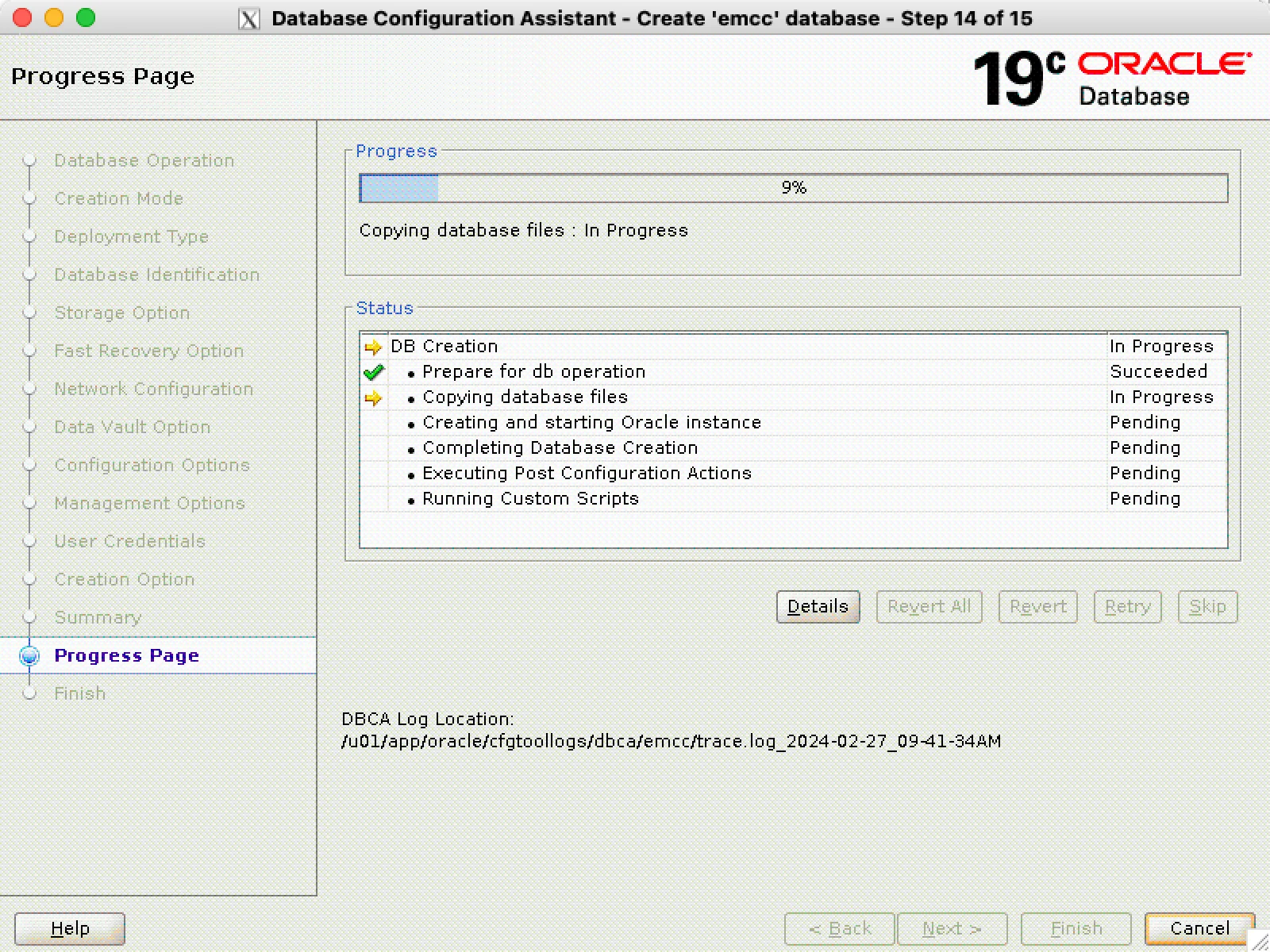

开始创建数据库：

等待完成即可：

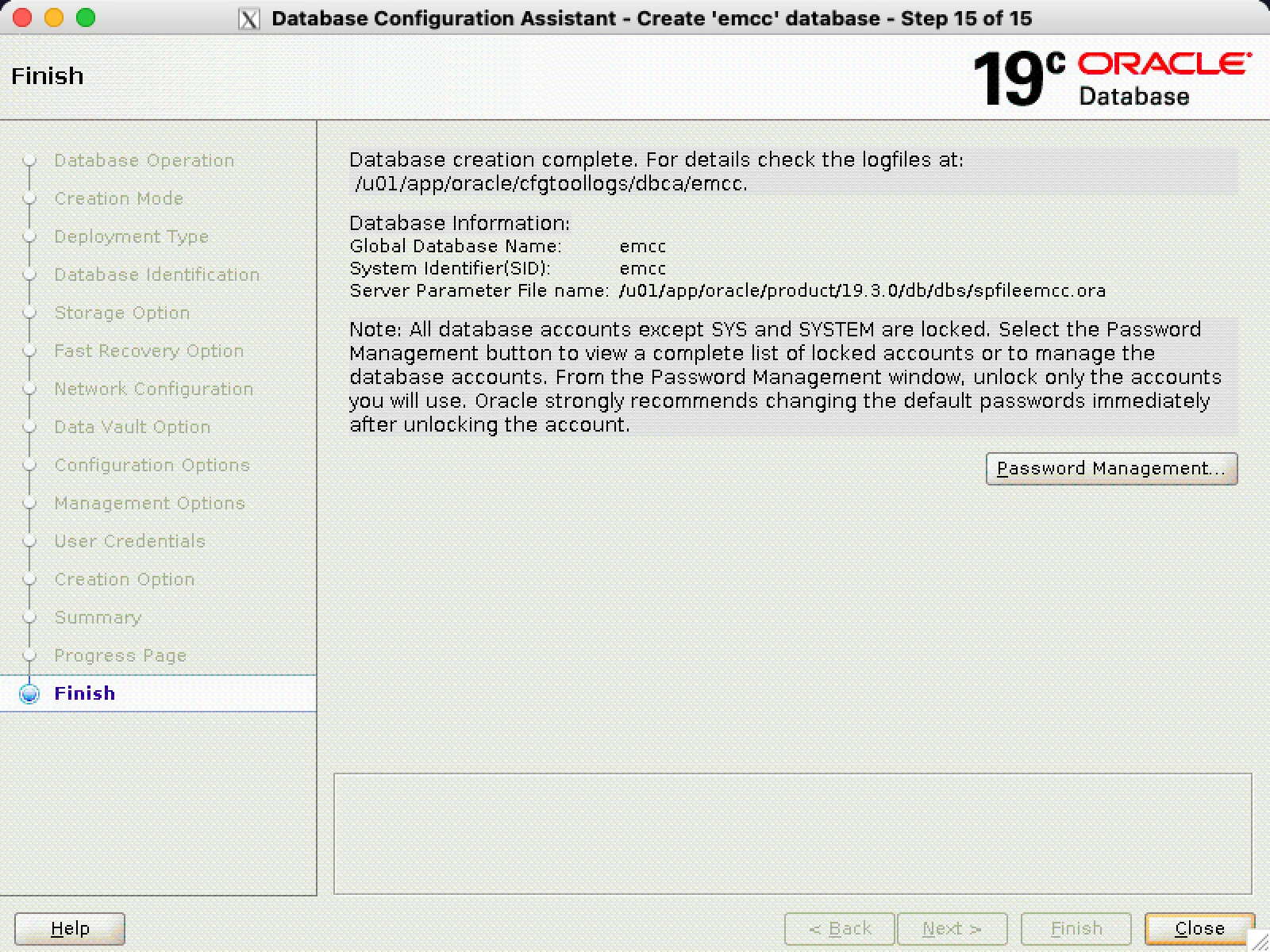

至此，数据库创建完成。

数据库修改参数

SQL

1alter database add  logfile  group 4 '/u01/app/oracle/oradata/EMCC/redo04.log' size 300M;
2alter database add  logfile  group 5 '/u01/app/oracle/oradata/EMCC/redo05.log' size 300M;
3
4exec dbms_auto_task_admin.disable();
5exec dbms_auto_task_admin.disable(client_name => 'auto optimizer stats collection',operation => null,window_name => null);
6
7-- 设置参数_allow_insert_with_update_check=true
8alter system set "_allow_insert_with_update_check"=true;
9
10-- Oracle 建议通过连接到数据库SYSDBA并运行以下命令来重置优化器自适应功能参数：
11alter system reset "_optimizer_nlj_hj_adaptive_join" scope=both sid='*';
12alter system reset "_optimizer_strans_adaptive_pruning" scope=both sid='*';
13alter system reset "_px_adaptive_dist_method" scope=both sid='*';
14alter system reset "_sql_plan_directive_mgmt_control" scope=both sid='*';
15alter system reset "_optimizer_dsdir_usage_control" scope=both sid='*';
16alter system reset "_optimizer_use_feedback" scope=both sid='*';
17alter system reset "_optimizer_gather_feedback" scope=both sid='*';
18alter system reset "_optimizer_performance_feedback" scope=both sid='*';
19
20alter profile default limit password_life_time unlimited;

重启数据库生效。

EMCC 安装准备

emcc 依赖包安装

参考官方文档：Package Requirements for Enterprise Manager Cloud Control

Bash

1## root 用户下执行
2yum install -y binutils compat-libcap1 compat-libstdc++ gcc gcc-c++ glibc glibc-devel libaio libaio-devel libgcc libstdc++ libstdc++-devel dejavu-serif-fonts ksh make sysstat numactl numactl-devel motif motif-devel redhat-lsb redhat-lsb-core OpenSSL

额外安装 glibc-devel.i686

Bash

1[root@emcc:/soft]$ cd /mnt/Packages
2[root@emcc:/mnt/Packages]$ ls -l|grep glibc-devel*i686*.rpm
3-r--r--r--. 1 root root  1128248 May 20  2020 glibc-devel-2.17-317.el7.i686.rpm
4[root@emcc:/mnt/Packages]$ yum install -y glibc-devel-2.17-317.el7.i686.rpm

检查是否安装成功：

Bash

1rpm -q binutils compat-libcap1 compat-libstdc++ gcc gcc-c++ glibc glibc-devel libaio libaio-devel libgcc libstdc++ libstdc++-devel dejavu-serif-fonts ksh make sysstat numactl numactl-devel motif motif-devel redhat-lsb redhat-lsb-core OpenSSL --qf '%{name}.%{arch}\n'
2
3## 输出结果
4binutils.x86_64
5compat-libcap1.x86_64
6package compat-libstdc++ is not installed
7gcc.x86_64
8gcc-c++.x86_64
9glibc.x86_64
10glibc.i686
11glibc-devel.x86_64
12glibc-devel.i686
13libaio.x86_64
14libaio-devel.x86_64
15libgcc.x86_64
16libstdc++.x86_64
17libstdc++-devel.x86_64
18dejavu-serif-fonts.noarch
19ksh.x86_64
20make.x86_64
21sysstat.x86_64
22numactl.x86_64
23numactl-devel.x86_64
24motif.x86_64
25motif-devel.x86_64
26redhat-lsb.x86_64
27redhat-lsb-core.x86_64
28package OpenSSL is not installed

配置 net.ipv4.ip_local_port_range

Bash

1[root@emcc:/root]$ cat /proc/sys/net/ipv4/ip_local_port_range
29000    65500
3
4[root@emcc:/root]$ echo 11000 65000 > /proc/sys/net/ipv4/ip_local_port_range
5
6[root@emcc:/root]$ cat /proc/sys/net/ipv4/ip_local_port_range
711000   65000
8
9[root@emcc:/root]$ cat<<-\EOF>>/etc/sysctl.conf
10net.ipv4.ip_local_port_range = 11000 65000
11EOF
12
13[root@emcc:/root]$ sysctl -p
14fs.aio-max-nr = 1048576
15fs.file-max = 6815744
16kernel.shmall = 8236430
17kernel.shmmax = 33736421375
18kernel.shmmni = 4096
19kernel.sem = 250 32000 100 128
20net.ipv4.ip_local_port_range = 9000 65500
21net.core.rmem_default = 262144
22net.core.rmem_max = 4194304
23net.core.wmem_default = 262144
24net.core.wmem_max = 1048576
25vm.min_free_kbytes = 131782
26net.ipv4.conf.ens192.rp_filter = 1
27vm.swappiness = 10
28kernel.panic_on_oops = 1
29kernel.randomize_va_space = 2
30kernel.numa_balancing = 0
31net.ipv4.ip_local_port_range = 11000 65000
32
33## 重启网络生效
34[root@emcc:/root]$ systemctl restart network

配置 limits.conf

Bash

1echo "nproc 4098" >> /etc/security/limits.conf

创建 emcc 安装目录

Bash

1mkdir -p /u01/app/oracle/middleware/oms
2mkdir -p /u01/app/oracle/middleware/agent
3chown -R oracle.oinstall /u01/app/oracle/middleware

修改 EMCC 环境变量

oms：

Bash

1## oracle 用户下执行
2cp /home/oracle/.bash_profile /home/oracle/.oms
3vi /home/oracle/.oms
4## 删除 export PATH 下方的所有内容，填加以下内容
5umask 022
6export TMP=/tmp
7export TMPDIR=$TMP
8export PATH=/usr/sbin:$PATH
9export PS1="[`whoami`@`hostname`:"'$PWD]$ '
10export ORACLE_HOME=/u01/app/oracle/middleware/oms
11export PATH=$ORACLE_HOME/bin:$ORACLE_HOME/OMSPatcher:$PATH

agent：

Bash

1## oracle 用户下执行
2cp /home/oracle/.bash_profile /home/oracle/.agent
3vi /home/oracle/.agent
4## 删除 export PATH 下方的所有内容，填加以下内容
5umask 022
6export TMP=/tmp
7export TMPDIR=$TMP
8export PATH=/usr/sbin:$PATH
9export PS1="[`whoami`@`hostname`:"'$PWD]$ '
10export ORACLE_HOME=/u01/app/oracle/middleware/agent/agent_13.5.0.0.0
11export PATH=$ORACLE_HOME/bin:$ORACLE_HOME/AgentPatcher:$PATH

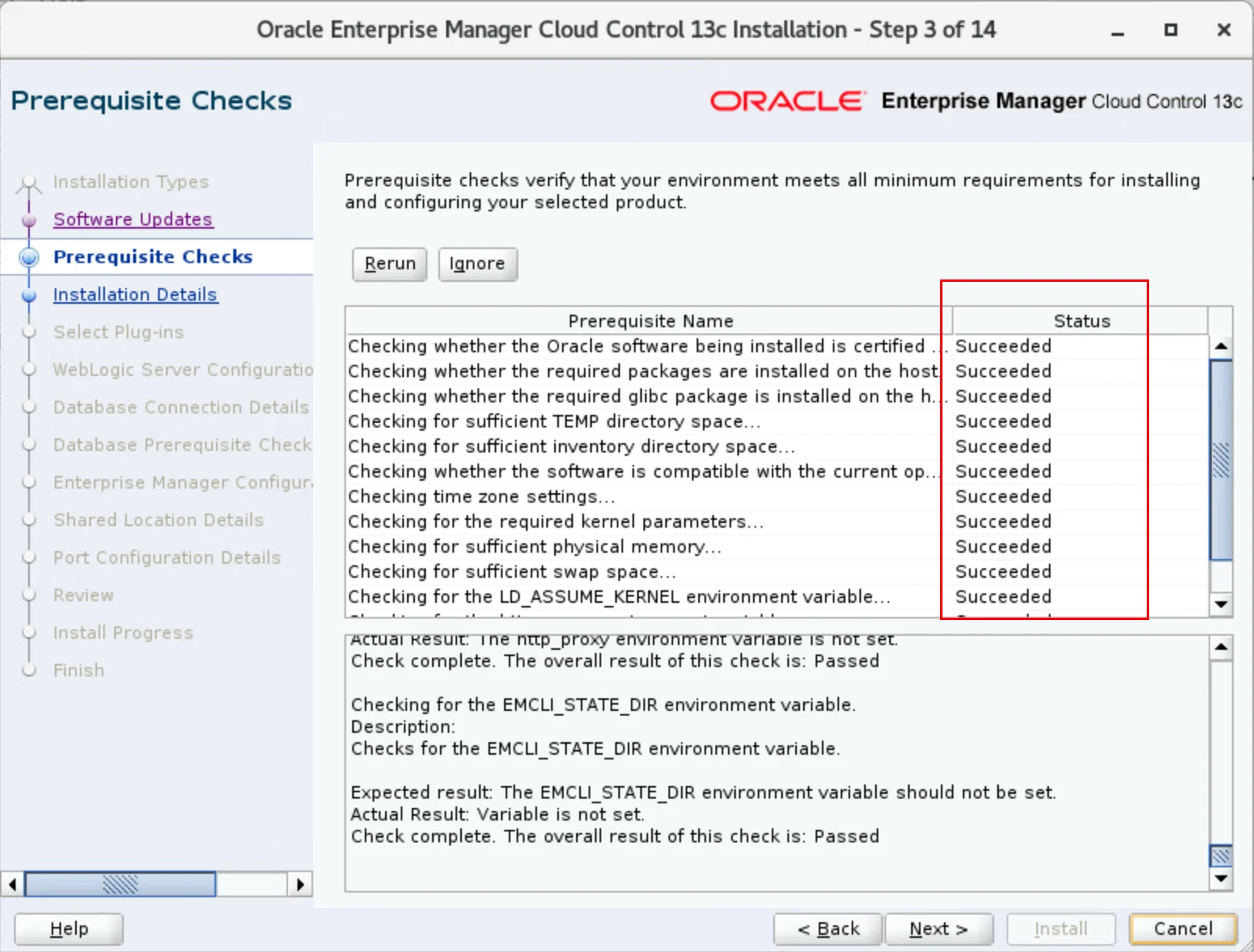

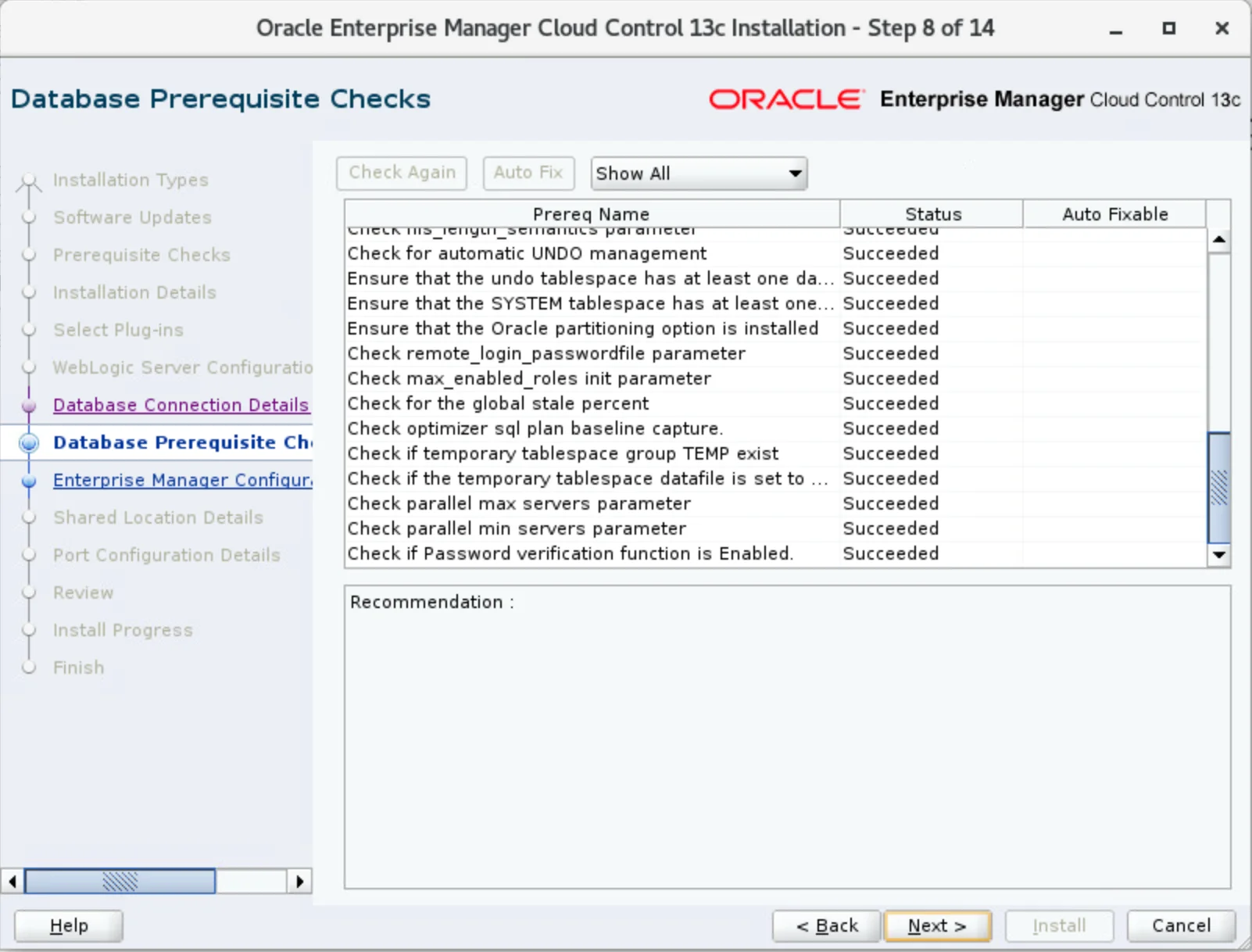

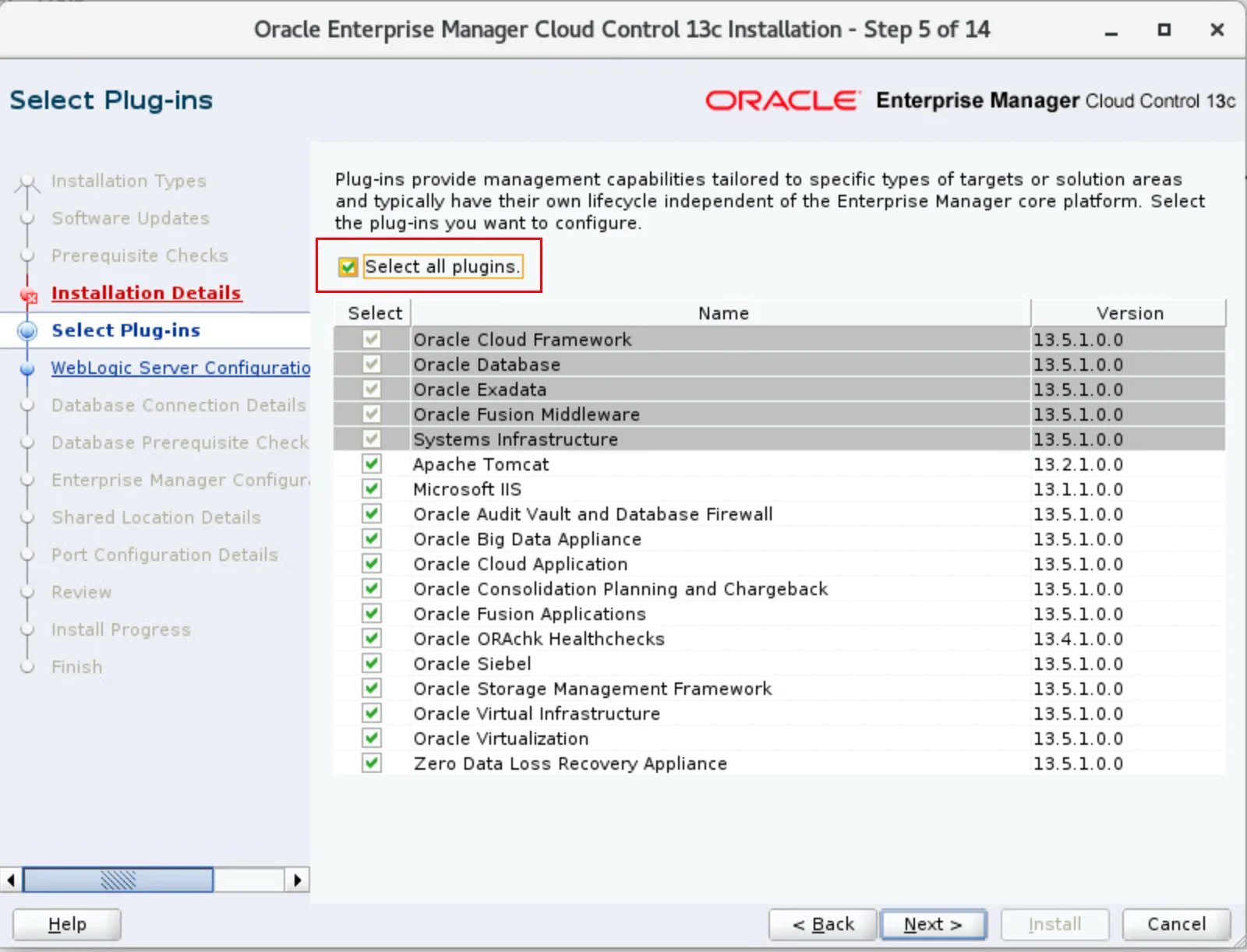

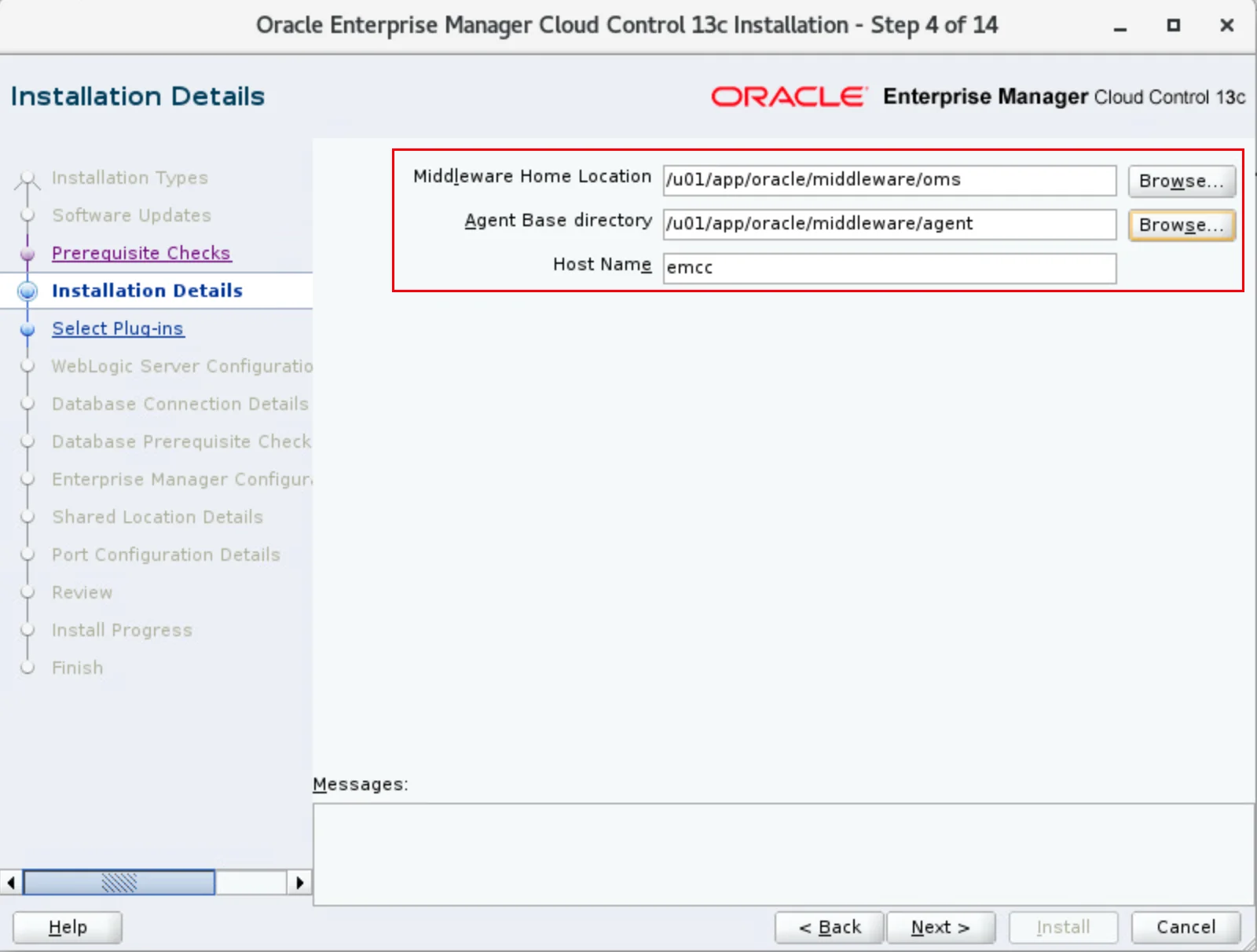

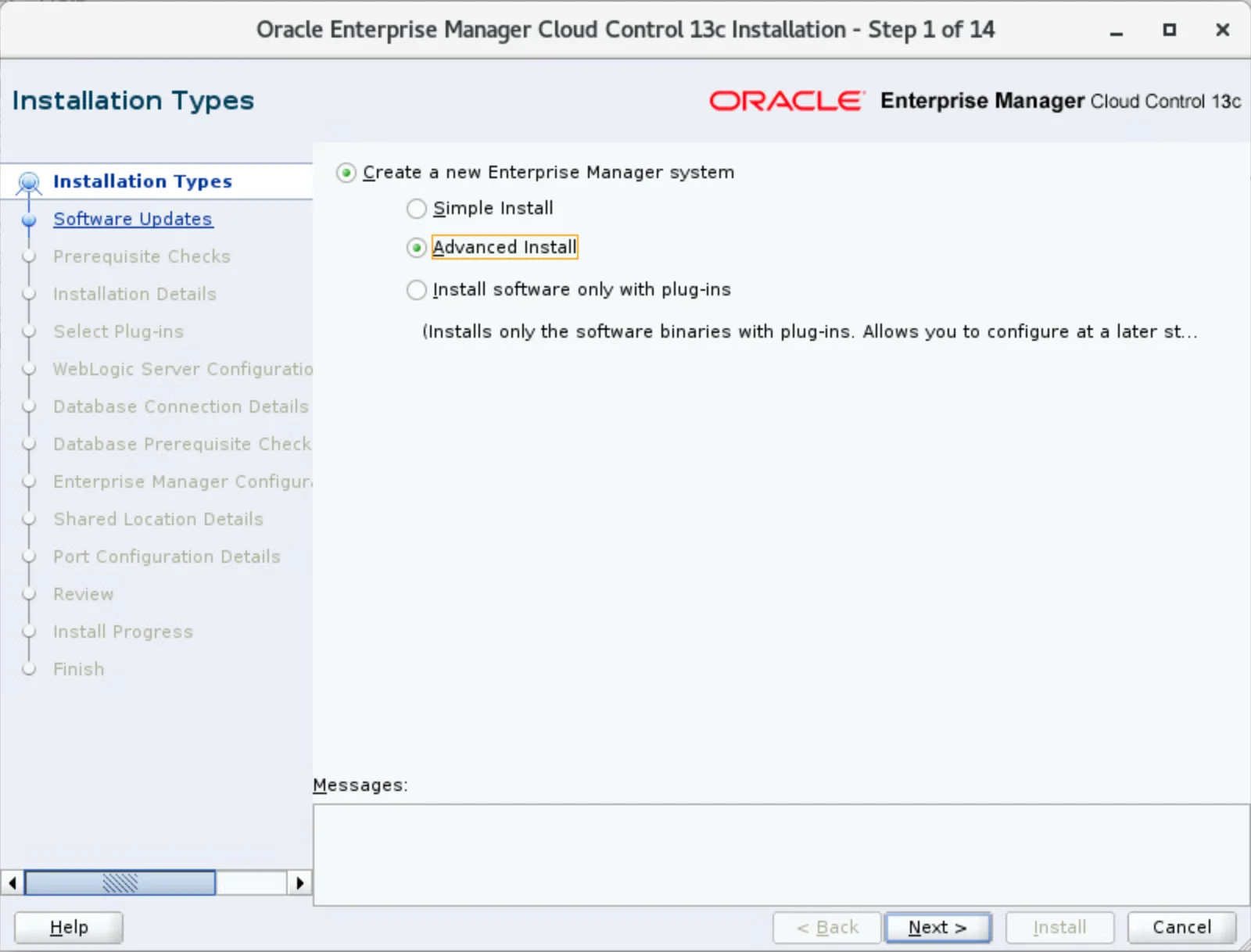

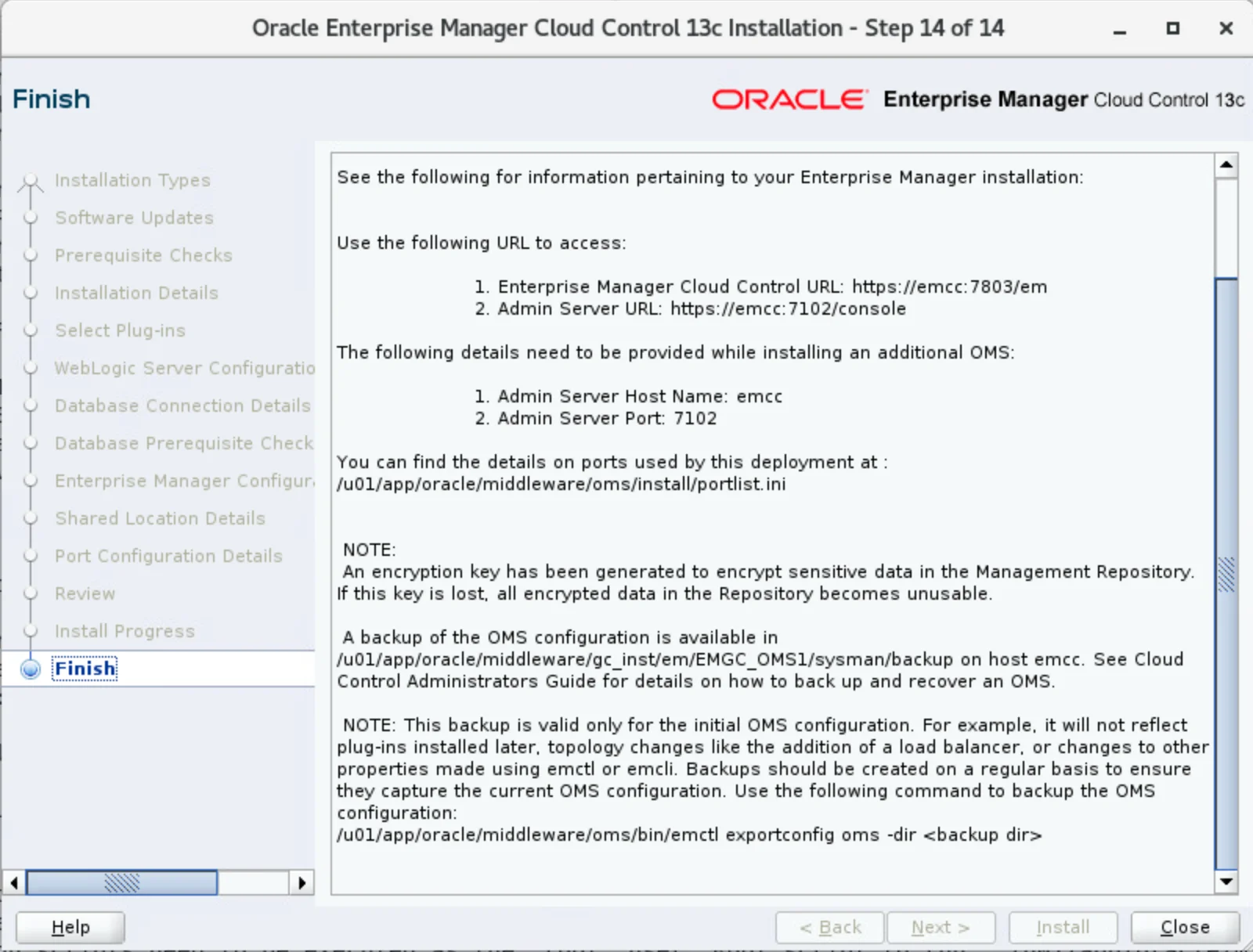

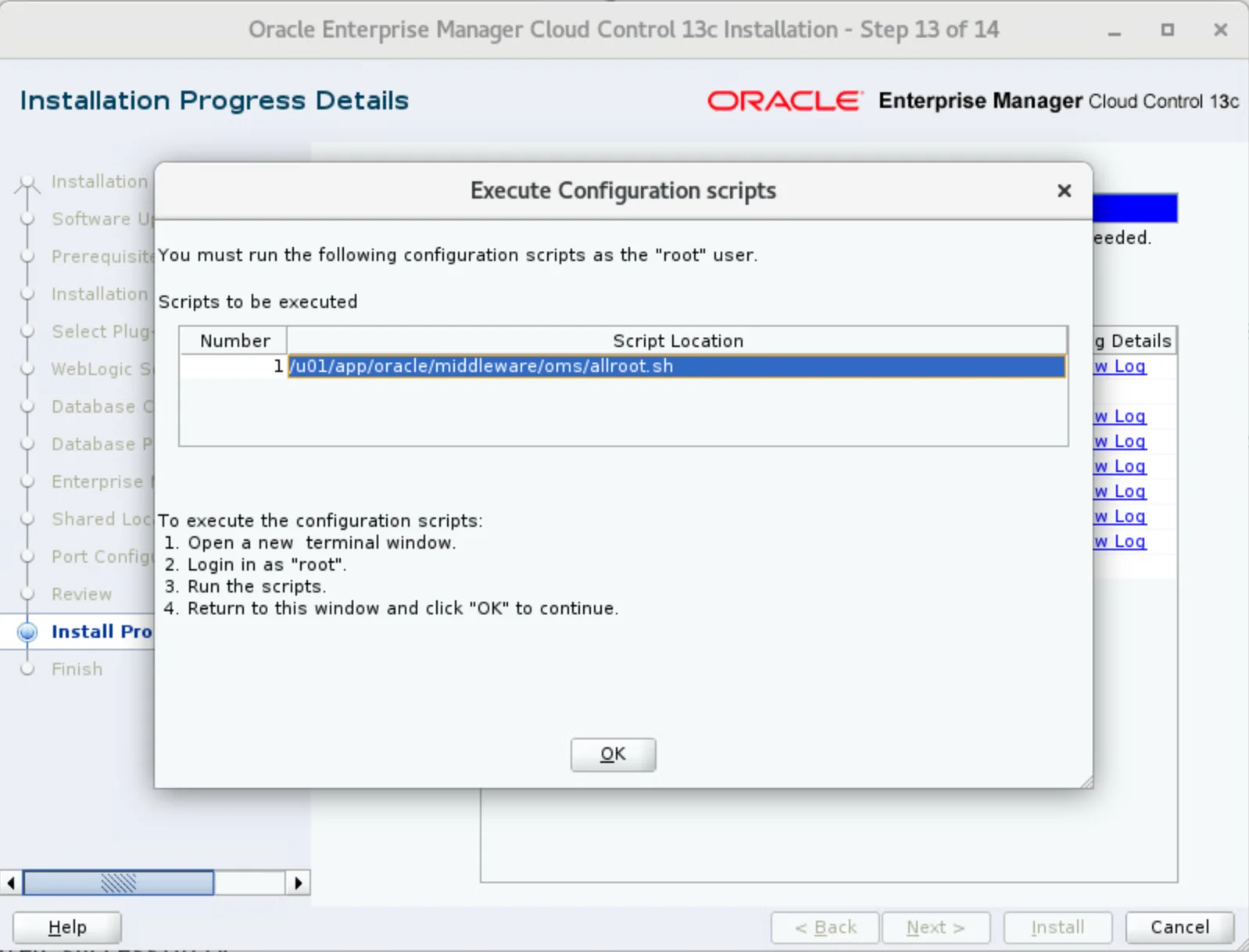

EMCC 图形化安装

图形化安装 EMCC：

Bash

1## oracle 用户下执行
2[oracle@emcc:/home/oracle]$ cd /soft
3[oracle@emcc:/soft]$ chmod +x em13500_linux64.bin
4[oracle@emcc:/soft]$ source ~/.bash_profile
5[oracle@emcc:/soft]$ ./em13500_linux64.bin
6## 以下为安装过程输出内容
7Launcher log file is /tmp/OraInstall2024-02-27_10-33-47AM/launcher2024-02-27_10-33-47AM.log.
8Extracting the installer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Done
9Checking monitor: must be configured to display at least 256 colors.   Actual 16777216    Passed
10Checking swap space: must be greater than 512 MB.   Actual 16379 MB    Passed
11Checking if this platform requires a 64-bit JVM.   Actual 64    Passed (64-bit not required)
12Preparing to launch the Oracle Universal Installer from /tmp/OraInstall2024-02-27_10-33-47AM
13ScratchPathValue :/tmp/OraInstall2024-02-27_10-33-47AM
14Feb 27, 2024 10:36:13 AM org.apache.sshd.common.io.DefaultIoServiceFactoryFactory getIoServiceProvider
15INFO: No detected/configured IoServiceFactoryFactory using Nio2ServiceFactoryFactory
16Cloud DB Value=false
17Cloud DB Value=false
18Cloud DB Value=false
19
20..................................................................................................
21Installation in progress (Tuesday, February 27, 2024 10:50:24 AM CST)
22                              98% Done.
23Install successful
24
25Linking in progress (Tuesday, February 27, 2024 10:50:25 AM CST)
26Link successful
27
28Setup in progress (Tuesday, February 27, 2024 10:50:25 AM CST)
29Setup successful
30
31Saving inventory (Tuesday, February 27, 2024 10:50:25 AM CST)
32Saving inventory complete
33
34End of install phases.(Tuesday, February 27, 2024 10:50:32 AM CST)
35
36...............................................................  42% Done.
37...............................................................  85% Done.
38...................
39Installation in progress (Tuesday, February 27, 2024 10:50:47 AM CST)
40                                              98% Done.
41Install successful
42
43Linking in progress (Tuesday, February 27, 2024 10:50:48 AM CST)
44Link successful
45
46Setup in progress (Tuesday, February 27, 2024 10:50:48 AM CST)
47Setup successful
48
49Saving inventory (Tuesday, February 27, 2024 10:50:48 AM CST)
50Saving inventory complete
51
52End of install phases.(Tuesday, February 27, 2024 10:50:56 AM CST)
53
54..................................................................................................
55Installation in progress (Tuesday, February 27, 2024 10:51:05 AM CST)
56                              98% Done.
57Install successful
58
59Linking in progress (Tuesday, February 27, 2024 10:51:05 AM CST)
60Link successful
61
62Setup in progress (Tuesday, February 27, 2024 10:51:05 AM CST)
63Setup successful
64
65Saving inventory (Tuesday, February 27, 2024 10:51:05 AM CST)
66Saving inventory complete
67
68End of install phases.(Tuesday, February 27, 2024 10:51:12 AM CST)
69
70...............................................................  21% Done.
71...............................................................  42% Done.
72...............................................................  63% Done.
73...............................................................  84% Done.
74..........................................
75Installation in progress (Tuesday, February 27, 2024 10:51:50 AM CST)
76                       98% Done.
77Install successful
78
79Linking in progress (Tuesday, February 27, 2024 10:51:51 AM CST)
80Link successful
81
82Setup in progress (Tuesday, February 27, 2024 10:51:51 AM CST)
83Setup successful
84
85Saving inventory (Tuesday, February 27, 2024 10:51:51 AM CST)
86Saving inventory complete
87
88End of install phases.(Tuesday, February 27, 2024 10:51:58 AM CST)
89
90...............................................................  48% Done.
91...............................................................  96% Done.
92..
93Installation in progress (Tuesday, February 27, 2024 10:52:46 AM CST)
94                                                               98% Done.
95Install successful
96
97Linking in progress (Tuesday, February 27, 2024 10:52:47 AM CST)
98Link successful
99
100Setup in progress (Tuesday, February 27, 2024 10:52:47 AM CST)
101Setup successful
102
103Saving inventory (Tuesday, February 27, 2024 10:52:47 AM CST)
104Saving inventory complete
105
106End of install phases.(Tuesday, February 27, 2024 10:52:53 AM CST)
107
108.................................................................................................
109Installation in progress (Tuesday, February 27, 2024 10:52:58 AM CST)
110                               97% Done.
111Install successful
112
113Linking in progress (Tuesday, February 27, 2024 10:52:59 AM CST)
114Link successful
115
116Setup in progress (Tuesday, February 27, 2024 10:52:59 AM CST)
117Setup successful
118
119Saving inventory (Tuesday, February 27, 2024 10:52:59 AM CST)
120Saving inventory complete
121
122End of install phases.(Tuesday, February 27, 2024 10:53:06 AM CST)
123
124.................................................................................................
125Installation in progress (Tuesday, February 27, 2024 10:53:09 AM CST)
126                               97% Done.
127Install successful
128
129Linking in progress (Tuesday, February 27, 2024 10:53:10 AM CST)
130Link successful
131
132Setup in progress (Tuesday, February 27, 2024 10:53:10 AM CST)
133Setup successful
134
135Saving inventory (Tuesday, February 27, 2024 10:53:10 AM CST)
136Saving inventory complete
137
138End of install phases.(Tuesday, February 27, 2024 10:53:17 AM CST)
139
140..................................................................................................
141Installation in progress (Tuesday, February 27, 2024 10:53:27 AM CST)
142                              98% Done.
143Install successful
144
145Linking in progress (Tuesday, February 27, 2024 10:53:28 AM CST)
146Link successful
147
148Setup in progress (Tuesday, February 27, 2024 10:53:28 AM CST)
149Setup successful
150
151Saving inventory (Tuesday, February 27, 2024 10:53:28 AM CST)
152Saving inventory complete
153
154End of install phases.(Tuesday, February 27, 2024 10:53:34 AM CST)
155
156..................................................................................................
157Installation in progress (Tuesday, February 27, 2024 10:53:39 AM CST)
158                              98% Done.
159Install successful
160
161Linking in progress (Tuesday, February 27, 2024 10:53:40 AM CST)
162Link successful
163
164Setup in progress (Tuesday, February 27, 2024 10:53:40 AM CST)
165Setup successful
166
167Saving inventory (Tuesday, February 27, 2024 10:53:40 AM CST)
168Saving inventory complete
169
170End of install phases.(Tuesday, February 27, 2024 10:53:46 AM CST)
171
172..................................................................................................
173Installation in progress (Tuesday, February 27, 2024 10:53:51 AM CST)
174                              98% Done.
175Install successful
176
177Linking in progress (Tuesday, February 27, 2024 10:53:52 AM CST)
178Link successful
179
180Setup in progress (Tuesday, February 27, 2024 10:53:52 AM CST)
181Setup successful
182
183Saving inventory (Tuesday, February 27, 2024 10:53:52 AM CST)
184Saving inventory complete
185
186End of install phases.(Tuesday, February 27, 2024 10:53:58 AM CST)
187
188..................................................................................................
189Installation in progress (Tuesday, February 27, 2024 10:54:02 AM CST)
190                              98% Done.
191Install successful
192
193Linking in progress (Tuesday, February 27, 2024 10:54:03 AM CST)
194Link successful
195
196Setup in progress (Tuesday, February 27, 2024 10:54:03 AM CST)
197Setup successful
198
199Saving inventory (Tuesday, February 27, 2024 10:54:03 AM CST)
200Saving inventory complete
201
202End of install phases.(Tuesday, February 27, 2024 10:54:09 AM CST)
203
204..................................................................................................
205Installation in progress (Tuesday, February 27, 2024 10:54:17 AM CST)
206                              98% Done.
207Install successful
208
209Linking in progress (Tuesday, February 27, 2024 10:54:18 AM CST)
210Link successful
211
212Setup in progress (Tuesday, February 27, 2024 10:54:18 AM CST)
213Setup successful
214
215Saving inventory (Tuesday, February 27, 2024 10:54:18 AM CST)
216Saving inventory complete
217
218End of install phases.(Tuesday, February 27, 2024 10:54:25 AM CST)
219
220..................................................................................................
221Installation in progress (Tuesday, February 27, 2024 10:54:34 AM CST)
222                              98% Done.
223Install successful
224
225Linking in progress (Tuesday, February 27, 2024 10:54:35 AM CST)
226Link successful
227
228Setup in progress (Tuesday, February 27, 2024 10:54:35 AM CST)
229Setup successful
230
231Saving inventory (Tuesday, February 27, 2024 10:54:35 AM CST)
232Saving inventory complete
233
234End of install phases.(Tuesday, February 27, 2024 10:54:41 AM CST)
235
236..................................................................................................
237Installation in progress (Tuesday, February 27, 2024 10:54:48 AM CST)
238                              98% Done.
239Install successful
240
241Linking in progress (Tuesday, February 27, 2024 10:54:49 AM CST)
242Link successful
243
244Setup in progress (Tuesday, February 27, 2024 10:54:49 AM CST)
245Setup successful
246
247Saving inventory (Tuesday, February 27, 2024 10:54:49 AM CST)
248Saving inventory complete
249
250End of install phases.(Tuesday, February 27, 2024 10:54:55 AM CST)
251
252..................................................................................................
253Installation in progress (Tuesday, February 27, 2024 10:54:59 AM CST)
254                              98% Done.
255Install successful
256
257Linking in progress (Tuesday, February 27, 2024 10:55:00 AM CST)
258Link successful
259
260Setup in progress (Tuesday, February 27, 2024 10:55:00 AM CST)
261Setup successful
262
263Saving inventory (Tuesday, February 27, 2024 10:55:00 AM CST)
264Saving inventory complete
265
266End of install phases.(Tuesday, February 27, 2024 10:55:07 AM CST)
267
268..................................................................................................
269Installation in progress (Tuesday, February 27, 2024 10:55:14 AM CST)
270                              98% Done.
271Install successful
272
273Linking in progress (Tuesday, February 27, 2024 10:55:15 AM CST)
274Link successful
275
276Setup in progress (Tuesday, February 27, 2024 10:55:15 AM CST)
277Setup successful
278
279Saving inventory (Tuesday, February 27, 2024 10:55:15 AM CST)
280Saving inventory complete
281
282End of install phases.(Tuesday, February 27, 2024 10:55:22 AM CST)
283
284..................................................................................................
285Installation in progress (Tuesday, February 27, 2024 10:55:28 AM CST)
286                              98% Done.
287Install successful
288
289Linking in progress (Tuesday, February 27, 2024 10:55:29 AM CST)
290Link successful
291
292Setup in progress (Tuesday, February 27, 2024 10:55:29 AM CST)
293Setup successful
294
295Saving inventory (Tuesday, February 27, 2024 10:55:29 AM CST)
296Saving inventory complete
297
298End of install phases.(Tuesday, February 27, 2024 10:55:35 AM CST)
299
300..................................................................................................
301Installation in progress (Tuesday, February 27, 2024 10:55:39 AM CST)
302                              98% Done.
303Install successful
304
305Linking in progress (Tuesday, February 27, 2024 10:55:40 AM CST)
306Link successful
307
308Setup in progress (Tuesday, February 27, 2024 10:55:40 AM CST)
309Setup successful
310
311Saving inventory (Tuesday, February 27, 2024 10:55:40 AM CST)
312Saving inventory complete
313
314End of install phases.(Tuesday, February 27, 2024 10:55:46 AM CST)
315Installing agent plugins if not upgrade
316
317..................................................................................................
318Installation in progress (Tuesday, February 27, 2024 10:55:51 AM CST)
319                              98% Done.
320Install successful
321
322Linking in progress (Tuesday, February 27, 2024 10:55:52 AM CST)
323Link successful
324
325Setup in progress (Tuesday, February 27, 2024 10:55:52 AM CST)
326Setup successful
327
328Saving inventory (Tuesday, February 27, 2024 10:55:52 AM CST)
329Saving inventory complete
330
331End of install phases.(Tuesday, February 27, 2024 10:55:58 AM CST)
332
333.....................................................................................
334Installation in progress (Tuesday, February 27, 2024 10:56:01 AM CST)
335                                           85% Done.
336Install successful
337
338Linking in progress (Tuesday, February 27, 2024 10:56:01 AM CST)
339Link successful
340
341Setup in progress (Tuesday, February 27, 2024 10:56:01 AM CST)
342Setup successful
343
344Saving inventory (Tuesday, February 27, 2024 10:56:01 AM CST)
345Saving inventory complete
346
347End of install phases.(Tuesday, February 27, 2024 10:56:08 AM CST)
348
349............................................................................................
350Installation in progress (Tuesday, February 27, 2024 10:56:10 AM CST)
351                                    92% Done.
352Install successful
353
354Linking in progress (Tuesday, February 27, 2024 10:56:11 AM CST)
355Link successful
356
357Setup in progress (Tuesday, February 27, 2024 10:56:11 AM CST)
358Setup successful
359
360Saving inventory (Tuesday, February 27, 2024 10:56:11 AM CST)
361Saving inventory complete
362
363End of install phases.(Tuesday, February 27, 2024 10:56:17 AM CST)
364
365.................................................................................................
366Installation in progress (Tuesday, February 27, 2024 10:56:20 AM CST)
367                               97% Done.
368Install successful
369
370Linking in progress (Tuesday, February 27, 2024 10:56:20 AM CST)
371Link successful
372
373Setup in progress (Tuesday, February 27, 2024 10:56:20 AM CST)
374Setup successful
375
376Saving inventory (Tuesday, February 27, 2024 10:56:20 AM CST)
377Saving inventory complete
378
379End of install phases.(Tuesday, February 27, 2024 10:56:26 AM CST)
380
381........................................................................
382Installation in progress (Tuesday, February 27, 2024 10:56:29 AM CST)
383                                                        72% Done.
384Install successful
385
386Linking in progress (Tuesday, February 27, 2024 10:56:29 AM CST)
387Link successful
388
389Setup in progress (Tuesday, February 27, 2024 10:56:29 AM CST)
390Setup successful
391
392Saving inventory (Tuesday, February 27, 2024 10:56:29 AM CST)
393Saving inventory complete
394
395End of install phases.(Tuesday, February 27, 2024 10:56:36 AM CST)
396Checking the current seesion Index -23
397
398.................................................................................................
399Installation in progress (Tuesday, February 27, 2024 10:56:38 AM CST)
400                               96% Done.
401Install successful
402
403Linking in progress (Tuesday, February 27, 2024 10:56:38 AM CST)
404Link successful
405
406Setup in progress (Tuesday, February 27, 2024 10:56:38 AM CST)
407Setup successful
408
409Saving inventory (Tuesday, February 27, 2024 10:56:38 AM CST)
410Saving inventory complete
411
412End of install phases.(Tuesday, February 27, 2024 10:56:45 AM CST)
413
414........................................................................
415Installation in progress (Tuesday, February 27, 2024 10:56:48 AM CST)
416                                                        72% Done.
417Install successful
418
419Linking in progress (Tuesday, February 27, 2024 10:56:48 AM CST)
420Link successful
421
422Setup in progress (Tuesday, February 27, 2024 10:56:48 AM CST)
423Setup successful
424
425Saving inventory (Tuesday, February 27, 2024 10:56:48 AM CST)
426Saving inventory complete
427
428End of install phases.(Tuesday, February 27, 2024 10:56:54 AM CST)
429
430...........................................................................................
431Installation in progress (Tuesday, February 27, 2024 10:56:57 AM CST)
432                                     91% Done.
433Install successful
434
435Linking in progress (Tuesday, February 27, 2024 10:56:57 AM CST)
436Link successful
437
438Setup in progress (Tuesday, February 27, 2024 10:56:57 AM CST)
439Setup successful
440
441Saving inventory (Tuesday, February 27, 2024 10:56:57 AM CST)
442Saving inventory complete
443
444End of install phases.(Tuesday, February 27, 2024 10:57:03 AM CST)
445
446..............................................................................
447Installation in progress (Tuesday, February 27, 2024 10:57:05 AM CST)
448                                                  78% Done.
449Install successful
450
451Linking in progress (Tuesday, February 27, 2024 10:57:06 AM CST)
452Link successful
453
454Setup in progress (Tuesday, February 27, 2024 10:57:06 AM CST)
455Setup successful
456
457Saving inventory (Tuesday, February 27, 2024 10:57:06 AM CST)
458Saving inventory complete
459
460End of install phases.(Tuesday, February 27, 2024 10:57:12 AM CST)
461
462..................................................................................................
463Installation in progress (Tuesday, February 27, 2024 10:57:15 AM CST)
464                              98% Done.
465Install successful
466
467Linking in progress (Tuesday, February 27, 2024 10:57:15 AM CST)
468Link successful
469
470Setup in progress (Tuesday, February 27, 2024 10:57:15 AM CST)
471Setup successful
472
473Saving inventory (Tuesday, February 27, 2024 10:57:15 AM CST)
474Saving inventory complete
475
476End of install phases.(Tuesday, February 27, 2024 10:57:21 AM CST)
477
478.............................................................................
479Installation in progress (Tuesday, February 27, 2024 10:57:24 AM CST)
480                                                   77% Done.
481Install successful
482
483Linking in progress (Tuesday, February 27, 2024 10:57:24 AM CST)
484Link successful
485
486Setup in progress (Tuesday, February 27, 2024 10:57:24 AM CST)
487Setup successful
488
489Saving inventory (Tuesday, February 27, 2024 10:57:24 AM CST)
490Saving inventory complete
491
492End of install phases.(Tuesday, February 27, 2024 10:57:30 AM CST)
493
494...........................................................................................
495Installation in progress (Tuesday, February 27, 2024 10:57:32 AM CST)
496                                     91% Done.
497Install successful
498
499Linking in progress (Tuesday, February 27, 2024 10:57:33 AM CST)
500Link successful
501
502Setup in progress (Tuesday, February 27, 2024 10:57:33 AM CST)
503Setup successful
504
505Saving inventory (Tuesday, February 27, 2024 10:57:33 AM CST)
506Saving inventory complete
507
508End of install phases.(Tuesday, February 27, 2024 10:57:39 AM CST)
509
510............................................................................
511Installation in progress (Tuesday, February 27, 2024 10:57:41 AM CST)
512                                                    76% Done.
513Install successful
514
515Linking in progress (Tuesday, February 27, 2024 10:57:41 AM CST)
516Link successful
517
518Setup in progress (Tuesday, February 27, 2024 10:57:41 AM CST)
519Setup successful
520
521Saving inventory (Tuesday, February 27, 2024 10:57:41 AM CST)
522Saving inventory complete
523
524End of install phases.(Tuesday, February 27, 2024 10:57:48 AM CST)
525
526................................................................................
527Installation in progress (Tuesday, February 27, 2024 10:57:50 AM CST)
528                                                80% Done.
529Install successful
530
531Linking in progress (Tuesday, February 27, 2024 10:57:51 AM CST)
532Link successful
533
534Setup in progress (Tuesday, February 27, 2024 10:57:51 AM CST)
535Setup successful
536
537Saving inventory (Tuesday, February 27, 2024 10:57:51 AM CST)
538Saving inventory complete
539
540End of install phases.(Tuesday, February 27, 2024 10:57:57 AM CST)
541
542...............................................................................................
543Installation in progress (Tuesday, February 27, 2024 10:57:59 AM CST)
544                                 95% Done.
545Install successful
546
547Linking in progress (Tuesday, February 27, 2024 10:57:59 AM CST)
548Link successful
549
550Setup in progress (Tuesday, February 27, 2024 10:57:59 AM CST)
551Setup successful
552
553Saving inventory (Tuesday, February 27, 2024 10:57:59 AM CST)
554Saving inventory complete
555
556End of install phases.(Tuesday, February 27, 2024 10:58:06 AM CST)
557
558................................................................................................
559Installation in progress (Tuesday, February 27, 2024 10:58:09 AM CST)
560                                96% Done.
561Install successful
562
563Linking in progress (Tuesday, February 27, 2024 10:58:09 AM CST)
564Link successful
565
566Setup in progress (Tuesday, February 27, 2024 10:58:09 AM CST)
567Setup successful
568
569Saving inventory (Tuesday, February 27, 2024 10:58:09 AM CST)
570Saving inventory complete
571
572End of install phases.(Tuesday, February 27, 2024 10:58:15 AM CST)
573
574................................................................................................
575Installation in progress (Tuesday, February 27, 2024 10:58:18 AM CST)
576                                96% Done.
577Install successful
578
579Linking in progress (Tuesday, February 27, 2024 10:58:18 AM CST)
580Link successful
581
582Setup in progress (Tuesday, February 27, 2024 10:58:18 AM CST)
583Setup successful
584
585Saving inventory (Tuesday, February 27, 2024 10:58:18 AM CST)
586Saving inventory complete
587
588End of install phases.(Tuesday, February 27, 2024 10:58:25 AM CST)
589
590..............................................................................................
591Installation in progress (Tuesday, February 27, 2024 10:58:27 AM CST)
592                                  93% Done.
593Install successful
594
595Linking in progress (Tuesday, February 27, 2024 10:58:28 AM CST)
596Link successful
597
598Setup in progress (Tuesday, February 27, 2024 10:58:28 AM CST)
599Setup successful
600
601Saving inventory (Tuesday, February 27, 2024 10:58:28 AM CST)
602Saving inventory complete
603
604End of install phases.(Tuesday, February 27, 2024 10:58:34 AM CST)
60513NGCHEKAGGREGATE  : encap_oms
60613NGCHEKAGGREGATE  : OuiConfigVariables
60713NGCHEKAGGREGATE  : OuiConfigVariables
60813NGCHEKAGGREGATE  : oracle.sysman.top.oms
60913NGCHEKAGGREGATE  : oracle.sysman.top.agent
610The AgentFreshInstaller is starting now
611Oraclehome : ../u01/app/oracle/middleware/agent/agent_13.5.0.0.0
612InstanceHome : /u01/app/oracle/middleware/agent/agent_inst
613Agent Base Directory : /u01/app/oracle/middleware/agent
614The oraclehome /u01/app/oracle/middleware/agent/agent_13.5.0.0.0
615Feb 27, 2024 2:57:59 PM oracle.sysman.agent.installer.AgentInstaller parseResponseFile
616INFO: /u01/app/oracle/middleware/agent/agent_13.5.0.0.0
617Feb 27, 2024 2:57:59 PM oracle.sysman.agent.installer.AgentInstaller parseResponseFile
618INFO: /u01/app/oracle/middleware/agent/agent_inst
619Feb 27, 2024 2:57:59 PM oracle.sysman.agent.installer.AgentInstaller parseResponseFile
620INFO: /u01/app/oracle/middleware/agent
621Feb 27, 2024 2:57:59 PM oracle.sysman.agent.installer.AgentInstaller parseResponseFile
622INFO: RESPONSE_FILE=/u01/app/oracle/middleware/agent/agentInstall.rsp
623Feb 27, 2024 2:57:59 PM oracle.sysman.agent.installer.AgentInstaller parseResponseFile
624INFO: ORACLE_HOME=/u01/app/oracle/middleware/agent/agent_13.5.0.0.0
625Feb 27, 2024 2:57:59 PM oracle.sysman.agent.installer.AgentInstaller parseResponseFile
626INFO: AGENT_PORT=
627Feb 27, 2024 2:57:59 PM oracle.sysman.agent.installer.AgentInstaller parseResponseFile
628INFO: ORACLE_HOSTNAME=emcc
629Feb 27, 2024 2:57:59 PM oracle.sysman.agent.installer.AgentInstaller parseResponseFile
630INFO: b_doDiscovery=true
631Feb 27, 2024 2:57:59 PM oracle.sysman.agent.installer.AgentInstaller parseResponseFile
632INFO: AGENT_BASE_DIR=/u01/app/oracle/middleware/agent
633Feb 27, 2024 2:57:59 PsM otraarctlAeg.esnyts miasn:.targueen
634ts.eicnis tiasl l:etrr.uAeg
635entInstaller parseResponseFile
636INFO: AGENT_INSTANCE_HOME=/u01/app/oracle/middleware/agent/agent_inst
637Feb 27, 2024 2:57:59 PM oracle.sysman.agent.installer.AgentInstaller parseResponseFile
638INFO: s_hostname=emcc
639Feb 27, 2024 2:57:59 PM oracle.sysman.agent.installer.AgentInstaller parseResponseFile
640INFO: OMS_HOST=emcc
641Feb 27, 2024 2:57:59 PM oracle.sysman.agent.installer.AgentInstaller parseResponseFile
642INFO: START_AGENT=true
643Feb 27, 2024 2:57:59 PM oracle.sysman.agent.installer.AgentInstaller parseResponseFile
644INFO: b_secureAgent=true
645Feb 27, 2024 2:57:59 PM oracle.sysman.agent.installer.AgentInstaller parseResponseFile
646INFO: b_chainedInstall=true
647Feb 27, 2024 2:57:59 PM oracle.sysman.agent.installer.AgentInstaller parseResponseFile
648INFO: b_forceConfigure=false
649Feb 27, 2024 2:57:59 PM oracle.sysman.agent.installer.AgentInstaller parseResponseFile
650INFO: EM_UPLOAD_PORT=4903
651Feb 27, 2024 2:57:59 PM oracle.sysman.agent.installer.AgentInstaller parseResponseFile
652INFO: b_forceAgentDefaultPort=false
653Feb 27, 2024 2:57:59 PM oracle.sysman.agent.installer.AgentInstaller parseResponseFile
654INFO: s_staticPorts=
655Feb 27, 2024 2:57:59 PM oracle.sysman.agent.installer.AgentInstaller parseResponseFile
656INFO: PROPERTIES_FILE=
657Feb 27, 2024 2:57:59 PM oracle.sysman.agent.installer.AgentInstaller parseResponseFile
658INFO: b_skipValidation=false
659Feb 27, 2024 2:57:59 PM oracle.sysman.agent.installer.AgentInstaller parseResponseFile
660INFO: ORACLE_HOME=/u01/app/oracle/middleware/agent/agent_13.5.0.0.0
661Feb 27, 2024 2:57:59 PM oracle.sysman.agent.installer.AgentInstaller parseResponseFile
662INFO: AGENT_PORT=
663Feb 27, 2024 2:57:59 PM oracle.sysman.agent.installer.AgentInstaller parseResponseFile
664INFO: ORACLE_HOSTNAME=emcc
665Feb 27, 2024 2:57:59 PM oracle.sysman.agent.installer.AgentInstaller parseResponseFile
666INFO: b_doDiscovery=true
667Feb 27, 2024 2:57:59 PM oracle.sysman.agent.installer.AgentInstaller parseResponseFile
668INFO: AGENT_BASE_DIR=/u01/app/oracle/middleware/agent
669Feb 27, 2024 2:57:59 PM orasctlaert.Asgyesnmta ni.sa:gternute.
670isneci is :true
671log loction is ssetlogt
672aClrleeart.iAngge nltoIgn sdtiarlelcetro ypra r:s/euR0e1s/paopnps/eoFrialcel
673eI/NmFiOd:d lAeGwEaNrTe_/IaNgSeTnAtN/CaEg_eHnOtM_E1=3/.u50.10/.a0p.p0//ocrfagctloeo/lmliodgdsl/eawgaernet/Depalgoeyn
674t/agent_inst
675Feb 27, 2024 2:57:59 PM oracle.sysman.agent.installer.AgentInstaller parseResponseFile
676INFO: s_hostname=emcc
677Feb 27, 2024 2:57:59 PM oracle.sysman.agent.installer.AgentInstaller parseResponseFile
678INFO: OMS_HOST=emcc
679Feb 27, 2024 2:57:59 PM oracle.sysman.agent.installer.AgentInstaller parseResponseFile
680INFO: START_AGENT=true
681Feb 27, 2024 2:57:59 PM oracle.sysman.agent.installer.AgentInstaller parseResponseFile
682INFO: b_secureAgent=true
683Feb 27, 2024 2:57:59 PM oracle.sysman.agent.installer.AgentInstaller parseResponseFile
684INFO: b_chainedInstall=true
685Feb 27, 2024 2:57:59 PM oracle.sysman.agent.installer.AgentInstaller parseResponseFile
686INFO: b_forceConfigure=false
687Feb 27, 2024 2:57:59 PM oracle.sysman.agent.installer.AgentInstaller parseResponseFile
688INFO: EM_UPLOAD_PORT=4903
689Feb 27, 2024 2:57:59 PM oracle.sysman.agent.installer.AgentInstaller parseResponseFile
690INFO: b_forceAgentDefaultPort=false
691Feb 27, 2024 2:57:59 PM oracle.sysman.agent.installer.AgentInstaller parseResponseFile
692INFWOri:tin g sth_es tfaotlilcoPwoirntgs =c
693oFnetbe n2t7s,  i2n0t2o4  /2u:0517/:a5p9p /PoMr aocrlaec/lmei.dsdylsemwaanr.ea/gaegnetn.ti/nasgteanltl_e1r3..A5g.e0n.t0I.n0s/tianlsltearl lp/aorrsaegRcehsopmoenlsiesFti
694l/eu
6950I1N/FaOp:p /PoRrOaPcElReT/ImEiSd_dFlIeLwEa=r
696e/agenFte/ba g2e7n,t _21032.45 .20:.507.:05:9/ uP0M1 /oarpapc/loer.ascylsem/amni.dadgleenwta.rien/satgaelnlte/ra.gAegnetn_tiInnsstt
697aBloltehr  /peatrcs/eoRreasgpcohnosmeeFliilset
698 IaNnFdO :/ vba_rs/koipptV/aolriadcaltei/oonr=afgaclhsomeel
699ist does not exist.
700Agent Home is : {0}
701The value of chainInstall : true forceConfigure : false skipValidation : false
702Validated the oms host and port :- emcc----4903
703Logs Location is : {0}
704Getting Inet Addresses for host emcc
705** Agent Port Check completed successfully.**
706Validated the agent port :- ----3872
707Executing command: {0}
708shared agent value is :false
709
710Setting system property CUSTOM_INVENTORY to {0}
711chain install is :true
712
713Cloning of agent home completed successfully
714Agent Configuration completed successfully
715The following configuration scripts need to be executed as the "root" user. Root script to run : /u01/app/oracle/middleware/agent/agent_13.5.0.0.0/root.sh
716Prompt for the allroot.sh
717Logs successfully copied to /u01/app/oraInventory/logs.

图形化安装步骤截图：

全部勾选：

密码要设置好，不能忘记：

数据库信息填写上方创建的数据库（验证通过会进入下一步）：

SYSMAN 是 EMCC 登录用户，密码需要记住：

以下端口均需开启：

开始安装：

等待安装完成即可：

需要执行 root.sh 脚本：

Bash

1[root@emcc:/root]$ /u01/app/oracle/middleware/oms/allroot.sh
2
3Starting to execute allroot.sh .........
4
5Starting to execute /u01/app/oracle/middleware/oms/root.sh ......
6Check /u01/app/oracle/middleware/oms/install/root_emcc_2024-02-27_15-17-15.log for the output of root script
7
8Finished product-specific root actions.
9/etc exist
10Finished execution of  /u01/app/oracle/middleware/oms/root.sh ......
11
12
13Starting to execute /u01/app/oracle/middleware/agent/agent_13.5.0.0.0/root.sh ......
14
15Finished product-specific root actions.
16/etc exist
17Finished execution of  /u01/app/oracle/middleware/agent/agent_13.5.0.0.0/root.sh ......

安装完成：

安装 OMS BUG 修复补丁

升级 OMS OPatch 版本

Bash

1## 解压 OPatch
2[oracle@emcc:/home/oracle]$ cd /soft
3[oracle@emcc:/soft]$ unzip /soft/p28186730_1394212_Generic.zip
4[oracle@emcc:/soft]$ cd /soft/6880880/
5[oracle@emcc:/soft/6880880]$ source ~/.oms
6[oracle@emcc:/soft/6880880]$ opatch version
7OPatch Version: 13.9.4.2.5
8
9OPatch succeeded.
10
11## 升级 OMS OPatch 版本
12[oracle@emcc:/home/oracle]$ $ORACLE_HOME/oracle_common/jdk/bin/java -jar opatch_generic.jar -silent oracle_home=$ORACLE_HOME
13Launcher log file is /tmp/OraInstall2024-02-27_03-23-59PM/launcher2024-02-27_03-23-59PM.log.
14Extracting the installer . . . . Done
15Checking if CPU speed is above 300 MHz.   Actual 2593.749 MHz    Passed
16Checking swap space: must be greater than 512 MB.   Actual 16379 MB    Passed
17Checking if this platform requires a 64-bit JVM.   Actual 64    Passed (-d64 flag is not required)
18Checking temp space: must be greater than 300 MB.   Actual 427557 MB    Passed
19Preparing to launch the Oracle Universal Installer from /tmp/OraInstall2024-02-27_03-23-59PM
20Installation Summary
21
22
23Disk Space : Required 45 MB, Available 427,507 MB
24Feature Sets to Install:
25        Next Generation Install Core 13.9.4.0.1
26        OPatch 13.9.4.2.14
27        OPatch Auto OPlan 13.9.4.2.14
28Session log file is /tmp/OraInstall2024-02-27_03-23-59PM/install2024-02-27_03-23-59PM.log
29
30Loading products list. Please wait.
31 1%
32 40%
33
34Loading products. Please wait.
35 42%
36 43%
37 45%
38 46%
39 48%
40 49%
41 50%
42 51%
43 52%
44 54%
45 55%
46 57%
47 58%
48 60%
49 61%
50 62%
51 64%
52 65%
53 67%
54 68%
55 70%
56 71%
57 72%
58 74%
59 75%
60 77%
61 78%
62 80%
63 81%
64 82%
65 84%
66 85%
67 87%
68 88%
69 90%
70 91%
71 92%
72 94%
73 95%
74 97%
75 98%
76 99%
77
78Updating Libraries
79
80
81
82Starting Installations
83 1%
84 2%
85 3%
86 4%
87 5%
88 6%
89 7%
90 8%
91 9%
92 10%
93 11%
94 12%
95 13%
96 14%
97 15%
98 16%
99 17%
100 18%
101 19%
102 20%
103 21%
104 22%
105 23%
106 24%
107 25%
108 26%
109 27%
110 28%
111 29%
112 30%
113 31%
114 32%
115 33%
116 34%
117 35%
118 36%
119 37%
120 38%
121 39%
122 40%
123 41%
124 42%
125 43%
126 44%
127 45%
128 46%
129 47%
130 48%
131 49%
132 50%
133 51%
134 52%
135 53%
136 54%
137 55%
138 56%
139 57%
140 58%
141 59%
142 60%
143 61%
144 62%
145 63%
146 64%
147 65%
148 66%
149 67%
150 68%
151 69%
152 70%
153 71%
154 72%
155 73%
156 74%
157 75%
158 76%
159 77%
160 78%
161 79%
162 80%
163 81%
164 82%
165 83%
166 84%
167 85%
168 86%
169 87%
170 88%
171 89%
172 90%
173 91%
174 92%
175 93%
176 94%
177 95%
178
179Install pending
180
181Installation in progress
182
183 Component : oracle.glcm.logging 1.6.4.0.0
184
185Copying files for oracle.glcm.logging 1.6.4.0.0
186
187 Component : oracle.glcm.comdev 7.8.4.0.0
188
189Copying files for oracle.glcm.comdev 7.8.4.0.0
190
191 Component : oracle.glcm.dependency 1.8.4.0.0
192
193Copying files for oracle.glcm.dependency 1.8.4.0.0
194
195 Component : oracle.glcm.xmldh 3.4.4.0.0
196
197Copying files for oracle.glcm.xmldh 3.4.4.0.0
198
199 Component : oracle.glcm.wizard 7.8.4.0.0
200
201Copying files for oracle.glcm.wizard 7.8.4.0.0
202
203 Component : oracle.nginst.common 13.9.4.0.0
204
205Copying files for oracle.nginst.common 13.9.4.0.0
206
207 Component : oracle.nginst.core 13.9.4.0.0
208
209Copying files for oracle.nginst.core 13.9.4.0.0
210
211 Component : oracle.glcm.opatch.common.api 13.9.4.0.0
212
213Copying files for oracle.glcm.opatch.common.api 13.9.4.0.0
214
215 Component : oracle.glcm.encryption 2.7.4.0.0
216
217Copying files for oracle.glcm.encryption 2.7.4.0.0
218
219 Component : oracle.swd.opatch 13.9.4.2.14
220
221Copying files for oracle.swd.opatch 13.9.4.2.14
222
223Install successful
224
225Post feature install pending
226
227Post Feature installing
228
229 Feature Set : oracle.glcm.opatchauto.core.binary.classpath
230
231 Feature Set : oracle.glcm.osys.core.classpath
232
233Post Feature installing oracle.glcm.opatchauto.core.binary.classpath
234
235 Feature Set : oracle.glcm.opatchauto.core.classpath
236
237Post Feature installing oracle.glcm.osys.core.classpath
238
239Post Feature installing oracle.glcm.opatchauto.core.classpath
240
241 Feature Set : oracle.glcm.opatch.common.api.classpath
242
243 Feature Set : oracle.glcm.opatchauto.core.actions.classpath
244
245Post Feature installing oracle.glcm.opatch.common.api.classpath
246
247 Feature Set : oracle.glcm.opatchauto.core.wallet.classpath
248
249Post Feature installing oracle.glcm.opatchauto.core.wallet.classpath
250
251 Feature Set : glcm_common_logging_lib
252
253Post Feature installing glcm_common_logging_lib
254
255Post Feature installing oracle.glcm.opatchauto.core.actions.classpath
256
257 Feature Set : glcm_common_lib
258
259Post Feature installing glcm_common_lib
260
261 Feature Set : commons-cli_1.3.1.0.0
262
263Post Feature installing commons-cli_1.3.1.0.0
264
265 Feature Set : glcm_encryption_lib
266
267Post Feature installing glcm_encryption_lib
268
269 Feature Set : oracle.glcm.oplan.core.classpath
270
271Post Feature installing oracle.glcm.oplan.core.classpath
272
273Post feature install complete
274
275String substitutions pending
276
277String substituting
278
279 Component : oracle.glcm.logging 1.6.4.0.0
280
281String substituting oracle.glcm.logging 1.6.4.0.0
282
283 Component : oracle.glcm.comdev 7.8.4.0.0
284
285String substituting oracle.glcm.comdev 7.8.4.0.0
286
287 Component : oracle.glcm.dependency 1.8.4.0.0
288
289String substituting oracle.glcm.dependency 1.8.4.0.0
290
291 Component : oracle.glcm.xmldh 3.4.4.0.0
292
293String substituting oracle.glcm.xmldh 3.4.4.0.0
294
295 Component : oracle.glcm.wizard 7.8.4.0.0
296
297String substituting oracle.glcm.wizard 7.8.4.0.0
298
299 Component : oracle.nginst.common 13.9.4.0.0
300
301String substituting oracle.nginst.common 13.9.4.0.0
302
303 Component : oracle.nginst.core 13.9.4.0.0
304
305String substituting oracle.nginst.core 13.9.4.0.0
306
307 Component : oracle.glcm.opatch.common.api 13.9.4.0.0
308
309String substituting oracle.glcm.opatch.common.api 13.9.4.0.0
310
311 Component : oracle.glcm.encryption 2.7.4.0.0
312
313String substituting oracle.glcm.encryption 2.7.4.0.0
314
315 Component : oracle.swd.opatch 13.9.4.2.14
316
317String substituting oracle.swd.opatch 13.9.4.2.14
318
319String substitutions complete
320
321Link pending
322
323Linking in progress
324
325 Component : oracle.glcm.logging 1.6.4.0.0
326
327Linking oracle.glcm.logging 1.6.4.0.0
328
329 Component : oracle.glcm.comdev 7.8.4.0.0
330
331Linking oracle.glcm.comdev 7.8.4.0.0
332
333 Component : oracle.glcm.dependency 1.8.4.0.0
334
335Linking oracle.glcm.dependency 1.8.4.0.0
336
337 Component : oracle.glcm.xmldh 3.4.4.0.0
338
339Linking oracle.glcm.xmldh 3.4.4.0.0
340
341 Component : oracle.glcm.wizard 7.8.4.0.0
342
343Linking oracle.glcm.wizard 7.8.4.0.0
344
345 Component : oracle.nginst.common 13.9.4.0.0
346
347Linking oracle.nginst.common 13.9.4.0.0
348
349 Component : oracle.nginst.core 13.9.4.0.0
350
351Linking oracle.nginst.core 13.9.4.0.0
352
353 Component : oracle.glcm.opatch.common.api 13.9.4.0.0
354
355Linking oracle.glcm.opatch.common.api 13.9.4.0.0
356
357 Component : oracle.glcm.encryption 2.7.4.0.0
358
359Linking oracle.glcm.encryption 2.7.4.0.0
360
361 Component : oracle.swd.opatch 13.9.4.2.14
362
363Linking oracle.swd.opatch 13.9.4.2.14
364
365Linking in progress
366
367Link successful
368
369Setup pending
370
371Setup in progress
372
373 Component : oracle.glcm.logging 1.6.4.0.0
374
375Setting up oracle.glcm.logging 1.6.4.0.0
376
377 Component : oracle.glcm.comdev 7.8.4.0.0
378
379Setting up oracle.glcm.comdev 7.8.4.0.0
380
381 Component : oracle.glcm.dependency 1.8.4.0.0
382
383Setting up oracle.glcm.dependency 1.8.4.0.0
384
385 Component : oracle.glcm.xmldh 3.4.4.0.0
386
387Setting up oracle.glcm.xmldh 3.4.4.0.0
388
389 Component : oracle.glcm.wizard 7.8.4.0.0
390
391Setting up oracle.glcm.wizard 7.8.4.0.0
392
393 Component : oracle.nginst.common 13.9.4.0.0
394
395Setting up oracle.nginst.common 13.9.4.0.0
396
397 Component : oracle.nginst.core 13.9.4.0.0
398
399Setting up oracle.nginst.core 13.9.4.0.0
400
401 Component : oracle.glcm.opatch.common.api 13.9.4.0.0
402
403Setting up oracle.glcm.opatch.common.api 13.9.4.0.0
404
405 Component : oracle.glcm.encryption 2.7.4.0.0
406
407Setting up oracle.glcm.encryption 2.7.4.0.0
408
409 Component : oracle.swd.opatch 13.9.4.2.14
410
411Setting up oracle.swd.opatch 13.9.4.2.14
412
413Setup successful
414
415Save inventory pending
416
417Saving inventory
418 96%
419
420Saving inventory complete
421 97%
422
423Configuration complete
424
425 Component : oracle.glcm.opatch.common.api.classpath
426
427Saving the inventory oracle.glcm.opatch.common.api.classpath
428
429 Component : glcm_common_logging_lib
430
431 Component : glcm_common_lib
432
433Saving the inventory glcm_common_logging_lib
434
435 Component : oracle.glcm.oplan.core.classpath
436
437 Component : oracle.glcm.logging
438
439Saving the inventory oracle.glcm.oplan.core.classpath
440
441Saving the inventory oracle.glcm.logging
442
443 Component : cieCfg_common_rcu_lib
444
445Saving the inventory glcm_common_lib
446
447Saving the inventory cieCfg_common_rcu_lib
448
449 Component : cieCfg_common_lib
450
451Saving the inventory cieCfg_common_lib
452
453 Component : glcm_encryption_lib
454
455Saving the inventory glcm_encryption_lib
456
457 Component : svctbl_lib
458
459Saving the inventory svctbl_lib
460
461 Component : com.bea.core.binxml_dependencies
462
463Saving the inventory com.bea.core.binxml_dependencies
464
465 Component : svctbl_jmx_client
466
467Saving the inventory svctbl_jmx_client
468
469 Component : cieCfg_wls_shared_lib
470
471Saving the inventory cieCfg_wls_shared_lib
472
473 Component : rcuapi_lib
474
475Saving the inventory rcuapi_lib
476
477 Component : rcu_core_lib
478
479Saving the inventory rcu_core_lib
480
481 Component : cieCfg_cam_lib
482
483Saving the inventory cieCfg_cam_lib
484
485 Component : cieCfg_cam_external_lib
486
487Saving the inventory cieCfg_cam_external_lib
488
489 Component : cieCfg_cam_impl_lib
490
491Saving the inventory cieCfg_cam_impl_lib
492
493 Component : cieCfg_wls_lib
494
495Saving the inventory cieCfg_wls_lib
496
497 Component : cieCfg_wls_external_lib
498
499Saving the inventory cieCfg_wls_external_lib
500
501 Component : cieCfg_wls_impl_lib
502
503Saving the inventory cieCfg_wls_impl_lib
504
505 Component : rcu_dependencies_lib
506
507Saving the inventory rcu_dependencies_lib
508
509 Component : oracle.fmwplatform.fmwprov_lib
510
511Saving the inventory oracle.fmwplatform.fmwprov_lib
512
513 Component : fmwplatform-wlst-dependencies
514
515Saving the inventory fmwplatform-wlst-dependencies
516
517 Component : oracle.fmwplatform.ocp_lib
518
519Saving the inventory oracle.fmwplatform.ocp_lib
520
521 Component : oracle.fmwplatform.ocp_plugin_lib
522
523Saving the inventory oracle.fmwplatform.ocp_plugin_lib
524
525 Component : wlst.wls.classpath
526
527Saving the inventory wlst.wls.classpath
528
529 Component : maven.wls.classpath
530
531Saving the inventory maven.wls.classpath
532
533 Component : com.oracle.webservices.fmw.ws-assembler
534
535Saving the inventory com.oracle.webservices.fmw.ws-assembler
536
537 Component : sdpmessaging_dependencies
538
539Saving the inventory sdpmessaging_dependencies
540
541 Component : sdpclient_dependencies
542
543Saving the inventory sdpclient_dependencies
544
545 Component : oracle.jrf.wls.classpath
546
547Saving the inventory oracle.jrf.wls.classpath
548
549 Component : oracle.jrf.wlst
550
551Saving the inventory oracle.jrf.wlst
552
553 Component : fmwshare-wlst-dependencies
554
555Saving the inventory fmwshare-wlst-dependencies
556
557 Component : oracle.fmwshare.pyjar
558
559Saving the inventory oracle.fmwshare.pyjar
560
561 Component : oracle.glcm.opatch.common.api.classpath
562
563 Component : glcm_common_logging_lib
564
565Saving the inventory glcm_common_logging_lib
566
567Saving the inventory oracle.glcm.opatch.common.api.classpath
568
569 Component : glcm_common_lib
570
571 Component : glcm_encryption_lib
572
573Saving the inventory glcm_common_lib
574
575Saving the inventory glcm_encryption_lib
576
577 Component : oracle.glcm.oplan.core.classpath
578
579Saving the inventory oracle.glcm.oplan.core.classpath
580
581The install operation completed successfully.
582
583Logs successfully copied to /u01/app/oraInventory/logs.
584
585## 检查 OPatch 版本
586[oracle@emcc:/soft/6880880]$ opatch version
587OPatch Version: 13.9.4.2.14
588
589OPatch succeeded.

安装补丁 35430934

Bash

1[oracle@emcc:/soft/6880880]$ cd /soft
2[oracle@emcc:/soft]$ unzip /soft/p35430934_122140_Generic.zip
3[oracle@emcc:/soft]$ cd 35430934/
4[oracle@emcc:/soft/35430934]$ opatch apply
5Oracle Interim Patch Installer version 13.9.4.2.14
6Copyright (c) 2024, Oracle Corporation.  All rights reserved.
7
8
9Oracle Home       : /u01/app/oracle/middleware/oms
10Central Inventory : /u01/app/oraInventory
11   from           : /u01/app/oracle/middleware/oms/oraInst.loc
12OPatch version    : 13.9.4.2.14
13OUI version       : 13.9.4.0.0
14Log file location : /u01/app/oracle/middleware/oms/cfgtoollogs/opatch/opatch2024-02-27_15-31-05PM_1.log
15
16
17OPatch detects the Middleware Home as "/u01/app/oracle/middleware/oms"
18
19Verifying environment and performing prerequisite checks...
20OPatch continues with these patches:   35430934
21
22Do you want to proceed? [y|n]
23y
24User Responded with: Y
25All checks passed.
26
27Please shutdown Oracle instances running out of this ORACLE_HOME on the local system.
28(Oracle Home = '/u01/app/oracle/middleware/oms')
29
30
31Is the local system ready for patching? [y|n]
32y
33User Responded with: Y
34Backing up files...
35Applying interim patch '35430934' to OH '/u01/app/oracle/middleware/oms'
36
37Patching component oracle.javavm.jrf, 19.3.0.0.0...
38Patch 35430934 successfully applied.
39Log file location: /u01/app/oracle/middleware/oms/cfgtoollogs/opatch/opatch2024-02-27_15-31-05PM_1.log
40
41OPatch succeeded.

安装补丁 34153238

Bash

1[oracle@emcc:/soft/35430934]$ cd /soft
2[oracle@emcc:/soft]$ unzip /soft/p34153238_122140_Generic.zip
3[oracle@emcc:/soft]$ cd 34153238/
4[oracle@emcc:/soft/34153238]$ opatch apply
5Oracle Interim Patch Installer version 13.9.4.2.14
6Copyright (c) 2024, Oracle Corporation.  All rights reserved.
7
8
9Oracle Home       : /u01/app/oracle/middleware/oms
10Central Inventory : /u01/app/oraInventory
11   from           : /u01/app/oracle/middleware/oms/oraInst.loc
12OPatch version    : 13.9.4.2.14
13OUI version       : 13.9.4.0.0
14Log file location : /u01/app/oracle/middleware/oms/cfgtoollogs/opatch/opatch2024-02-27_15-36-30PM_1.log
15
16
17OPatch detects the Middleware Home as "/u01/app/oracle/middleware/oms"
18
19Verifying environment and performing prerequisite checks...
20OPatch continues with these patches:   34153238
21
22Do you want to proceed? [y|n]
23y
24User Responded with: Y
25All checks passed.
26
27Please shutdown Oracle instances running out of this ORACLE_HOME on the local system.
28(Oracle Home = '/u01/app/oracle/middleware/oms')
29
30
31Is the local system ready for patching? [y|n]
32y
33User Responded with: Y
34Backing up files...
35Applying interim patch '34153238' to OH '/u01/app/oracle/middleware/oms'
36
37Patching component oracle.javavm.jrf, 19.3.0.0.0...
38Patch 34153238 successfully applied.
39Log file location: /u01/app/oracle/middleware/oms/cfgtoollogs/opatch/opatch2024-02-27_15-36-30PM_1.log
40
41OPatch succeeded.

安装补丁 31657681

Bash

1[oracle@emcc:/soft/34153238]$ cd /soft
2[oracle@emcc:/soft]$ unzip /soft/p31657681_191000_Generic.zip
3[oracle@emcc:/soft]$ cd 31657681/
4[oracle@emcc:/soft/31657681]$ opatch apply
5Oracle Interim Patch Installer version 13.9.4.2.14
6Copyright (c) 2024, Oracle Corporation.  All rights reserved.
7
8
9Oracle Home       : /u01/app/oracle/middleware/oms
10Central Inventory : /u01/app/oraInventory
11   from           : /u01/app/oracle/middleware/oms/oraInst.loc
12OPatch version    : 13.9.4.2.14
13OUI version       : 13.9.4.0.0
14Log file location : /u01/app/oracle/middleware/oms/cfgtoollogs/opatch/opatch2024-02-27_15-38-55PM_1.log
15
16
17OPatch detects the Middleware Home as "/u01/app/oracle/middleware/oms"
18
19Verifying environment and performing prerequisite checks...
20OPatch continues with these patches:   31657681
21
22Do you want to proceed? [y|n]
23y
24User Responded with: Y
25All checks passed.
26
27Please shutdown Oracle instances running out of this ORACLE_HOME on the local system.
28(Oracle Home = '/u01/app/oracle/middleware/oms')
29
30
31Is the local system ready for patching? [y|n]
32y
33User Responded with: Y
34Backing up files...
35Applying interim patch '31657681' to OH '/u01/app/oracle/middleware/oms'
36
37Patching component oracle.javavm.jrf, 19.3.0.0.0...
38Patch 31657681 successfully applied.
39Log file location: /u01/app/oracle/middleware/oms/cfgtoollogs/opatch/opatch2024-02-27_15-38-55PM_1.log
40
41OPatch succeeded.
42
43查看补丁：

Bash

1[oracle@emcc:/soft/36155700]$ opatch lspatches
231657681;One-off
334153238;One-off
435430934;One-off
532458315;ADF BUNDLE PATCH 12.2.1.4.210203
632412974;One-off
731818221;One-off
831808404;OHS (NATIVE) BUNDLE PATCH 12.2.1.4.200826
931708760;One-off
1031666198;OPSS Bundle Patch 12.2.1.4.200724
1130152128;One-off
1226626168;One-off
13122146;Bundle patch for Oracle Coherence Version 12.2.1.4.6
1432253037;WLS PATCH SET UPDATE 12.2.1.4.201209
15
16OPatch succeeded.

安装 OMS 补丁

更新 OMSPatcher

Bash

1[oracle@emcc:/home/oracle]$ source ~/.oms
2[oracle@emcc:/home/oracle]$ unzip -qo /soft/p19999993_135000_Generic.zip -d $ORACLE_HOME
3[oracle@emcc:/home/oracle]$ omspatcher version
4OMSPatcher Version: 13.9.5.17.0
5OPlan Version: 12.2.0.1.16
6OsysModel build: Tue Apr 28 18:16:31 PDT 2020
7
8OMSPatcher succeeded.

安装 OMS RU 补丁

Bash

1[oracle@emcc:/home/oracle]$ cd /soft/
2[oracle@emcc:/soft]$ unzip -q /soft/p35861059_135000_Generic.zip
3[oracle@emcc:/soft]$ cd /soft/35861059
4## 补丁分析
5[oracle@emcc:/soft/35861059]$ omspatcher apply -analyze
6OMSPatcher Automation Tool
7Copyright (c) 2017, Oracle Corporation.  All rights reserved.
8
9
10OMSPatcher version : 13.9.5.17.0
11OUI version        : 13.9.4.0.0
12Running from       : /u01/app/oracle/middleware/oms
13Log file location  : /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/opatch2024-02-27_16-33-09PM_1.log
14
15OMSPatcher log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/35861059/omspatcher_2024-02-27_16-33-19PM_analyze.log
16
17Please enter OMS weblogic admin server URL(t3s://emcc:7102):>
18Please enter OMS weblogic admin server username(weblogic):>
19Please enter OMS weblogic admin server password:>
20
21Enter DB user name : sys
22Enter 'sys' password :
23Checking if current repository database is a supported version
24Current repository database version is supported
25
26
27Prereq "checkComponents" for patch 35854862 passed.
28
29Prereq "checkComponents" for patch 35855029 passed.
30
31Prereq "checkComponents" for patch 35582217 passed.
32
33Prereq "checkComponents" for patch 34430509 passed.
34
35Prereq "checkComponents" for patch 34706773 passed.
36
37Prereq "checkComponents" for patch 35855005 passed.
38
39Prereq "checkComponents" for patch 35854904 passed.
40
41Prereq "checkComponents" for patch 35854878 passed.
42
43Prereq "checkComponents" for patch 35854889 passed.
44
45Prereq "checkComponents" for patch 35854914 passed.
46
47Prereq "checkComponents" for patch 35854930 passed.
48
49Prereq "checkComponents" for patch 35582170 passed.
50
51Prereq "checkComponents" for patch 35854975 passed.
52
53Prereq "checkComponents" for patch 35854965 passed.
54
55Prereq "checkComponents" for patch 35855020 passed.
56
57Configuration Validation: Success
58
59
60Running apply prerequisite checks for sub-patch(es) "35854862,35582217,35855020,35854930,35855029,35854965,35854904,34430509,35854878,35855005,35582170,35854914,35854975,34706773,35854889" and Oracle Home "/u01/app/oracle/middleware/oms"...
61Sub-patch(es) "35854862,35582217,35855020,35854930,35855029,35854965,35854904,34430509,35854878,35855005,35582170,35854914,35854975,34706773,35854889" are successfully analyzed for Oracle Home "/u01/app/oracle/middleware/oms"
62
63
64Complete Summary
65================
66
67
68All log file names referenced below can be accessed from the directory "/u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_16-33-09PM_SystemPatch_35861059_1"
69
70Prerequisites analysis summary:
71-------------------------------
72
73The following sub-patch(es) are applicable:
74
75             Featureset                                                                                                                              Sub-patches                                                                                                                                                                   Log file
76             ----------                                                                                                                              -----------                                                                                                                                                                   --------
77  oracle.sysman.top.oms   35854862,35582217,35855020,35854930,35855029,35854965,35854904,34430509,35854878,35855005,35582170,35854914,35854975,34706773,35854889   35854862,35582217,35855020,35854930,35855029,35854965,35854904,34430509,35854878,35855005,35582170,35854914,35854975,34706773,35854889_opatch2024-02-27_16-33-31PM_1.log
78
79
80
81Log file location: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/35861059/omspatcher_2024-02-27_16-33-19PM_analyze.log
82
83OMSPatcher succeeded.

正式打补丁

Bash

1## 停止 OMS 服务
2[oracle@emcc:/soft/35861059]$ emctl stop oms
3Oracle Enterprise Manager Cloud Control 13c Release 5
4Copyright (c) 1996, 2021 Oracle Corporation.  All rights reserved.
5Stopping Oracle Management Server...
6Oracle Management Server Successfully Stopped
7Oracle Management Server is Down
8JVMD Engine is Down
9## 安装补丁
10[oracle@emcc:/soft/35861059]$ omspatcher apply
11OMSPatcher Automation Tool
12Copyright (c) 2017, Oracle Corporation.  All rights reserved.
13
14
15OMSPatcher version : 13.9.5.17.0
16OUI version        : 13.9.4.0.0
17Running from       : /u01/app/oracle/middleware/oms
18Log file location  : /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/opatch2024-02-27_16-49-07PM_1.log
19
20OMSPatcher log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/35861059/omspatcher_2024-02-27_16-49-16PM_apply.log
21
22Please enter OMS weblogic admin server URL(t3s://emcc:7102):>
23Please enter OMS weblogic admin server username(weblogic):>
24Please enter OMS weblogic admin server password:>
25
26Enter DB user name : sys
27Enter 'sys' password :
28Checking if current repository database is a supported version
29Current repository database version is supported
30
31
32Prereq "checkComponents" for patch 35854862 passed.
33
34Prereq "checkComponents" for patch 35855029 passed.
35
36Prereq "checkComponents" for patch 35582217 passed.
37
38Prereq "checkComponents" for patch 34430509 passed.
39
40Prereq "checkComponents" for patch 34706773 passed.
41
42Prereq "checkComponents" for patch 35855005 passed.
43
44Prereq "checkComponents" for patch 35854904 passed.
45
46Prereq "checkComponents" for patch 35854878 passed.
47
48Prereq "checkComponents" for patch 35854889 passed.
49
50Prereq "checkComponents" for patch 35854914 passed.
51
52Prereq "checkComponents" for patch 35854930 passed.
53
54Prereq "checkComponents" for patch 35582170 passed.
55
56Prereq "checkComponents" for patch 35854975 passed.
57
58Prereq "checkComponents" for patch 35854965 passed.
59
60Prereq "checkComponents" for patch 35855020 passed.
61
62Configuration Validation: Success
63
64
65Running apply prerequisite checks for sub-patch(es) "35854862,35582217,35855020,35854930,35855029,35854965,35854904,34430509,35854878,35855005,35582170,35854914,35854975,34706773,35854889" and Oracle Home "/u01/app/oracle/middleware/oms"...
66Sub-patch(es) "35854862,35582217,35855020,35854930,35855029,35854965,35854904,34430509,35854878,35855005,35582170,35854914,35854975,34706773,35854889" are successfully analyzed for Oracle Home "/u01/app/oracle/middleware/oms"
67
68To continue, OMSPatcher will do the following:
69[Patch and deploy artifacts]   : Apply sub-patch(es) [ 34430509 34706773 35582170 35582217 35854862 35854878 35854889 35854904 35854914 35854930 35854965 35854975 35855005 35855020 35855029 ]
70                                 Apply RCU artifact with patch "/u01/app/oracle/middleware/oms/.omspatcher_storage/35854862_Dec_26_2023_02_57_49/original_patch";
71                                 Apply RCU artifact with patch "/u01/app/oracle/middleware/oms/.omspatcher_storage/35855029_Dec_26_2023_03_38_47/original_patch";
72                                 Apply RCU artifact with patch "/u01/app/oracle/middleware/oms/.omspatcher_storage/35582217_Dec_1_2023_17_15_40/original_patch";
73                                 Apply RCU artifact with patch "/u01/app/oracle/middleware/oms/.omspatcher_storage/34430509_Oct_7_2022_00_06_01/original_patch";
74                                 Apply RCU artifact with patch "/u01/app/oracle/middleware/oms/.omspatcher_storage/34706773_Jan_6_2023_05_28_49/original_patch";
75                                 Apply RCU artifact with patch "/u01/app/oracle/middleware/oms/.omspatcher_storage/35855005_Dec_26_2023_03_39_23/original_patch";
76                                 Apply RCU artifact with patch "/u01/app/oracle/middleware/oms/.omspatcher_storage/35854904_Dec_26_2023_03_38_56/original_patch";
77                                 Apply RCU artifact with patch "/u01/app/oracle/middleware/oms/.omspatcher_storage/35854878_Dec_26_2023_03_37_41/original_patch";
78                                 Apply RCU artifact with patch "/u01/app/oracle/middleware/oms/.omspatcher_storage/35854889_Dec_26_2023_03_38_24/original_patch";
79                                 Apply RCU artifact with patch "/u01/app/oracle/middleware/oms/.omspatcher_storage/35854914_Dec_26_2023_03_38_51/original_patch";
80                                 Apply RCU artifact with patch "/u01/app/oracle/middleware/oms/.omspatcher_storage/35854930_Dec_26_2023_03_38_53/original_patch";
81                                 Apply RCU artifact with patch "/u01/app/oracle/middleware/oms/.omspatcher_storage/35582170_Dec_1_2023_17_15_44/original_patch";
82                                 Apply RCU artifact with patch "/u01/app/oracle/middleware/oms/.omspatcher_storage/35854975_Dec_26_2023_03_38_57/original_patch";
83                                 Apply RCU artifact with patch "/u01/app/oracle/middleware/oms/.omspatcher_storage/35854965_Dec_26_2023_03_39_35/original_patch";
84                                 Apply RCU artifact with patch "/u01/app/oracle/middleware/oms/.omspatcher_storage/35855020_Dec_26_2023_03_38_49/original_patch";
85                                 Register MRS artifact "commands";
86                                 Register MRS artifact "omsPropertyDef";
87                                 Register MRS artifact "targetType";
88                                 Register MRS artifact "chargeback";
89                                 Register MRS artifact "default_collection";
90                                 Register MRS artifact "jobTypes";
91                                 Register MRS artifact "systemStencil";
92                                 Register MRS artifact "procedures";
93                                 Register MRS artifact "discovery";
94                                 Register MRS artifact "EcmMetadataOnlyRegistration";
95                                 Register MRS artifact "swlib";
96                                 Register MRS artifact "OracleCertifiedTemplate";
97                                 Register MRS artifact "TargetPrivilege";
98                                 Register MRS artifact "CredStoreMetadata";
99                                 Register MRS artifact "storeTargetType";
100                                 Register MRS artifact "gccompliance";
101                                 Register MRS artifact "compression";
102                                 Register MRS artifact "assoc";
103                                 Register MRS artifact "namedQuery";
104                                 Register MRS artifact "CfwServiceAction";
105                                 Register MRS artifact "eventSpecificCustmzn";
106                                 Register MRS artifact "report";
107                                 Register MRS artifact "namedsql";
108                                 Register MRS artifact "runbooks";
109                                 Register MRS artifact "SecurityClassManager";
110                                 Register MRS artifact "derivedAssocs"
111
112
113Do you want to proceed? [y|n]
114y
115User Responded with: Y
116Stopping the OMS.....
117Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-00-26PM_SystemPatch_35861059_9/stop_oms_2024-02-27_17-00-26PM.log
118
119
120Applying sub-patch(es) "34430509,34706773,35582170,35582217,35854862,35854878,35854889,35854904,35854914,35854930,35854965,35854975,35855005,35855020,35855029"
121Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/opatch/opatch2024-02-27_16-49-35PM_1.log
122
123Starting the ADMIN .....
124Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-09-42PM_SystemPatch_35861059_12/start_admin_2024-02-27_17-09-42PM.log
125
126Deploying Library  .....org.bouncycastle.bcpkix#1.1@1.76.0.0
127Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-11-05PM_SystemPatch_35861059_13/deploy_library_2024-02-27_17-11-05PM.log
128
129Deploying Library  .....sshdcore_jar#2.11@2.11.0
130Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-11-28PM_SystemPatch_35861059_14/deploy_library_2024-02-27_17-11-28PM.log
131
132Deploying Library  .....log4j-core_jar#2.17.1@2.17.1
133Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-11-49PM_SystemPatch_35861059_15/deploy_library_2024-02-27_17-11-49PM.log
134
135Deploying Library  .....sshdsftp_jar#2.11@2.11.0
136Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-12-09PM_SystemPatch_35861059_16/deploy_library_2024-02-27_17-12-09PM.log
137
138Deploying Library  .....log4j-bridge_jar#2.17.1@2.17.1
139Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-12-30PM_SystemPatch_35861059_17/deploy_library_2024-02-27_17-12-30PM.log
140
141Deploying Library  .....log4j-api_jar#2.17.1@2.17.1
142Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-12-50PM_SystemPatch_35861059_18/deploy_library_2024-02-27_17-12-50PM.log
143
144Deploying Library  .....slf4japi_jar#1.7.36@1.7.36
145Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-11PM_SystemPatch_35861059_19/deploy_library_2024-02-27_17-13-11PM.log
146
147Deploying Library  .....org.bouncycastle.bcprovider#1.1@1.76.0.0
148Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-31PM_SystemPatch_35861059_20/deploy_library_2024-02-27_17-13-31PM.log
149
150Deploying Library  .....sshdcommon_jar#2.11@2.11.0
151Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/deploy_library_2024-02-27_17-13-50PM.log
152
153DB user 'sys' is allowed to perform startOP patching operation.
154
155Updating repository with RCU reference file "/u01/app/oracle/middleware/oms/.omspatcher_storage/35854862_Dec_26_2023_02_57_49/original_patch"
156
157Updating repository with RCU reference file "/u01/app/oracle/middleware/oms/.omspatcher_storage/35855029_Dec_26_2023_03_38_47/original_patch" for plugin home "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.cfw.oms.plugin_13.5.1.0.0"
158
159Updating repository with RCU reference file "/u01/app/oracle/middleware/oms/.omspatcher_storage/35582217_Dec_1_2023_17_15_40/original_patch" for plugin home "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.smf.oms.plugin_13.5.1.0.0"
160
161Updating repository with RCU reference file "/u01/app/oracle/middleware/oms/.omspatcher_storage/34430509_Oct_7_2022_00_06_01/original_patch" for plugin home "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.vt.oms.plugin_13.5.1.0.0"
162
163Updating repository with RCU reference file "/u01/app/oracle/middleware/oms/.omspatcher_storage/34706773_Jan_6_2023_05_28_49/original_patch" for plugin home "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.empa.oms.plugin_13.5.1.0.0"
164
165Updating repository with RCU reference file "/u01/app/oracle/middleware/oms/.omspatcher_storage/35855005_Dec_26_2023_03_39_23/original_patch" for plugin home "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.si.oms.plugin_13.5.1.0.0"
166
167Updating repository with RCU reference file "/u01/app/oracle/middleware/oms/.omspatcher_storage/35854904_Dec_26_2023_03_38_56/original_patch" for plugin home "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.am.oms.plugin_13.5.1.0.0"
168
169Updating repository with RCU reference file "/u01/app/oracle/middleware/oms/.omspatcher_storage/35854878_Dec_26_2023_03_37_41/original_patch" for plugin home "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.emas.oms.plugin_13.5.1.0.0"
170
171Updating repository with RCU reference file "/u01/app/oracle/middleware/oms/.omspatcher_storage/35854889_Dec_26_2023_03_38_24/original_patch" for plugin home "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.db.oms.plugin_13.5.1.0.0"
172
173Updating repository with RCU reference file "/u01/app/oracle/middleware/oms/.omspatcher_storage/35854914_Dec_26_2023_03_38_51/original_patch" for plugin home "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.bda.oms.plugin_13.5.1.0.0"
174
175Updating repository with RCU reference file "/u01/app/oracle/middleware/oms/.omspatcher_storage/35854930_Dec_26_2023_03_38_53/original_patch" for plugin home "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.emct.oms.plugin_13.5.1.0.0"
176
177Updating repository with RCU reference file "/u01/app/oracle/middleware/oms/.omspatcher_storage/35582170_Dec_1_2023_17_15_44/original_patch" for plugin home "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.emfa.oms.plugin_13.5.1.0.0"
178
179Updating repository with RCU reference file "/u01/app/oracle/middleware/oms/.omspatcher_storage/35854975_Dec_26_2023_03_38_57/original_patch" for plugin home "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.ssa.oms.plugin_13.5.1.0.0"
180
181Updating repository with RCU reference file "/u01/app/oracle/middleware/oms/.omspatcher_storage/35854965_Dec_26_2023_03_39_35/original_patch" for plugin home "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.xa.oms.plugin_13.5.1.0.0"
182
183Updating repository with RCU reference file "/u01/app/oracle/middleware/oms/.omspatcher_storage/35855020_Dec_26_2023_03_38_49/original_patch" for plugin home "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.vi.oms.plugin_13.5.1.0.0"
184
185Registering service "commands" with register file "/u01/app/oracle/middleware/oms/sysman/metadata/commands/CScommand.xml" for plugin id as "core"...
186Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_commands_2024-02-27_17-30-29PM.log
187
188
189Registering service "commands" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.vt.oms.plugin_13.5.1.0.0/metadata/commands/pca/vt_pca_sync_job_commands.xml" for plugin id as "oracle.sysman.vt"...
190Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_commands_2024-02-27_17-30-49PM.log
191
192
193Registering service "commands" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.db.oms.plugin_13.5.1.0.0/metadata/commands/commands.xml" for plugin id as "oracle.sysman.db"...
194Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_commands_2024-02-27_17-30-56PM.log
195
196
197Registering service "commands" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.xa.oms.plugin_13.5.1.0.0/metadata/commands/commands.xml" for plugin id as "oracle.sysman.xa"...
198Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_commands_2024-02-27_17-31-03PM.log
199
200
201Registering service "omsPropertyDef" with register file "/u01/app/oracle/middleware/oms/sysman/metadata/omsProperties/definition/OMSPropDefinition.xml" for plugin id as "core"...
202Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_omsPropertyDef_2024-02-27_17-31-10PM.log
203
204
205Registering service "omsPropertyDef" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.am.oms.plugin_13.5.1.0.0/metadata/omsProperties/definition/OMSPropDefinition.xml" for plugin id as "oracle.sysman.am"...
206Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_omsPropertyDef_2024-02-27_17-31-20PM.log
207
208
209Registering service "omsPropertyDef" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.db.oms.plugin_13.5.1.0.0/metadata/omsProperties/definition/DBPropDefinition.xml" for plugin id as "oracle.sysman.db"...
210Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_omsPropertyDef_2024-02-27_17-31-27PM.log
211
212
213Registering service "omsPropertyDef" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.xa.oms.plugin_13.5.1.0.0/metadata/omsProperties/definition/oracle.sysman.xa.xml" for plugin id as "oracle.sysman.xa"...
214Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_omsPropertyDef_2024-02-27_17-31-35PM.log
215
216
217Registering service "targetType" with register file "/u01/app/oracle/middleware/oms/sysman/metadata/targetType/oldVersions/host/13.5.0.v/13.5.0.3/host.xml" for plugin id as "core"...
218Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_targetType_2024-02-27_17-31-41PM.log
219
220
221Registering service "targetType" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.empa.oms.plugin_13.5.1.0.0/patched_metadata/13.5.1.0.0/targetType/34003693/siebel_component.xml" for plugin id as "oracle.sysman.empa"...
222Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_targetType_2024-02-27_17-33-30PM.log
223
224
225Registering service "targetType" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.si.oms.plugin_13.5.1.0.0/patched_metadata/13.5.1.0.0/targetType/33567462/network_hw/oracle_si_netswitch.xml" for plugin id as "oracle.sysman.si"...
226Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_targetType_2024-02-27_17-33-40PM.log
227
228
229Registering service "targetType" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.am.oms.plugin_13.5.1.0.0/patched_metadata/13.5.1.0.0/targetType/32941713/oracle_dblra.xml" for plugin id as "oracle.sysman.am"...
230Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_targetType_2024-02-27_17-37-10PM.log
231
232
233Registering service "targetType" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.emas.oms.plugin_13.5.1.0.0/patched_metadata/13.5.1.0.0/targetType/32971629/oracle_oaam.xml" for plugin id as "oracle.sysman.emas"...
234Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_targetType_2024-02-27_17-37-23PM.log
235
236
237Registering service "targetType" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.db.oms.plugin_13.5.1.0.0/patched_metadata/13.5.1.0.0/targetType/32835412/oracle_database.xml" for plugin id as "oracle.sysman.db"...
238Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_targetType_2024-02-27_17-37-37PM.log
239
240
241Registering service "targetType" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.bda.oms.plugin_13.5.1.0.0/patched_metadata/13.5.1.0.0/targetType/32941609/oracle_hadoop_hdfs.xml" for plugin id as "oracle.sysman.bda"...
242Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_targetType_2024-02-27_18-04-28PM.log
243
244
245Registering service "targetType" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.emfa.oms.plugin_13.5.1.0.0/patched_metadata/13.5.1.0.0/targetType/33424173/oracle_gop_server.xml" for plugin id as "oracle.sysman.emfa"...
246Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_targetType_2024-02-27_18-04-37PM.log
247
248
249Registering service "targetType" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.xa.oms.plugin_13.5.1.0.0/patched_metadata/13.5.1.0.0/targetType/34241599/oracle_exadata.xml" for plugin id as "oracle.sysman.xa"...
250Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_targetType_2024-02-27_18-04-45PM.log
251
252
253Registering service "targetType" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.vi.oms.plugin_13.5.1.0.0/patched_metadata/13.5.1.0.0/targetType/33424208/oracle_si_server.xml" for plugin id as "oracle.sysman.vi"...
254Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_targetType_2024-02-27_18-05-25PM.log
255
256
257Registering service "chargeback" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.db.oms.plugin_13.5.1.0.0/metadata/chargeback/database.xml" for plugin id as "oracle.sysman.db"...
258Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_chargeback_2024-02-27_18-05-44PM.log
259
260
261Registering service "default_collection" with register file "/u01/app/oracle/middleware/oms/sysman/metadata/default_collection/oldVersions/oracle_emd/13.5.0.v/13.5.0.1/oracle_emd.xml" for plugin id as "core"...
262Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_default_collection_2024-02-27_18-05-52PM.log
263
264
265Registering service "default_collection" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.empa.oms.plugin_13.5.1.0.0/patched_metadata/13.5.1.0.0/default_collection/34003693/siebel_component.xml" for plugin id as "oracle.sysman.empa"...
266Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_default_collection_2024-02-27_18-06-49PM.log
267
268
269Registering service "default_collection" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.si.oms.plugin_13.5.1.0.0/patched_metadata/13.5.1.0.0/default_collection/33567462/network_hw/oracle_si_netswitch.xml" for plugin id as "oracle.sysman.si"...
270Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_default_collection_2024-02-27_18-06-58PM.log
271
272
273Registering service "default_collection" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.am.oms.plugin_13.5.1.0.0/patched_metadata/13.5.1.0.0/default_collection/32941713/oracle_dblra.xml" for plugin id as "oracle.sysman.am"...
274Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_default_collection_2024-02-27_18-08-59PM.log
275
276
277Registering service "default_collection" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.emas.oms.plugin_13.5.1.0.0/patched_metadata/13.5.1.0.0/default_collection/32971629/oracle_oaam.xml" for plugin id as "oracle.sysman.emas"...
278Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_default_collection_2024-02-27_18-09-10PM.log
279
280
281Registering service "default_collection" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.db.oms.plugin_13.5.1.0.0/patched_metadata/13.5.1.0.0/default_collection/32835412/oracle_database.xml" for plugin id as "oracle.sysman.db"...
282Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_default_collection_2024-02-27_18-09-21PM.log
283
284
285Registering service "default_collection" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.bda.oms.plugin_13.5.1.0.0/patched_metadata/13.5.1.0.0/default_collection/32941609/oracle_hadoop_hdfs.xml" for plugin id as "oracle.sysman.bda"...
286Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_default_collection_2024-02-27_18-13-59PM.log
287
288
289Registering service "default_collection" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.emfa.oms.plugin_13.5.1.0.0/patched_metadata/13.5.1.0.0/default_collection/33424173/oracle_gop_server.xml" for plugin id as "oracle.sysman.emfa"...
290Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_default_collection_2024-02-27_18-14-07PM.log
291
292
293Registering service "default_collection" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.xa.oms.plugin_13.5.1.0.0/patched_metadata/13.5.1.0.0/default_collection/34241599/oracle_exadata.xml" for plugin id as "oracle.sysman.xa"...
294Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_default_collection_2024-02-27_18-14-15PM.log
295
296
297Registering service "default_collection" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.vi.oms.plugin_13.5.1.0.0/patched_metadata/13.5.1.0.0/default_collection/33424208/oracle_si_server.xml" for plugin id as "oracle.sysman.vi"...
298Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_default_collection_2024-02-27_18-14-36PM.log
299
300
301Registering service "jobTypes" with register file "/u01/app/oracle/middleware/oms/sysman/metadata/jobTypes/addonsdk/SQLScript.xml" for plugin id as "core"...
302Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_jobTypes_2024-02-27_18-14-50PM.log
303
304
305Registering service "jobTypes" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.smf.oms.plugin_13.5.1.0.0/metadata/jobTypes/host/UMount.xml" for plugin id as "oracle.sysman.smf"...
306Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_jobTypes_2024-02-27_18-15-05PM.log
307
308
309Registering service "jobTypes" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.vt.oms.plugin_13.5.1.0.0/metadata/jobTypes/ovm/provision/RegisterOvmManager.xml" for plugin id as "oracle.sysman.vt"...
310Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_jobTypes_2024-02-27_18-15-13PM.log
311
312
313Registering service "jobTypes" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.emas.oms.plugin_13.5.1.0.0/metadata/jobTypes/internalsdk/FusionMiddlewareProcessControl.xml" for plugin id as "oracle.sysman.emas"...
314Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_jobTypes_2024-02-27_18-15-21PM.log
315
316
317Registering service "jobTypes" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.db.oms.plugin_13.5.1.0.0/metadata/jobTypes/Backup.xml" for plugin id as "oracle.sysman.db"...
318Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_jobTypes_2024-02-27_18-15-29PM.log
319
320
321Registering service "jobTypes" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.xa.oms.plugin_13.5.1.0.0/metadata/jobTypes/ExaWHAutoPurgeSettings.xml" for plugin id as "oracle.sysman.xa"...
322Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_jobTypes_2024-02-27_18-15-45PM.log
323
324
325Registering service "jobTypes" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.vi.oms.plugin_13.5.1.0.0/metadata/jobTypes/ViEditNimbulaSite.xml" for plugin id as "oracle.sysman.vi"...
326Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_jobTypes_2024-02-27_18-15-53PM.log
327
328
329Registering service "systemStencil" with register file "/u01/app/oracle/middleware/oms/sysman/metadata/systemStencil/oldVersions/oracle_emrep/13.5.0.v/13.5.0.2/emSystemStencil.xml" for plugin id as "core"...
330Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_systemStencil_2024-02-27_18-16-02PM.log
331
332
333Registering service "systemStencil" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.empa.oms.plugin_13.5.1.0.0/patched_metadata/13.5.1.0.0/systemStencil/34003693/siebel_component_group.xml" for plugin id as "oracle.sysman.empa"...
334Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_systemStencil_2024-02-27_18-16-10PM.log
335
336
337Registering service "systemStencil" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.am.oms.plugin_13.5.1.0.0/patched_metadata/13.5.1.0.0/systemStencil/32941713/oracle_dblra.xml" for plugin id as "oracle.sysman.am"...
338Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_systemStencil_2024-02-27_18-16-17PM.log
339
340
341Registering service "systemStencil" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.db.oms.plugin_13.5.1.0.0/patched_metadata/13.5.1.0.0/systemStencil/32835412/rac_database.xml" for plugin id as "oracle.sysman.db"...
342Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_systemStencil_2024-02-27_18-16-24PM.log
343
344
345Registering service "systemStencil" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.xa.oms.plugin_13.5.1.0.0/patched_metadata/13.5.1.0.0/systemStencil/34241599/oracle_cloud_vm_cluster.xml" for plugin id as "oracle.sysman.xa"...
346Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_systemStencil_2024-02-27_18-16-33PM.log
347
348
349Registering service "procedures" with register file "/u01/app/oracle/middleware/oms/sysman/metadata/procedures/linuxpatch/RegisterHostToULN.xml" for plugin id as "core"...
350Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_procedures_2024-02-27_18-16-41PM.log
351
352
353Registering service "procedures" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.cfw.oms.plugin_13.5.1.0.0/metadata/procedures/CfwHostProvisioningDP.xml" for plugin id as "oracle.sysman.cfw"...
354Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_procedures_2024-02-27_18-16-49PM.log
355
356
357Registering service "procedures" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.smf.oms.plugin_13.5.1.0.0/metadata/procedures/storage/DeleteTarget.xml" for plugin id as "oracle.sysman.smf"...
358Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_procedures_2024-02-27_18-16-57PM.log
359
360
361Registering service "procedures" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.am.oms.plugin_13.5.1.0.0/metadata/procedures/AmCreateArchivalBackup.xml" for plugin id as "oracle.sysman.am"...
362Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_procedures_2024-02-27_18-17-04PM.log
363
364
365Registering service "procedures" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.emas.oms.plugin_13.5.1.0.0/metadata/procedures/fmwprov/ProvisionMiddleware.xml" for plugin id as "oracle.sysman.emas"...
366Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_procedures_2024-02-27_18-17-13PM.log
367
368
369Registering service "procedures" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.db.oms.plugin_13.5.1.0.0/metadata/procedures/provprereqs.xml" for plugin id as "oracle.sysman.db"...
370Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_procedures_2024-02-27_18-17-23PM.log
371
372
373Registering service "procedures" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.emfa.oms.plugin_13.5.1.0.0/metadata/procedures/FAPostDiscovery_DP.xml" for plugin id as "oracle.sysman.emfa"...
374Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_procedures_2024-02-27_18-17-42PM.log
375
376
377Registering service "procedures" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.ssa.oms.plugin_13.5.1.0.0/metadata/procedures/CloudDeploySoftware.xml" for plugin id as "oracle.sysman.ssa"...
378Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_procedures_2024-02-27_18-17-50PM.log
379
380
381Registering service "procedures" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.xa.oms.plugin_13.5.1.0.0/metadata/procedures/Convert12cto13cDatabaseMachine.xml" for plugin id as "oracle.sysman.xa"...
382Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_procedures_2024-02-27_18-17-59PM.log
383
384
385Registering service "discovery" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.si.oms.plugin_13.5.1.0.0/metadata/discovery/plugin_discovery.xml" for plugin id as "oracle.sysman.si"...
386Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_discovery_2024-02-27_18-18-09PM.log
387
388
389Registering service "discovery" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.db.oms.plugin_13.5.1.0.0/metadata/discovery/db_discovery.xml" for plugin id as "oracle.sysman.db"...
390Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_discovery_2024-02-27_18-18-16PM.log
391
392
393Registering service "discovery" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.xa.oms.plugin_13.5.1.0.0/metadata/discovery/plugin_discovery.xml" for plugin id as "oracle.sysman.xa"...
394Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_discovery_2024-02-27_18-18-23PM.log
395
396
397Registering service "EcmMetadataOnlyRegistration" with register file "/u01/app/oracle/middleware/oms/sysman/metadata/snapshot/host_ecm_metadata.xml" for plugin id as "core"...
398Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_EcmMetadataOnlyRegistration_2024-02-27_18-18-30PM.log
399
400
401Registering service "EcmMetadataOnlyRegistration" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.si.oms.plugin_13.5.1.0.0/metadata/snapshot/network_hw/arista/oracle_si_switch_arista_ssh_ecmdef.xml" for plugin id as "oracle.sysman.si"...
402Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_EcmMetadataOnlyRegistration_2024-02-27_18-18-46PM.log
403
404
405Registering service "EcmMetadataOnlyRegistration" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.emas.oms.plugin_13.5.1.0.0/metadata/snapshot/j2eeapp_ecm_meta.xml" for plugin id as "oracle.sysman.emas"...
406Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_EcmMetadataOnlyRegistration_2024-02-27_18-34-39PM.log
407
408
409Registering service "EcmMetadataOnlyRegistration" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.db.oms.plugin_13.5.1.0.0/metadata/snapshot/db_cdb_pdb_services_ecm_metadata.xml" for plugin id as "oracle.sysman.db"...
410Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_EcmMetadataOnlyRegistration_2024-02-27_18-35-52PM.log
411
412
413Registering service "EcmMetadataOnlyRegistration" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.emfa.oms.plugin_13.5.1.0.0/metadata/snapshot/fusion_apps_j2ee_app_ecm.xml" for plugin id as "oracle.sysman.emfa"...
414Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_EcmMetadataOnlyRegistration_2024-02-27_18-37-39PM.log
415
416
417Registering service "EcmMetadataOnlyRegistration" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.xa.oms.plugin_13.5.1.0.0/metadata/snapshot/oracle_cloud_auto_vm_cluster_ecm.xml" for plugin id as "oracle.sysman.xa"...
418Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_EcmMetadataOnlyRegistration_2024-02-27_18-37-53PM.log
419
420
421Registering service "EcmMetadataOnlyRegistration" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.vi.oms.plugin_13.5.1.0.0/metadata/snapshot/oracle_si_virtual_platform_ecm.xml" for plugin id as "oracle.sysman.vi"...
422Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_EcmMetadataOnlyRegistration_2024-02-27_18-39-18PM.log
423
424
425Registering service "swlib" with register file "/u01/app/oracle/middleware/oms/sysman/metadata/swlib/patch" for plugin id as "core"...
426Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_swlib_2024-02-27_18-40-02PM.log
427
428
429Registering service "swlib" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.smf.oms.plugin_13.5.1.0.0/metadata/swlib/components" for plugin id as "oracle.sysman.smf"...
430Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_swlib_2024-02-27_18-40-14PM.log
431
432
433Registering service "swlib" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.emas.oms.plugin_13.5.1.0.0/metadata/swlib/fmwprov" for plugin id as "oracle.sysman.emas"...
434Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_swlib_2024-02-27_18-40-22PM.log
435
436
437Registering service "swlib" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.db.oms.plugin_13.5.1.0.0/metadata/swlib/dbconfig" for plugin id as "oracle.sysman.db"...
438Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_swlib_2024-02-27_18-40-32PM.log
439
440
441Registering service "swlib" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.ssa.oms.plugin_13.5.1.0.0/metadata/swlib/taas" for plugin id as "oracle.sysman.ssa"...
442Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_swlib_2024-02-27_18-40-51PM.log
443
444
445Registering service "swlib" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.xa.oms.plugin_13.5.1.0.0/metadata/swlib/analytics" for plugin id as "oracle.sysman.xa"...
446Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_swlib_2024-02-27_18-41-00PM.log
447
448
449Registering service "OracleCertifiedTemplate" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.db.oms.plugin_13.5.1.0.0/metadata/monitoringTemplate/oracleCertified/DisableDBShardCollectionsTemplate.xml" for plugin id as "oracle.sysman.db"...
450Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_OracleCertifiedTemplate_2024-02-27_18-41-08PM.log
451
452
453Registering service "TargetPrivilege" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.db.oms.plugin_13.5.1.0.0/metadata/security/TargetPrivilege/dbschema_target_privileges.xml" for plugin id as "oracle.sysman.db"...
454Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_TargetPrivilege_2024-02-27_18-41-17PM.log
455
456
457Registering service "CredStoreMetadata" with register file "/u01/app/oracle/middleware/oms/sysman/metadata/security/CredstoreMetadata/jsonWebKeysCredstore.xml" for plugin id as "core"...
458Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_CredStoreMetadata_2024-02-27_18-41-32PM.log
459
460
461Registering service "CredStoreMetadata" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.am.oms.plugin_13.5.1.0.0/metadata/security/CredstoreMetadata/RATrustedCertificateCredential.xml" for plugin id as "oracle.sysman.am"...
462Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_CredStoreMetadata_2024-02-27_18-41-39PM.log
463
464
465Registering service "CredStoreMetadata" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.db.oms.plugin_13.5.1.0.0/metadata/security/CredstoreMetadata/FPPRestCredentials.xml" for plugin id as "oracle.sysman.db"...
466Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_CredStoreMetadata_2024-02-27_18-41-46PM.log
467
468
469Registering service "CredStoreMetadata" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.xa.oms.plugin_13.5.1.0.0/metadata/security/CredstoreMetadata/ExadataWarehouseStripe.xml" for plugin id as "oracle.sysman.xa"...
470Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_CredStoreMetadata_2024-02-27_18-41-53PM.log
471
472
473Registering service "storeTargetType" with register file "/u01/app/oracle/middleware/oms/sysman/metadata/targetType/oldVersions/host/13.5.0.v/13.5.0.3/host.xml" for plugin id as "core"...
474Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_storeTargetType_2024-02-27_18-42-00PM.log
475
476
477Registering service "storeTargetType" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.empa.oms.plugin_13.5.1.0.0/patched_metadata/13.5.1.0.0/targetType/34003693/siebel_component.xml" for plugin id as "oracle.sysman.empa"...
478Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_storeTargetType_2024-02-27_18-42-12PM.log
479
480
481Registering service "storeTargetType" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.si.oms.plugin_13.5.1.0.0/patched_metadata/13.5.1.0.0/targetType/33567462/network_hw/oracle_si_netswitch.xml" for plugin id as "oracle.sysman.si"...
482Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_storeTargetType_2024-02-27_18-42-20PM.log
483
484
485Registering service "storeTargetType" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.am.oms.plugin_13.5.1.0.0/patched_metadata/13.5.1.0.0/targetType/32941713/oracle_dblra.xml" for plugin id as "oracle.sysman.am"...
486Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_storeTargetType_2024-02-27_18-42-38PM.log
487
488
489Registering service "storeTargetType" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.emas.oms.plugin_13.5.1.0.0/patched_metadata/13.5.1.0.0/targetType/32971629/oracle_oaam.xml" for plugin id as "oracle.sysman.emas"...
490Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_storeTargetType_2024-02-27_18-42-46PM.log
491
492
493Registering service "storeTargetType" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.db.oms.plugin_13.5.1.0.0/patched_metadata/13.5.1.0.0/targetType/32835412/oracle_database.xml" for plugin id as "oracle.sysman.db"...
494Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_storeTargetType_2024-02-27_18-42-54PM.log
495
496
497Registering service "storeTargetType" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.bda.oms.plugin_13.5.1.0.0/patched_metadata/13.5.1.0.0/targetType/32941609/oracle_hadoop_hdfs.xml" for plugin id as "oracle.sysman.bda"...
498Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_storeTargetType_2024-02-27_18-43-18PM.log
499
500
501Registering service "storeTargetType" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.emfa.oms.plugin_13.5.1.0.0/patched_metadata/13.5.1.0.0/targetType/33424173/oracle_gop_server.xml" for plugin id as "oracle.sysman.emfa"...
502Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_storeTargetType_2024-02-27_18-43-25PM.log
503
504
505Registering service "storeTargetType" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.xa.oms.plugin_13.5.1.0.0/patched_metadata/13.5.1.0.0/targetType/34241599/oracle_exadata.xml" for plugin id as "oracle.sysman.xa"...
506Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_storeTargetType_2024-02-27_18-43-33PM.log
507
508
509Registering service "storeTargetType" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.vi.oms.plugin_13.5.1.0.0/patched_metadata/13.5.1.0.0/targetType/33424208/oracle_si_server.xml" for plugin id as "oracle.sysman.vi"...
510Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_storeTargetType_2024-02-27_18-43-42PM.log
511
512
513Registering service "gccompliance" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.db.oms.plugin_13.5.1.0.0/metadata/gccompliance/stig.xml" for plugin id as "oracle.sysman.db"...
514Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_gccompliance_2024-02-27_18-43-50PM.log
515
516
517Registering service "gccompliance" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.vi.oms.plugin_13.5.1.0.0/metadata/gccompliance/exachkVIComplianceContent.xml" for plugin id as "oracle.sysman.vi"...
518Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_gccompliance_2024-02-27_18-48-12PM.log
519
520
521Registering service "compression" with register file "/u01/app/oracle/middleware/oms/sysman/metadata/events/compression/all_target_aur.xml" for plugin id as "core"...
522Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_compression_2024-02-27_18-48-51PM.log
523
524
525Registering service "compression" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.si.oms.plugin_13.5.1.0.0/metadata/events/compression/ap_incident_compression.xml" for plugin id as "oracle.sysman.si"...
526Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_compression_2024-02-27_18-48-58PM.log
527
528
529Registering service "compression" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.emas.oms.plugin_13.5.1.0.0/metadata/events/compression/wls_availability.xml" for plugin id as "oracle.sysman.emas"...
530Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_compression_2024-02-27_18-49-06PM.log
531
532
533Registering service "compression" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.db.oms.plugin_13.5.1.0.0/metadata/events/compression/clusterware_down.xml" for plugin id as "oracle.sysman.db"...
534Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_compression_2024-02-27_18-49-13PM.log
535
536
537Registering service "compression" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.xa.oms.plugin_13.5.1.0.0/metadata/events/compression/incident_compression.xml" for plugin id as "oracle.sysman.xa"...
538Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_compression_2024-02-27_18-49-21PM.log
539
540
541Registering service "assoc" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.emas.oms.plugin_13.5.1.0.0/metadata/assoc/j2ee_application_allowed_pairs.xml" for plugin id as "oracle.sysman.emas"...
542Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_assoc_2024-02-27_18-49-28PM.log
543
544
545Registering service "assoc" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.xa.oms.plugin_13.5.1.0.0/metadata/assoc/exa_cloud_auto_vmcluster_allowed_pairs.xml" for plugin id as "oracle.sysman.xa"...
546Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_assoc_2024-02-27_18-49-35PM.log
547
548
549Registering service "namedQuery" with register file "/u01/app/oracle/middleware/oms/sysman/metadata/namedQuery/core-support-tbsp-timeout-namedQuery.xml" for plugin id as "core"...
550Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_namedQuery_2024-02-27_18-49-43PM.log
551
552
553Registering service "namedQuery" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.xa.oms.plugin_13.5.1.0.0/metadata/namedQuery/analytics_exadata_named_query.xml" for plugin id as "oracle.sysman.xa"...
554Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_namedQuery_2024-02-27_18-49-52PM.log
555
556
557Registering service "CfwServiceAction" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.ssa.oms.plugin_13.5.1.0.0/metadata/cfw/serviceAction/ssa_dbaas_service_actions.xml" for plugin id as "oracle.sysman.ssa"...
558Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_CfwServiceAction_2024-02-27_18-50-00PM.log
559
560
561Registering service "eventSpecificCustmzn" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.emas.oms.plugin_13.5.1.0.0/metadata/events/custmzn/metric_alert_oracle_end_user_service.xml" for plugin id as "oracle.sysman.emas"...
562Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_eventSpecificCustmzn_2024-02-27_18-50-09PM.log
563
564
565Registering service "report" with register file "/u01/app/oracle/middleware/oms/sysman/metadata/reports/CE_Uploading_Significant_Data.xml" for plugin id as "core"...
566Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_report_2024-02-27_18-50-16PM.log
567
568
569Registering service "namedsql" with register file "/u01/app/oracle/middleware/oms/sysman/metadata/namedsql/Compliance_supp_viol_reason_sql.xml" for plugin id as "core"...
570Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_namedsql_2024-02-27_18-50-24PM.log
571
572
573Registering service "runbooks" with register file "/u01/app/oracle/middleware/oms/sysman/metadata/runbooks/core-support-tbsp-timeout.xml" for plugin id as "core"...
574Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_runbooks_2024-02-27_18-50-31PM.log
575
576
577Registering service "SecurityClassManager" with register file "/u01/app/oracle/middleware/oms/sysman/metadata/security/SecurityClass/dashboard_security_class.xml" for plugin id as "core"...
578Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_SecurityClassManager_2024-02-27_18-50-38PM.log
579
580
581Registering service "derivedAssocs" with register file "/u01/app/oracle/middleware/oms/sysman/metadata/derivedAssocs/emSystemAssocRules.xml" for plugin id as "core"...
582Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_derivedAssocs_2024-02-27_18-50-46PM.log
583
584
585Registering service "derivedAssocs" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.si.oms.plugin_13.5.1.0.0/metadata/derivedAssocs/storage/local_filesystems_assoc_rules.xml" for plugin id as "oracle.sysman.si"...
586Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_derivedAssocs_2024-02-27_18-50-54PM.log
587
588
589Registering service "derivedAssocs" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.emas.oms.plugin_13.5.1.0.0/metadata/derivedAssocs/emSystemAssocRules.xml" for plugin id as "oracle.sysman.emas"...
590Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_derivedAssocs_2024-02-27_18-51-03PM.log
591
592
593Registering service "derivedAssocs" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.db.oms.plugin_13.5.1.0.0/metadata/derivedAssocs/dg_assoc_rules.xml" for plugin id as "oracle.sysman.db"...
594Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_derivedAssocs_2024-02-27_18-51-10PM.log
595
596
597Registering service "derivedAssocs" with register file "/u01/app/oracle/middleware/oms/plugins/oracle.sysman.xa.oms.plugin_13.5.1.0.0/metadata/derivedAssocs/oracle_cloud_auto_vm_cluster_assoc_rules.xml" for plugin id as "oracle.sysman.xa"...
598Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_17-13-50PM_SystemPatch_35861059_21/emctl_register_derivedAssocs_2024-02-27_18-51-21PM.log
599
600The job_queue_processes parameter is set to 0 in the repository database. Resetting the job_queue_processes parameter to default value 50 in the repository database to start the OMS. If 50 is not your default value for the job_queue_processes parameter, you should reset it to the preferred value post OMS patching.
601DB user 'sys' is allowed to perform endOP patching operation.
602Starting the oms
603Please monitor log file: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_18-52-18PM_SystemPatch_35861059_147/start_oms_2024-02-27_18-52-18PM.log
604
605
606Complete Summary
607================
608
609
610All log file names referenced below can be accessed from the directory "/u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/2024-02-27_18-52-18PM_SystemPatch_35861059_147"
611
612Patching summary:
613-----------------
614
615Binaries of the following sub-patch(es) have been applied successfully:
616
617                        Featureset                                                                                                                              Sub-patches                                                                                                                                                                   Log file
618                        ----------                                                                                                                              -----------                                                                                                                                                                   --------
619  oracle.sysman.top.oms_13.5.0.0.0   34430509,34706773,35582170,35582217,35854862,35854878,35854889,35854904,35854914,35854930,35854965,35854975,35855005,35855020,35855029   34430509,34706773,35582170,35582217,35854862,35854878,35854889,35854904,35854914,35854930,35854965,35854975,35855005,35855020,35855029_opatch2024-02-27_16-49-35PM_1.log
620
621Deployment summary:
622-------------------
623
624The following artifact(s) have been successfully deployed:
625
626                        Artifacts                                                               Log file
627                        ---------                                                               --------
628                              SQL                rcu_applypatch_original_patch_2024-02-27_17-14-11PM.log
629                              SQL                rcu_applypatch_original_patch_2024-02-27_17-20-43PM.log
630                              SQL                rcu_applypatch_original_patch_2024-02-27_17-21-17PM.log
631                              SQL                rcu_applypatch_original_patch_2024-02-27_17-21-52PM.log
632                              SQL                rcu_applypatch_original_patch_2024-02-27_17-22-26PM.log
633                              SQL                rcu_applypatch_original_patch_2024-02-27_17-22-59PM.log
634                              SQL                rcu_applypatch_original_patch_2024-02-27_17-23-37PM.log
635                              SQL                rcu_applypatch_original_patch_2024-02-27_17-24-11PM.log
636                              SQL                rcu_applypatch_original_patch_2024-02-27_17-24-57PM.log
637                              SQL                rcu_applypatch_original_patch_2024-02-27_17-26-10PM.log
638                              SQL                rcu_applypatch_original_patch_2024-02-27_17-26-45PM.log
639                              SQL                rcu_applypatch_original_patch_2024-02-27_17-27-43PM.log
640                              SQL                rcu_applypatch_original_patch_2024-02-27_17-28-19PM.log
641                              SQL                rcu_applypatch_original_patch_2024-02-27_17-28-56PM.log
642                              SQL                rcu_applypatch_original_patch_2024-02-27_17-29-47PM.log
643                     MRS-commands                      emctl_register_commands_2024-02-27_17-30-29PM.log
644                     MRS-commands                      emctl_register_commands_2024-02-27_17-30-49PM.log
645                     MRS-commands                      emctl_register_commands_2024-02-27_17-30-56PM.log
646                     MRS-commands                      emctl_register_commands_2024-02-27_17-31-03PM.log
647               MRS-omsPropertyDef                emctl_register_omsPropertyDef_2024-02-27_17-31-10PM.log
648               MRS-omsPropertyDef                emctl_register_omsPropertyDef_2024-02-27_17-31-20PM.log
649               MRS-omsPropertyDef                emctl_register_omsPropertyDef_2024-02-27_17-31-27PM.log
650               MRS-omsPropertyDef                emctl_register_omsPropertyDef_2024-02-27_17-31-35PM.log
651                   MRS-targetType                    emctl_register_targetType_2024-02-27_17-31-41PM.log
652                   MRS-targetType                    emctl_register_targetType_2024-02-27_17-33-30PM.log
653                   MRS-targetType                    emctl_register_targetType_2024-02-27_17-33-40PM.log
654                   MRS-targetType                    emctl_register_targetType_2024-02-27_17-37-10PM.log
655                   MRS-targetType                    emctl_register_targetType_2024-02-27_17-37-23PM.log
656                   MRS-targetType                    emctl_register_targetType_2024-02-27_17-37-37PM.log
657                   MRS-targetType                    emctl_register_targetType_2024-02-27_18-04-28PM.log
658                   MRS-targetType                    emctl_register_targetType_2024-02-27_18-04-37PM.log
659                   MRS-targetType                    emctl_register_targetType_2024-02-27_18-04-45PM.log
660                   MRS-targetType                    emctl_register_targetType_2024-02-27_18-05-25PM.log
661                   MRS-chargeback                    emctl_register_chargeback_2024-02-27_18-05-44PM.log
662           MRS-default_collection            emctl_register_default_collection_2024-02-27_18-05-52PM.log
663           MRS-default_collection            emctl_register_default_collection_2024-02-27_18-06-49PM.log
664           MRS-default_collection            emctl_register_default_collection_2024-02-27_18-06-58PM.log
665           MRS-default_collection            emctl_register_default_collection_2024-02-27_18-08-59PM.log
666           MRS-default_collection            emctl_register_default_collection_2024-02-27_18-09-10PM.log
667           MRS-default_collection            emctl_register_default_collection_2024-02-27_18-09-21PM.log
668           MRS-default_collection            emctl_register_default_collection_2024-02-27_18-13-59PM.log
669           MRS-default_collection            emctl_register_default_collection_2024-02-27_18-14-07PM.log
670           MRS-default_collection            emctl_register_default_collection_2024-02-27_18-14-15PM.log
671           MRS-default_collection            emctl_register_default_collection_2024-02-27_18-14-36PM.log
672                     MRS-jobTypes                      emctl_register_jobTypes_2024-02-27_18-14-50PM.log
673                     MRS-jobTypes                      emctl_register_jobTypes_2024-02-27_18-15-05PM.log
674                     MRS-jobTypes                      emctl_register_jobTypes_2024-02-27_18-15-13PM.log
675                     MRS-jobTypes                      emctl_register_jobTypes_2024-02-27_18-15-21PM.log
676                     MRS-jobTypes                      emctl_register_jobTypes_2024-02-27_18-15-29PM.log
677                     MRS-jobTypes                      emctl_register_jobTypes_2024-02-27_18-15-45PM.log
678                     MRS-jobTypes                      emctl_register_jobTypes_2024-02-27_18-15-53PM.log
679                MRS-systemStencil                 emctl_register_systemStencil_2024-02-27_18-16-02PM.log
680                MRS-systemStencil                 emctl_register_systemStencil_2024-02-27_18-16-10PM.log
681                MRS-systemStencil                 emctl_register_systemStencil_2024-02-27_18-16-17PM.log
682                MRS-systemStencil                 emctl_register_systemStencil_2024-02-27_18-16-24PM.log
683                MRS-systemStencil                 emctl_register_systemStencil_2024-02-27_18-16-33PM.log
684                   MRS-procedures                    emctl_register_procedures_2024-02-27_18-16-41PM.log
685                   MRS-procedures                    emctl_register_procedures_2024-02-27_18-16-49PM.log
686                   MRS-procedures                    emctl_register_procedures_2024-02-27_18-16-57PM.log
687                   MRS-procedures                    emctl_register_procedures_2024-02-27_18-17-04PM.log
688                   MRS-procedures                    emctl_register_procedures_2024-02-27_18-17-13PM.log
689                   MRS-procedures                    emctl_register_procedures_2024-02-27_18-17-23PM.log
690                   MRS-procedures                    emctl_register_procedures_2024-02-27_18-17-42PM.log
691                   MRS-procedures                    emctl_register_procedures_2024-02-27_18-17-50PM.log
692                   MRS-procedures                    emctl_register_procedures_2024-02-27_18-17-59PM.log
693                    MRS-discovery                     emctl_register_discovery_2024-02-27_18-18-09PM.log
694                    MRS-discovery                     emctl_register_discovery_2024-02-27_18-18-16PM.log
695                    MRS-discovery                     emctl_register_discovery_2024-02-27_18-18-23PM.log
696  MRS-EcmMetadataOnlyRegistration   emctl_register_EcmMetadataOnlyRegistration_2024-02-27_18-18-30PM.log
697  MRS-EcmMetadataOnlyRegistration   emctl_register_EcmMetadataOnlyRegistration_2024-02-27_18-18-46PM.log
698  MRS-EcmMetadataOnlyRegistration   emctl_register_EcmMetadataOnlyRegistration_2024-02-27_18-34-39PM.log
699  MRS-EcmMetadataOnlyRegistration   emctl_register_EcmMetadataOnlyRegistration_2024-02-27_18-35-52PM.log
700  MRS-EcmMetadataOnlyRegistration   emctl_register_EcmMetadataOnlyRegistration_2024-02-27_18-37-39PM.log
701  MRS-EcmMetadataOnlyRegistration   emctl_register_EcmMetadataOnlyRegistration_2024-02-27_18-37-53PM.log
702  MRS-EcmMetadataOnlyRegistration   emctl_register_EcmMetadataOnlyRegistration_2024-02-27_18-39-18PM.log
703                        MRS-swlib                         emctl_register_swlib_2024-02-27_18-40-02PM.log
704                        MRS-swlib                         emctl_register_swlib_2024-02-27_18-40-14PM.log
705                        MRS-swlib                         emctl_register_swlib_2024-02-27_18-40-22PM.log
706                        MRS-swlib                         emctl_register_swlib_2024-02-27_18-40-32PM.log
707                        MRS-swlib                         emctl_register_swlib_2024-02-27_18-40-51PM.log
708                        MRS-swlib                         emctl_register_swlib_2024-02-27_18-41-00PM.log
709      MRS-OracleCertifiedTemplate       emctl_register_OracleCertifiedTemplate_2024-02-27_18-41-08PM.log
710              MRS-TargetPrivilege               emctl_register_TargetPrivilege_2024-02-27_18-41-17PM.log
711            MRS-CredStoreMetadata             emctl_register_CredStoreMetadata_2024-02-27_18-41-32PM.log
712            MRS-CredStoreMetadata             emctl_register_CredStoreMetadata_2024-02-27_18-41-39PM.log
713            MRS-CredStoreMetadata             emctl_register_CredStoreMetadata_2024-02-27_18-41-46PM.log
714            MRS-CredStoreMetadata             emctl_register_CredStoreMetadata_2024-02-27_18-41-53PM.log
715              MRS-storeTargetType               emctl_register_storeTargetType_2024-02-27_18-42-00PM.log
716              MRS-storeTargetType               emctl_register_storeTargetType_2024-02-27_18-42-12PM.log
717              MRS-storeTargetType               emctl_register_storeTargetType_2024-02-27_18-42-20PM.log
718              MRS-storeTargetType               emctl_register_storeTargetType_2024-02-27_18-42-38PM.log
719              MRS-storeTargetType               emctl_register_storeTargetType_2024-02-27_18-42-46PM.log
720              MRS-storeTargetType               emctl_register_storeTargetType_2024-02-27_18-42-54PM.log
721              MRS-storeTargetType               emctl_register_storeTargetType_2024-02-27_18-43-18PM.log
722              MRS-storeTargetType               emctl_register_storeTargetType_2024-02-27_18-43-25PM.log
723              MRS-storeTargetType               emctl_register_storeTargetType_2024-02-27_18-43-33PM.log
724              MRS-storeTargetType               emctl_register_storeTargetType_2024-02-27_18-43-42PM.log
725                 MRS-gccompliance                  emctl_register_gccompliance_2024-02-27_18-43-50PM.log
726                 MRS-gccompliance                  emctl_register_gccompliance_2024-02-27_18-48-12PM.log
727                  MRS-compression                   emctl_register_compression_2024-02-27_18-48-51PM.log
728                  MRS-compression                   emctl_register_compression_2024-02-27_18-48-58PM.log
729                  MRS-compression                   emctl_register_compression_2024-02-27_18-49-06PM.log
730                  MRS-compression                   emctl_register_compression_2024-02-27_18-49-13PM.log
731                  MRS-compression                   emctl_register_compression_2024-02-27_18-49-21PM.log
732                        MRS-assoc                         emctl_register_assoc_2024-02-27_18-49-28PM.log
733                        MRS-assoc                         emctl_register_assoc_2024-02-27_18-49-35PM.log
734                   MRS-namedQuery                    emctl_register_namedQuery_2024-02-27_18-49-43PM.log
735                   MRS-namedQuery                    emctl_register_namedQuery_2024-02-27_18-49-52PM.log
736             MRS-CfwServiceAction              emctl_register_CfwServiceAction_2024-02-27_18-50-00PM.log
737         MRS-eventSpecificCustmzn          emctl_register_eventSpecificCustmzn_2024-02-27_18-50-09PM.log
738                       MRS-report                        emctl_register_report_2024-02-27_18-50-16PM.log
739                     MRS-namedsql                      emctl_register_namedsql_2024-02-27_18-50-24PM.log
740                     MRS-runbooks                      emctl_register_runbooks_2024-02-27_18-50-31PM.log
741         MRS-SecurityClassManager          emctl_register_SecurityClassManager_2024-02-27_18-50-38PM.log
742                MRS-derivedAssocs                 emctl_register_derivedAssocs_2024-02-27_18-50-46PM.log
743                MRS-derivedAssocs                 emctl_register_derivedAssocs_2024-02-27_18-50-54PM.log
744                MRS-derivedAssocs                 emctl_register_derivedAssocs_2024-02-27_18-51-03PM.log
745                MRS-derivedAssocs                 emctl_register_derivedAssocs_2024-02-27_18-51-10PM.log
746                MRS-derivedAssocs                 emctl_register_derivedAssocs_2024-02-27_18-51-21PM.log
747
748
749Log file location: /u01/app/oracle/middleware/oms/cfgtoollogs/omspatcher/35861059/omspatcher_2024-02-27_16-49-16PM_apply.log
750
751OMSPatcher succeeded.
752
753## 开启 OMS 服务
754[oracle@emcc:/soft/35861059]$ emctl start oms
755Oracle Enterprise Manager Cloud Control 13c Release 5
756Copyright (c) 1996, 2021 Oracle Corporation.  All rights reserved.
757Starting Oracle Management Server...
758WebTier Successfully Started
759Oracle Management Server Already Started
760Oracle Management Server is Up
761JVMD Engine is Up

安装 WLS 补丁

Bash

1[oracle@emcc:/soft/31657681]$ cd /soft
2[oracle@emcc:/soft]$ unzip p36155700_122140_Generic.zip
3[oracle@emcc:/soft]$ cd 36155700
4## 关闭 OMS 所有服务
5[oracle@emcc:/soft/36155700]$ emctl stop oms -all
6Oracle Enterprise Manager Cloud Control 13c Release 5
7Copyright (c) 1996, 2021 Oracle Corporation.  All rights reserved.
8Stopping Oracle Management Server...
9WebTier Successfully Stopped
10Oracle Management Server Successfully Stopped
11AdminServer Successfully Stopped
12Oracle Management Server is Down
13JVMD Engine is Down
14[oracle@emcc:/soft/36155700]$ opatch apply
15Oracle Interim Patch Installer version 13.9.4.2.14
16Copyright (c) 2024, Oracle Corporation.  All rights reserved.
17
18
19Oracle Home       : /u01/app/oracle/middleware/oms
20Central Inventory : /u01/app/oraInventory
21   from           : /u01/app/oracle/middleware/oms/oraInst.loc
22OPatch version    : 13.9.4.2.14
23OUI version       : 13.9.4.0.0
24Log file location : /u01/app/oracle/middleware/oms/cfgtoollogs/opatch/opatch2024-02-28_10-15-37AM_1.log
25
26
27OPatch detects the Middleware Home as "/u01/app/oracle/middleware/oms"
28
29Verifying environment and performing prerequisite checks...
30OPatch continues with these patches:   36155700
31
32Do you want to proceed? [y|n]
33y
34User Responded with: Y
35All checks passed.
36
37Please shutdown Oracle instances running out of this ORACLE_HOME on the local system.
38(Oracle Home = '/u01/app/oracle/middleware/oms')
39
40
41Is the local system ready for patching? [y|n]
42y
43User Responded with: Y
44Backing up files...
45Applying interim patch '36155700' to OH '/u01/app/oracle/middleware/oms'
46ApplySession: Optional component(s) [ oracle.org.apache.commons.commons.compress, 1.9.0.0.0 ] , [ oracle.org.apache.commons.commons.compress, 1.9.0.0.0 ] , [ oracle.fmwconfig.common.wls.shared, 12.2.1.4.0 ] , [ oracle.webservices.wls.jaxrpc, 12.2.1.4.0 ] , [ oracle.wls.server.examples, 12.2.1.4.0 ] , [ oracle.thirdparty.maven, 3.2.5.0.0 ]  not present in the Oracle Home or a higher version is found.
47
48Patching component oracle.org.bouncycastle.bcprov.ext.jdk15on, 1.60.0.0.0...
49
50Patching component oracle.org.bouncycastle.bcprov.ext.jdk15on, 1.60.0.0.0...
51
52Patching component oracle.wls.admin.console.en, 12.2.1.4.0...
53
54Patching component oracle.wls.admin.console.en, 12.2.1.4.0...
55
56Patching component oracle.fmwconfig.common.config.shared, 12.2.1.4.0...
57
58Patching component oracle.rsa.crypto, 12.2.1.4.0...
59
60Patching component oracle.rsa.crypto, 12.2.1.4.0...
61
62Patching component oracle.wls.jrf.tenancy.common.sharedlib, 12.2.1.4.0...
63
64Patching component oracle.wls.jrf.tenancy.common.sharedlib, 12.2.1.4.0...
65
66Patching component oracle.wls.jrf.tenancy.common.sharedlib, 12.2.1.4.0...
67
68Patching component oracle.jse.dms, 12.2.1.4.0...
69
70Patching component oracle.wls.jrf.tenancy.ee.only.sharedlib, 12.2.1.4.0...
71
72Patching component oracle.wls.jrf.tenancy.ee.only.sharedlib, 12.2.1.4.0...
73
74Patching component oracle.com.fasterxml.jackson.jaxrs.jackson.jaxrs.json.provider, 2.9.9.0.0...
75
76Patching component oracle.com.fasterxml.jackson.jaxrs.jackson.jaxrs.json.provider, 2.9.9.0.0...
77
78Patching component oracle.com.fasterxml.jackson.core.jackson.core, 2.9.9.0.0...
79
80Patching component oracle.com.fasterxml.jackson.core.jackson.core, 2.9.9.0.0...
81
82Patching component oracle.org.bouncycastle.bcprov.jdk15on, 1.60.0.0.0...
83
84Patching component oracle.org.bouncycastle.bcprov.jdk15on, 1.60.0.0.0...
85
86Patching component oracle.xerces.xercesimpl, 2.12.0.0.0...
87
88Patching component oracle.xerces.xercesimpl, 2.12.0.0.0...
89
90Patching component oracle.jrf.thirdparty.jee, 12.2.1.4.0...
91
92Patching component oracle.jrf.thirdparty.jee, 12.2.1.4.0...
93
94Patching component oracle.com.fasterxml.jackson.dataformat.jackson.dataformat.xml, 2.9.9.0.0...
95
96Patching component oracle.com.fasterxml.jackson.dataformat.jackson.dataformat.xml, 2.9.9.0.0...
97
98Patching component oracle.commons.collections.commons.collections, 3.2.2.0.0...
99
100Patching component oracle.commons.collections.commons.collections, 3.2.2.0.0...
101
102Patching component oracle.com.fasterxml.jackson.core.jackson.databind, 2.9.9.0.0...
103
104Patching component oracle.com.fasterxml.jackson.core.jackson.databind, 2.9.9.0.0...
105
106Patching component oracle.org.codehaus.groovy.groovy.all, 2.5.6.0.0...
107
108Patching component oracle.org.codehaus.groovy.groovy.all, 2.5.6.0.0...
109
110Patching component oracle.com.fasterxml.jackson.module.jackson.module.jsonschema, 2.9.9.0.0...
111
112Patching component oracle.com.fasterxml.jackson.module.jackson.module.jsonschema, 2.9.9.0.0...
113
114Patching component oracle.com.fasterxml.jackson.module.jackson.module.jaxb.annotations, 2.9.9.0.0...
115
116Patching component oracle.com.fasterxml.jackson.module.jackson.module.jaxb.annotations, 2.9.9.0.0...
117
118Patching component oracle.fmwconfig.common.shared, 12.2.1.4.0...
119
120Patching component oracle.fmwconfig.common.shared, 12.2.1.4.0...
121
122Patching component oracle.wls.evaluation.database, 12.2.1.4.0...
123
124Patching component oracle.wls.evaluation.database, 12.2.1.4.0...
125
126Patching component oracle.toplink.doc, 12.2.1.4.0...
127
128Patching component oracle.wls.jrf.tenancy.common, 12.2.1.4.0...
129
130Patching component oracle.wls.jrf.tenancy.common, 12.2.1.4.0...
131
132Patching component oracle.fmwconfig.common.wls.shared.internal, 12.2.1.4.0...
133
134Patching component oracle.webservices.wls, 12.2.1.4.0...
135
136Patching component org.codehaus.woodstox, 4.2.0.0.0...
137
138Patching component org.codehaus.woodstox, 4.2.0.0.0...
139
140Patching component oracle.org.apache.xmlgraphics.batik.all, 1.11.0.0.1...
141
142Patching component oracle.org.apache.xmlgraphics.batik.all, 1.11.0.0.1...
143
144Patching component oracle.wls.common.nodemanager, 12.2.1.4.0...
145
146Patching component oracle.mysql, 8.0.14.0.0...
147
148Patching component oracle.mysql, 8.0.14.0.0...
149
150Patching component oracle.wls.wlsportable.mod, 12.2.1.4.0...
151
152Patching component oracle.wls.wlsportable.mod, 12.2.1.4.0...
153
154Patching component oracle.com.google.guava.guava, 27.1.0.0.0...
155
156Patching component oracle.com.google.guava.guava, 27.1.0.0.0...
157
158Patching component oracle.log4j.log4j, 2.11.1.0.0...
159
160Patching component oracle.log4j.log4j, 2.11.1.0.0...
161
162Patching component oracle.org.bouncycastle.bcpkix.jdk15on, 1.60.0.0.0...
163
164Patching component oracle.org.bouncycastle.bcpkix.jdk15on, 1.60.0.0.0...
165
166Patching component oracle.wls.security.core.sharedlib, 12.2.1.4.0...
167
168Patching component oracle.webservices.base, 12.2.1.4.0...
169
170Patching component oracle.wls.shared.with.cam, 12.2.1.4.0...
171
172Patching component oracle.jaxb.impl, 2.3.0.0.0...
173
174Patching component oracle.com.fasterxml.jackson.core.jackson.annotations, 2.9.9.0.0...
175
176Patching component oracle.com.fasterxml.jackson.core.jackson.annotations, 2.9.9.0.0...
177
178Patching component oracle.wls.common.cam.wlst, 12.2.1.4.0...
179
180Patching component oracle.wls.security.core, 12.2.1.4.0...
181
182Patching component oracle.wls.security.core, 12.2.1.4.0...
183
184Patching component oracle.datadirect, 12.2.1.4.0...
185
186Patching component oracle.datadirect, 12.2.1.4.0...
187
188Patching component oracle.jrf.toplink, 12.2.1.4.0...
189
190Patching component oracle.org.jboss.logging.jboss.logging.vfinal, 3.3.0.0.0...
191
192Patching component oracle.org.jboss.logging.jboss.logging.vfinal, 3.3.0.0.0...
193
194Patching component oracle.wls.admin.console.nonen, 12.2.1.4.0...
195
196Patching component oracle.wls.admin.console.nonen, 12.2.1.4.0...
197
198Patching component oracle.webservices.jrf, 12.2.1.4.0...
199
200Patching component com.bea.core.xml.xmlbeans, 2.6.0.6.0...
201
202Patching component com.bea.core.xml.xmlbeans, 2.6.0.6.0...
203
204Patching component oracle.com.fasterxml.jackson.jaxrs.jackson.jaxrs.base, 2.9.9.0.0...
205
206Patching component oracle.com.fasterxml.jackson.jaxrs.jackson.jaxrs.base, 2.9.9.0.0...
207
208Patching component oracle.wls.libraries, 12.2.1.4.0...
209
210Patching component oracle.wls.libraries, 12.2.1.4.0...
211
212Patching component oracle.wls.libraries, 12.2.1.4.0...
213
214Patching component oracle.wls.core.app.server, 12.2.1.4.0...
215
216Patching component oracle.wls.core.app.server, 12.2.1.4.0...
217
218Patching component oracle.wls.core.app.server, 12.2.1.4.0...
219
220Patching component oracle.wls.admin.console.en, 12.2.1.4.0...
221
222Patching component oracle.wls.core.app.server, 12.2.1.4.0...
223
224Patching component oracle.wls.core.app.server, 12.2.1.4.0...
225
226Patching component oracle.wls.libraries, 12.2.1.4.0...
227Patch 36155700 successfully applied.
228Sub-set patch [32412974] has become inactive due to the application of a super-set patch [36155700].
229Sub-set patch [32253037] has become inactive due to the application of a super-set patch [36155700].
230Please refer to Doc ID 2161861.1 for any possible further required actions.
231Log file location: /u01/app/oracle/middleware/oms/cfgtoollogs/opatch/opatch2024-02-28_10-15-37AM_1.log
232
233OPatch succeeded.
234## 启动 OMS 所有服务
235[oracle@emcc:/soft/36155700]$ emctl start oms
236Oracle Enterprise Manager Cloud Control 13c Release 5
237Copyright (c) 1996, 2021 Oracle Corporation.  All rights reserved.
238Starting Oracle Management Server...
239WebTier Successfully Started
240Oracle Management Server Successfully Started
241Oracle Management Server is Up
242JVMD Engine is Up
243## 查看补丁
244[oracle@emcc:/soft/36155700]$ opatch lspatches
24536155700;WLS PATCH SET UPDATE 12.2.1.4.240104
24635855029;Oracle Enterprise Manager for Cloud Framework 13c Release 5 Plug-in Update 19 (13.5.1.19) for Oracle Management Service
24735855020;Oracle Enterprise Manager for Oracle Virtual Infrastructure 13c Release 5 Plug-in Update 19 (13.5.1.19) for Oracle Management Service
24835855005;Oracle Enterprise Manager for Systems Infrastructure 13c Release 5 Plug-in Update 19 (13.5.1.19) for Oracle Management Service
24935854975;Oracle Enterprise Manager for Cloud 13c Release 5 Plug-in Update 19 (13.5.1.19) for Oracle Management Service
25035854965;Oracle Enterprise Manager for Exadata 13c Release 5 Plug-in Update 19 (13.5.1.19) for Oracle Management Service
25135854930;Oracle Enterprise Manager for Chargeback and Capacity Planning 13c Release 5 Plug-in Update 19 (13.5.1.19) for Oracle Management Service
25235854914;Oracle Enterprise Manager for Big Data Appliance 13c Release 5 Plug-in Update 19 (13.5.1.19) for Oracle Management Service
25335854904;Oracle Enterprise Manager for Zero Data Loss Recovery Appliance 13c Release 5 Plug-in Update 19 (13.5.1.19) for Oracle Management Service
25435854889;Oracle Enterprise Manager for Oracle Database 13c Release 5 Plug-in Update 19 (13.5.1.19) for Oracle Management Service
25535854878;Oracle Enterprise Manager for Fusion Middleware 13c Release 5 Plug-in Update 19 (13.5.1.19) for Oracle Management Service
25635854862;Oracle Enterprise Manager 13c Release 5 Platform Update 19 (13.5.0.19) for Oracle Management Service
25735582217;Oracle Enterprise Manager for Storage Management 13c Release 5 Plug-in Update 18 (13.5.1.18) for Oracle Management Service
25835582170;Oracle Enterprise Manager for Fusion Applications 13c Release 5 Plug-in Update 18 (13.5.1.18) for Oracle Management Service
25934706773;Oracle Enterprise Manager for Siebel 13c Release 5 Plug-in Update 12 (13.5.1.12) for Oracle Management Service
26034430509;Oracle Enterprise Manager for Virtualization 13c Release 5 Plug-in Update 10 (13.5.1.10) for Oracle Management Service
26131657681;One-off
26234153238;One-off
26335430934;One-off
26432458315;ADF BUNDLE PATCH 12.2.1.4.210203
26531818221;One-off
26631808404;OHS (NATIVE) BUNDLE PATCH 12.2.1.4.200826
26731708760;One-off
26831666198;OPSS Bundle Patch 12.2.1.4.200724
26930152128;One-off
27026626168;One-off
271122146;Bundle patch for Oracle Coherence Version 12.2.1.4.6
272
273OPatch succeeded.

安装 AGENT 补丁

升级 AgentPatcher

Bash

1[oracle@emcc:/home/oracle]$ source ~/.agent
2[oracle@emcc:/home/oracle]$ echo $ORACLE_HOME
3/u01/app/oracle/middleware/agent/agent_13.5.0.0.0
4[oracle@emcc:/home/oracle]$ unzip -q /soft/p33355570_135000_Generic.zip -d $ORACLE_HOME
5[oracle@emcc:/home/oracle]$ agentpatcher version
6AgentPatcher Version: 13.9.5.6.0
7OPlan Version: 12.2.0.1.16
8OsysModel build: Tue Apr 28 18:16:31 PDT 2020
9
10AgentPatcher succeeded.

安装 AGENT 补丁

Bash

1[oracle@emcc:/home/oracle]$ cd /soft/
2[oracle@emcc:/soft]$ unzip -q /soft/p35861076_135000_Generic.zip
3[oracle@emcc:/soft]$ cd /soft/35861076
4## 补丁分析
5[oracle@emcc:/soft/35861076]$ agentpatcher apply -analyze
6AgentPatcher Automation Tool
7Copyright (c) 2021, Oracle Corporation.  All rights reserved.
8
9
10AgentPatcher version : 13.9.5.6.0
11OUI version        : 13.9.4.0.0
12Running from       : /u01/app/oracle/middleware/agent/agent_13.5.0.0.0
13Log file location  : /u01/app/oracle/middleware/agent/agent_13.5.0.0.0/cfgtoollogs/agentpatcher/opatch2024-02-28_10-29-18AM_1.log
14
15AgentPatcher log file: /u01/app/oracle/middleware/agent/agent_13.5.0.0.0/cfgtoollogs/agentpatcher/35861076/agentpatcher_2024-02-28_10-29-19AM_analyze.log
16
17
18
19Prereq "checkComponents" for patch 35861086 passed.
20
21Prereq "checkComponents" for patch 34959954 passed.
22
23Prereq "checkComponents" for patch 34940032 passed.
24
25Prereq "checkComponents" for patch 32968787 passed.
26
27Prereq "checkComponents" for patch 35884578 passed.
28
29Prereq "checkComponents" for patch 35861159 passed.
30
31Prereq "checkComponents" for patch 35565654 passed.
32
33Prereq "checkComponents" for patch 35861100 passed.
34
35Prereq "checkComponents" for patch 36043460 passed.
36
37Prereq "checkComponents" for patch 35861130 passed.
38
39Prereq "checkComponents" for patch 35861168 passed.
40
41Prereq "checkComponents" for patch 35861184 passed.
42
43Prereq "checkComponents" for patch 33586851 passed.
44
45Prereq "checkComponents" for patch 33737099 passed.
46
47Prereq "checkComponents" for patch 36112768 passed.
48
49Running apply prerequisite checks for sub-patch(es) "34940032,35861100,33737099,35861168,35861086,34959954,36112768,35884578,35565654,35861184,33586851,36043460,35861130,32968787,35861159" and Oracle Home "/u01/app/oracle/middleware/agent/agent_13.5.0.0.0"...
50Sub-patch(es) "34940032,35861100,33737099,35861168,35861086,34959954,36112768,35884578,35565654,35861184,33586851,36043460,35861130,32968787,35861159" are successfully analyzed for Oracle Home "/u01/app/oracle/middleware/agent/agent_13.5.0.0.0"
51
52
53Complete Summary
54================
55
56
57All log file names referenced below can be accessed from the directory "/u01/app/oracle/middleware/agent/agent_13.5.0.0.0/cfgtoollogs/agentpatcher/2024-02-28_10-29-18AM_SystemPatch_35861076_1"
58
59Prerequisites analysis summary:
60-------------------------------
61
62The following sub-patch(es) are applicable:
63
64               Featureset                                                                                                                              Sub-patches                                                                                                                                                                   Log file
65               ----------                                                                                                                              -----------                                                                                                                                                                   --------
66  oracle.sysman.top.agent   34940032,35861100,33737099,35861168,35861086,34959954,36112768,35884578,35565654,35861184,33586851,36043460,35861130,32968787,35861159   34940032,35861100,33737099,35861168,35861086,34959954,36112768,35884578,35565654,35861184,33586851,36043460,35861130,32968787,35861159_opatch2024-02-28_10-29-24AM_1.log
67
68
69The following sub-patches are incompatible with components installed in the Agent system:
7035861148,33715858,35861092,35884560,35883342,35861120,35861141,34158650
71
72
73
74++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
75The following patches could not be applied during OPatch execution:
76**********************************************************************************
77  Patch               Reason
78*********           *********
7935861148    The Plugin or Core Component "oracle.sysman.am.agent.plugin with version 13.5.1.0.0" for which the patch is intended is not deployed in your Enterprise Manager system.
8033715858    The Plugin or Core Component "oracle.sysman.bda.agent.plugin with version 13.5.1.0.0" for which the patch is intended is not deployed in your Enterprise Manager system.
8135861092    The Plugin or Core Component "oracle.sysman.db.agent.plugin with version 13.5.1.0.0" for which the patch is intended is not deployed in your Enterprise Manager system.
8235884560    The Plugin or Core Component "oracle.sysman.empa.agent.plugin with version 13.5.1.0.0" for which the patch is intended is not deployed in your Enterprise Manager system.
8335883342    The Plugin or Core Component "oracle.sysman.vt.agent.plugin with version 13.5.1.0.0" for which the patch is intended is not deployed in your Enterprise Manager system.
8435861120    The Plugin or Core Component "oracle.sysman.xa.agent.plugin with version 13.5.1.0.0" for which the patch is intended is not deployed in your Enterprise Manager system.
8535861141    The Plugin or Core Component "oracle.sysman.vi.agent.plugin with version 13.5.1.0.0" for which the patch is intended is not deployed in your Enterprise Manager system.
8634158650    The Plugin or Core Component "oracle.sysman.emfa.agent.plugin with version 13.5.1.0.0" for which the patch is intended is not deployed in your Enterprise Manager system.
87++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
88Log file location: /u01/app/oracle/middleware/agent/agent_13.5.0.0.0/cfgtoollogs/agentpatcher/35861076/agentpatcher_2024-02-28_10-29-19AM_analyze.log
89
90AgentPatcher succeeded.
91
92## 正式打补丁
93[oracle@emcc:/soft/35861076]$ emctl stop agent
94Oracle Enterprise Manager Cloud Control 13c Release 5
95Copyright (c) 1996, 2021 Oracle Corporation.  All rights reserved.
96Stopping agent ... stopped.
97[oracle@emcc:/soft/35861076]$ agentpatcher apply
98AgentPatcher Automation Tool
99Copyright (c) 2021, Oracle Corporation.  All rights reserved.
100
101
102AgentPatcher version : 13.9.5.6.0
103OUI version        : 13.9.4.0.0
104Running from       : /u01/app/oracle/middleware/agent/agent_13.5.0.0.0
105Log file location  : /u01/app/oracle/middleware/agent/agent_13.5.0.0.0/cfgtoollogs/agentpatcher/opatch2024-02-28_10-32-43AM_1.log
106
107AgentPatcher log file: /u01/app/oracle/middleware/agent/agent_13.5.0.0.0/cfgtoollogs/agentpatcher/35861076/agentpatcher_2024-02-28_10-32-44AM_deploy.log
108
109
110
111Prereq "checkComponents" for patch 35861086 passed.
112
113Prereq "checkComponents" for patch 34959954 passed.
114
115Prereq "checkComponents" for patch 34940032 passed.
116
117Prereq "checkComponents" for patch 32968787 passed.
118
119Prereq "checkComponents" for patch 35884578 passed.
120
121Prereq "checkComponents" for patch 35861159 passed.
122
123Prereq "checkComponents" for patch 35565654 passed.
124
125Prereq "checkComponents" for patch 35861100 passed.
126
127Prereq "checkComponents" for patch 36043460 passed.
128
129Prereq "checkComponents" for patch 35861130 passed.
130
131Prereq "checkComponents" for patch 35861168 passed.
132
133Prereq "checkComponents" for patch 35861184 passed.
134
135Prereq "checkComponents" for patch 33586851 passed.
136
137Prereq "checkComponents" for patch 33737099 passed.
138
139Prereq "checkComponents" for patch 36112768 passed.
140
141Running apply prerequisite checks for sub-patch(es) "34940032,35861100,33737099,35861168,35861086,34959954,36112768,35884578,35565654,35861184,33586851,36043460,35861130,32968787,35861159" and Oracle Home "/u01/app/oracle/middleware/agent/agent_13.5.0.0.0"...
142Sub-patch(es) "34940032,35861100,33737099,35861168,35861086,34959954,36112768,35884578,35565654,35861184,33586851,36043460,35861130,32968787,35861159" are successfully analyzed for Oracle Home "/u01/app/oracle/middleware/agent/agent_13.5.0.0.0"
143
144To continue, AgentPatcher will do the following:
145[Patch and deploy artifacts]   :
146
147
148Do you want to proceed? [y|n]
149y
150User Responded with: Y
151
152Applying sub-patch(es) "32968787,33586851,33737099,34940032,34959954,35565654,35861086,35861100,35861130,35861159,35861168,35861184,35884578,36043460,36112768"
153Please monitor log file: /u01/app/oracle/middleware/agent/agent_13.5.0.0.0/cfgtoollogs/opatch/opatch2024-02-28_10-32-49AM_1.log
154
155
156Complete Summary
157================
158
159
160All log file names referenced below can be accessed from the directory "/u01/app/oracle/middleware/agent/agent_13.5.0.0.0/cfgtoollogs/agentpatcher/2024-02-28_10-32-43AM_SystemPatch_35861076_1"
161
162Patching summary:
163-----------------
164
165Binaries of the following sub-patch(es) have been applied successfully:
166
167                          Featureset                                                                                                                              Sub-patches                                                                                                                                                                   Log file
168                          ----------                                                                                                                              -----------                                                                                                                                                                   --------
169  oracle.sysman.top.agent_13.5.0.0.0   32968787,33586851,33737099,34940032,34959954,35565654,35861086,35861100,35861130,35861159,35861168,35861184,35884578,36043460,36112768   32968787,33586851,33737099,34940032,34959954,35565654,35861086,35861100,35861130,35861159,35861168,35861184,35884578,36043460,36112768_opatch2024-02-28_10-32-49AM_1.log
170
171
172The following sub-patches are incompatible with components installed in the Agent system:
17335861148,33715858,35861092,35884560,35883342,35861120,35861141,34158650
174
175
176
177++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
178The following patches could not be applied during OPatch execution:
179**********************************************************************************
180  Patch               Reason
181*********           *********
18235861148    The Plugin or Core Component "oracle.sysman.am.agent.plugin with version 13.5.1.0.0" for which the patch is intended is not deployed in your Enterprise Manager system.
18333715858    The Plugin or Core Component "oracle.sysman.bda.agent.plugin with version 13.5.1.0.0" for which the patch is intended is not deployed in your Enterprise Manager system.
18435861092    The Plugin or Core Component "oracle.sysman.db.agent.plugin with version 13.5.1.0.0" for which the patch is intended is not deployed in your Enterprise Manager system.
18535884560    The Plugin or Core Component "oracle.sysman.empa.agent.plugin with version 13.5.1.0.0" for which the patch is intended is not deployed in your Enterprise Manager system.
18635883342    The Plugin or Core Component "oracle.sysman.vt.agent.plugin with version 13.5.1.0.0" for which the patch is intended is not deployed in your Enterprise Manager system.
18735861120    The Plugin or Core Component "oracle.sysman.xa.agent.plugin with version 13.5.1.0.0" for which the patch is intended is not deployed in your Enterprise Manager system.
18835861141    The Plugin or Core Component "oracle.sysman.vi.agent.plugin with version 13.5.1.0.0" for which the patch is intended is not deployed in your Enterprise Manager system.
18934158650    The Plugin or Core Component "oracle.sysman.emfa.agent.plugin with version 13.5.1.0.0" for which the patch is intended is not deployed in your Enterprise Manager system.
190++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
191Log file location: /u01/app/oracle/middleware/agent/agent_13.5.0.0.0/cfgtoollogs/agentpatcher/35861076/agentpatcher_2024-02-28_10-32-44AM_deploy.log
192
193AgentPatcher succeeded.
194## 查看 agent 是否启动
195[oracle@emcc:/soft/35861076]$ emctl status agent
196Oracle Enterprise Manager Cloud Control 13c Release 5
197Copyright (c) 1996, 2021 Oracle Corporation.  All rights reserved.
198---------------------------------------------------------------
199Agent Version          : 13.5.0.0.0
200OMS Version            : 13.5.0.0.0
201Protocol Version       : 12.1.0.1.0
202Agent Home             : /u01/app/oracle/middleware/agent/agent_inst
203Agent Log Directory    : /u01/app/oracle/middleware/agent/agent_inst/sysman/log
204Agent Binaries         : /u01/app/oracle/middleware/agent/agent_13.5.0.0.0
205Core JAR Location      : /u01/app/oracle/middleware/agent/agent_13.5.0.0.0/jlib
206Agent Process ID       : 28000
207Parent Process ID      : 27909
208Agent URL              : https://emcc:3872/emd/main/
209Local Agent URL in NAT : https://emcc:3872/emd/main/
210Repository URL         : https://emcc:4903/empbs/upload
211Started at             : 2024-02-28 10:36:24
212Started by user        : oracle
213Operating System       : Linux version 3.10.0-1160.el7.x86_64 (amd64)
214Number of Targets      : 36
215Last Reload            : (none)
216Last successful upload                       : 2024-02-28 10:37:04
217Last attempted upload                        : 2024-02-28 10:37:04
218Total Megabytes of XML files uploaded so far : 0.02
219Number of XML files pending upload           : 0
220Size of XML files pending upload(MB)         : 0
221Available disk space on upload filesystem    : 84.21%
222Collection Status                            : Collections enabled
223Heartbeat Status                             : Ok
224Last attempted heartbeat to OMS              : 2024-02-28 10:37:40
225Last successful heartbeat to OMS             : 2024-02-28 10:37:40
226Next scheduled heartbeat to OMS              : 2024-02-28 10:38:40
227
228---------------------------------------------------------------
229Agent is Running and Ready
230
231## 查看补丁
232[oracle@emcc:/home/oracle]$ opatch lspatches
23336112768;Oracle Enterprise Manager for Oracle Virtual Infrastructure 13c Release 5 Plug-in Update 19 (13.5.1.19) for Oracle Management Agent (Discovery)
23436043460;Oracle Enterprise Manager for Fusion Middleware 13c Release 5 Plug-in Update 19 (13.5.1.19) for Oracle Management Agent (Discovery)
23535884578;Oracle Enterprise Manager for Siebel 13c Release 5 Plug-in Update 19 (13.5.1.19) for Oracle Management Agent (Discovery)
23635861184;Oracle Enterprise Manager for Fusion Middleware 13c Release 5 Plug-in Update 19 (13.5.1.19) for Oracle Management Agent
23735861168;Oracle Enterprise Manager for EMREP 13c Release 5 Plug-in Update 19 (13.5.0.19) for Oracle Management Agent
23835861159;Oracle Enterprise Manager for Oracle Home 13c Release 5 Plug-in Update 19 (13.5.0.19) for Oracle Management Agent
23935861130;Oracle Enterprise Manager for Oracle Database 13c Release 5 Plug-in Update 19 (13.5.1.19) for Oracle Management Agent (Discovery)
24035861100;Oracle Enterprise Manager for Systems Infrastructure 13c Release 5 Plug-in Update 19 (13.5.1.19) for Oracle Management Agent
24135861086;Oracle Enterprise Manager 13c Release 5 Platform Update 19 (13.5.0.19) for Oracle Management Agent
24235565654;Oracle Enterprise Manager for Exadata 13c Release 5 Plug-in Update 17 (13.5.1.17) for Oracle Management Agent (Discovery)
24334959954;System patch Tracking bug to repackage Consolidated JDBC patch -ucp.jar from 19.17 + 19.17 version one-off patch for the bug 33199858 as 13.5 EM Agent patch
24434940032;System patch Tracking bug to repackage Consolidated JDBC patch ojdbc8.jar from 19.17 + 19.17 version one-off patch for the bug 32752229 as 13.5 EM Agent patch
24533737099;Oracle Enterprise Manager for Systems Infrastructure 13c Release 5 Plug-in Update 4 (13.5.1.4) for Oracle Management Agent (Discovery)
24633586851;Oracle Enterprise Manager for Fusion Applications 13c Release 5 Plug-in Update 3 (13.5.1.3) for Oracle Management Agent (Discovery)
24732968787;Oracle Enterprise Manager for Big Data Appliance 13c Release 5 Plug-in Update 1 (13.5.1.1) for Oracle Management Agent (Discovery)
24832574981;
24932313251;
25032302527;
251
252OPatch succeeded.

检查 OMS 服务

Bash

1[oracle@emcc:/home/oracle]$ source ~/.oms
2[oracle@emcc:/home/oracle]$ emctl status oms
3Oracle Enterprise Manager Cloud Control 13c Release 5
4Copyright (c) 1996, 2021 Oracle Corporation.  All rights reserved.
5WebTier is Up
6Oracle Management Server is Up
7JVMD Engine is Up
8[oracle@emcc:/home/oracle]$ emctl status oms -details
9Oracle Enterprise Manager Cloud Control 13c Release 5
10Copyright (c) 1996, 2021 Oracle Corporation.  All rights reserved.
11Console Server Host        : emcc
12HTTP Console Port          : 7788
13HTTPS Console Port         : 7803
14HTTP Upload Port           : 4889
15HTTPS Upload Port          : 4903
16EM Instance Home           : /u01/app/oracle/middleware/gc_inst/em/EMGC_OMS1
17OMS Log Directory Location : /u01/app/oracle/middleware/gc_inst/em/EMGC_OMS1/sysman/log
18OMS is not configured with SLB or virtual hostname
19Agent Upload is locked.
20OMS Console is locked.
21Active CA ID: 1
22Console URL: https://emcc:7803/em
23Upload URL: https://emcc:4903/empbs/upload
24
25WLS Domain Information
26Domain Name            : GCDomain
27Admin Server Host      : emcc
28Admin Server HTTPS Port: 7102
29Admin Server is RUNNING
30
31Oracle Management Server Information
32Managed Server Instance Name: EMGC_OMS1
33Oracle Management Server Instance Host: emcc
34WebTier is Up
35Oracle Management Server is Up
36JVMD Engine is Up

网页访问

访问网页访问链接：https://192.168.6.66:7803/em

接下文：

参考文档：

往期精彩文章

Oracle 一键巡检自动生成 Word 报告
 Oracle 一键安装合集
 Oracle一键安装脚本的 21 个疑问与解答
 Oracle一键巡检脚本的 21 个疑问与解答
 全网首发：Oracle 23ai 一键安装脚本（非 RPM）
Oracle 19C 最新 RU 补丁 19.24 ，一键安装！
Oracle Linux 7.9 一键安装 Oracle 19C
RedHat 9.4(aarch64) 一键安装 Oracle 19C
openEuler 22.03 LTS SP4 一键安装 Oracle 19C RAC
RHEL 7.9 一键安装 Oracle 19C 19.23 RAC
Oracle DataGuard GAP 修复手册
 优化 Oracle：最佳实践与开发规范
 DBA 必备：Linux 软件源配置全攻略
 Linux 一键配置时钟同步全攻略

EMCC 13.5 完整安装详细版 - DBA 学习之路
